神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (09-007) - LABEL, NAME- PLATE (FOR VIETNAM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
242 次

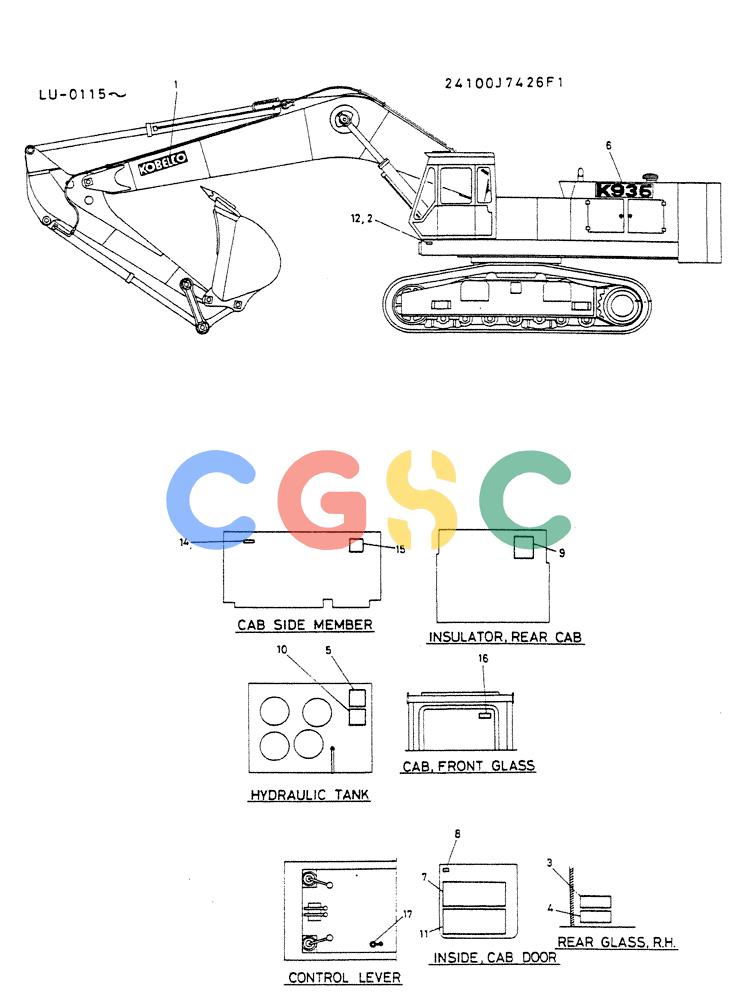

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7426F1 | [1] | LABEL, NAME-PLATE | |
| 1. | 2432J690 | [8] | LABEL | KOB |
| 2. | 2432T1530 | [1] | IDENTITY PLATE | KOBLABEL |
| 3. | 2432N868 | [1] | PLATE, INSTAL | |
| 4. | 2432N970 | [1] | PLATE, INSTAL | |
| 5. | 2432P639 | [2] | PLATE, CAUTION | |
| 6. | 2432N749 | [2] | NAME-PLATE | NAME-PLATE |
| 7. | 2432J1647 | [1] | CHART, LUBRICATION | |
| 8. | 2432T1090 | [1] | LABEL | |
| 9. | 2432P630 | [1] | PLATE, CAUTION | |
| 10. | 2432P1379 | [2] | PLATE, CAUTION | |
| 11. | 2432J1648 | [1] | CHART, LUBRICATION | |
| 12. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 14. | 2432T1089 | [1] | LABEL | |
| 15. | 2432T2886 | [1] | PLATE, CAUTION | |
| 16. | 2432T1091 | [1] | PLATE, CAUTION | |
| 17. | 2432T1093 | [1] | WAPPEN | |
