纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-002) - COUNTERWEIGHT ASSY, P/N YT60C00008P1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
886 次

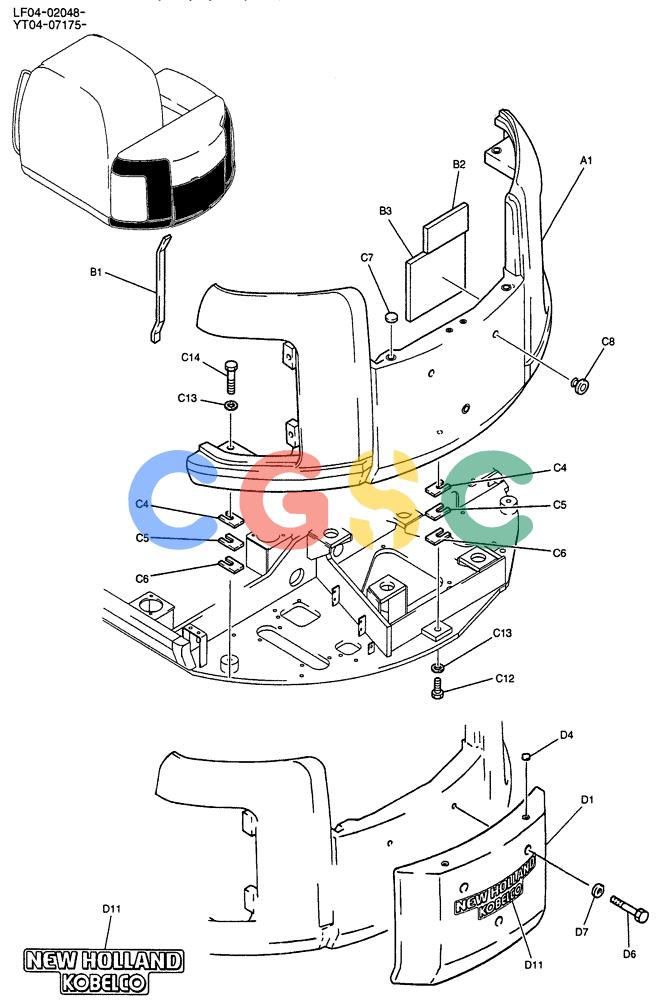

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YT60C00008P1 | [1] | COUNTERWEIGHT | KOB |
| . . | YT60C00004F2 | [1] | COUNTERWEIGHT GROUP | |
| B1. | YT60C01004D1 | [1] | RUBBER | KOB |
| B2. | YT60C01017P1 | [1] | INSULATING PANEL | KOB |
| B3. | YT60C01018P1 | [1] | INSULATING PANEL | KOB |
| . . | YT60C00003F3 | [1] | COUNTERWEIGHT INSTAL | |
| C4. | YT60C01006D1 | [3] | SHIM,3.2mm Thk | KOB(3.2) |
| C5. | YT60C01006D2 | [3] | SHIM,20.mm Thk | KOB(2.0) |
| C6. | YT60C01006D3 | [3] | SHIM,1.0mm Thk | KOB(1.0) |
| C7. | LE60C01028P1 | [2] | PLATE | KOB |
| C8. | YT60C01007P1 | [3] | PLUG | KOB |
| C12. | HS18C20075G1 | [1] | SCREW | KOBCAP |
| C13. | HY26Y21050G4 | [3] | WASHER | KOB |
| C14. | HS18C20135G1 | [2] | BOLT | KOBCAP |
| . . | YT60C00009F7 | [1] | COUNTERWEIGHT INSTAL (GAIN) | |
| D1. | YT60C00006P1 | [1] | COUNTERWEIGHT | KOB |
| D6. | HS18C20145G3 | [3] | SCREW | KOBCAP |
| D11. | PW22T00218P1 | [1] | LABEL | KOBNAME PLATE |
