神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (09-011) - LABEL, NAME PLATE (FOR NORWAY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
210 次

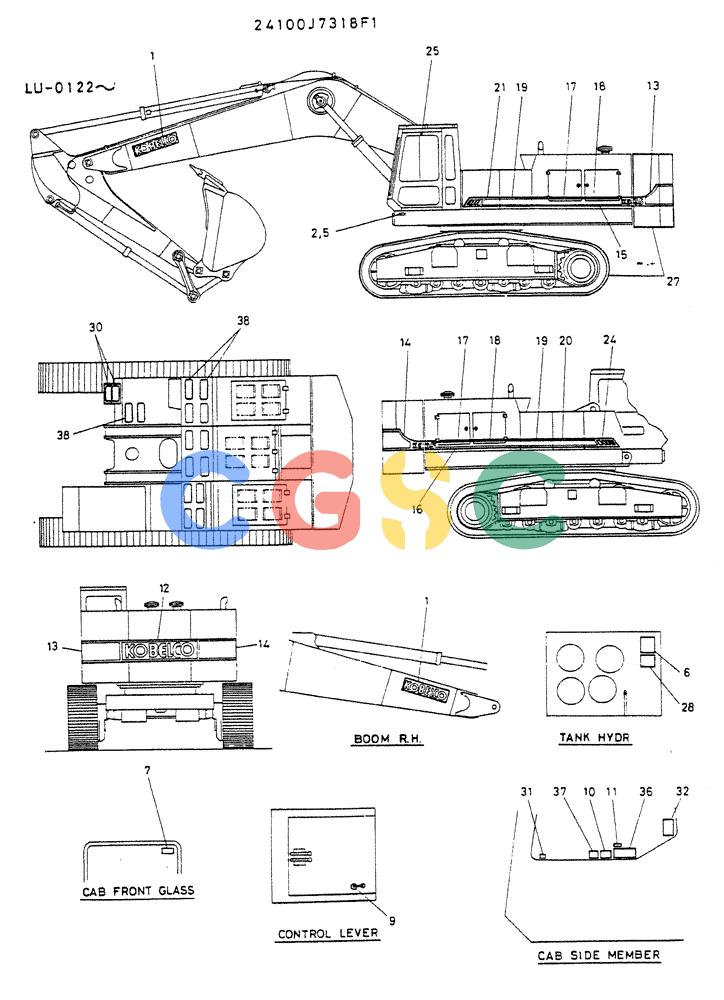

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7318F1 | [1] | LABEL,NAME PLATE (FOR NORWAY) | |
| 1. | 2432J690 | [2] | LABEL | KOB |
| 2. | 2432T1530 | [1] | IDENTITY PLATE | KOB |
| 5. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 6. | 2432T885 | [2] | PLATE PLATE | PLATE PLATE |
| 7. | 2432T892 | [1] | LABEL | KOB |
| 9. | 2432T1017 | [1] | LABEL | LABEL |
| 10. | 2432T1215 | [1] | DATA PLAQUE | KOBDecal, Caution - To prevent accidents and bodily injury … |
| 11. | 2432T959 | [2] | LABEL | KOB |
| 12. | 2432X269 | [1] | LABEL | KOB |
| 13. | 2432X297 | [1] | LABEL | KOB |
| 14. | 2432X296 | [1] | LABEL | KOB |
| 15. | 2432J1617 | [1] | NAME-PLATE | NAME-PLATE |
| 16. | 2432J1616 | [1] | NAME-PLATE | NAME-PLATE |
| 17. | 2432J1105 | [2] | LABEL | LABEL |
| 18. | 2432J1107 | [2] | LABEL | LABEL |
| 19. | 2432J1106 | [2] | LABEL | LABEL |
| 20. | 2432J1108 | [1] | LABEL | LABEL |
| 21. | 2432J1631 | [1] | LABEL | |
| 24. | 2432J1112 | [1] | LABEL | LABEL |
| 25. | 2432T1142 | [1] | LABEL | KOB |
| 27. | 24105P1059 | [1] | DIAGRAM | |
| 28. | 2432T1231 | [2] | DATA PLAQUE | KOBDecal, Warning - |
| 30. | 2427Z329 | [2] | SHEET | KOBAnti-Slip (300x150mm) |
| 31. | 2432T1753 | [1] | LABEL | KOBDecal, Kobelco Operation Superseded by part number: YN20T01407P1 |
| 32. | 2432T1754 | [1] | LABEL | LABEL |
| 33. | 2432J1175 | [1] | LABEL | |
| 35. | 2432T2196 | [2] | BAND | |
| 36. | 2432N578 | [1] | PLATE | KOB |
| 37. | 2432T1426 | [1] | PLATE, CAUTION | PLATE, CAUTION |
| 38. | 2427Z329D2 | [14] | SHEET | KOBAnti-Slip (400x150mm) |
