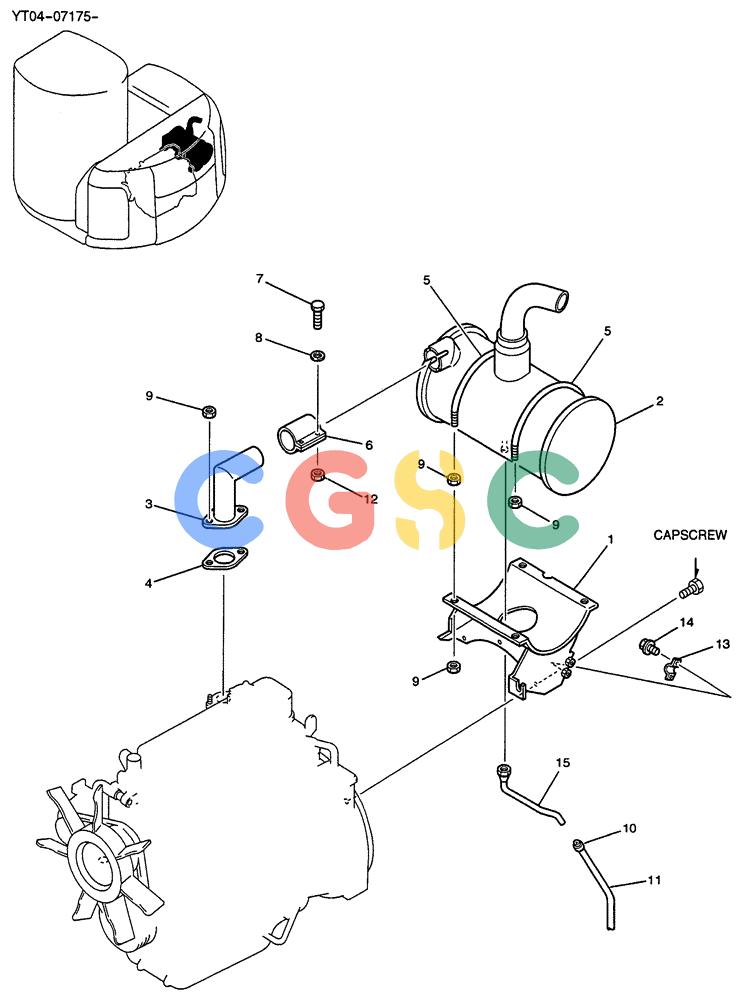

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-010) - MUFFLER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT12P00008F1 | [1] | MUFFLER ASSY | |
| 1. | YT12P01021P1 | [1] | U-BRACKET | KOB |
| 2. | YT12P00010P1 | [1] | MUFFLER | KOB |
| 3. | YT12P01003P1 | [1] | TUBE | KOBEXHAUST |
| 5. | YT12P01017P1 | [2] | U-BOLT | KOB |
| 6. | YT12P01007P1 | [1] | CLAMP | KOBASSY |
| 7. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 8. | ZW16P10000 | [2] | WASHER | KOBID 05 x OD 10 x Th 2.0mm |
| 9. | ZN18C08007 | [10] | NUT | KOBM08x1.25mm |
| 10. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
| 11. | HX11Y07050DX | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 12. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 13. | YT12P01005P1 | [1] | CLAMP | KOB |
| 14. | ZM66C06020 | [2] | BOLT | KOBSEMS |
| 15. | YT12P01009P1 | [1] | TUBE | KOB |
| 4. | YR02P00005S002 | [1] | GASKET | KOBISUZU "Engine Parts" Superseded by part number: VI8970161010 |
