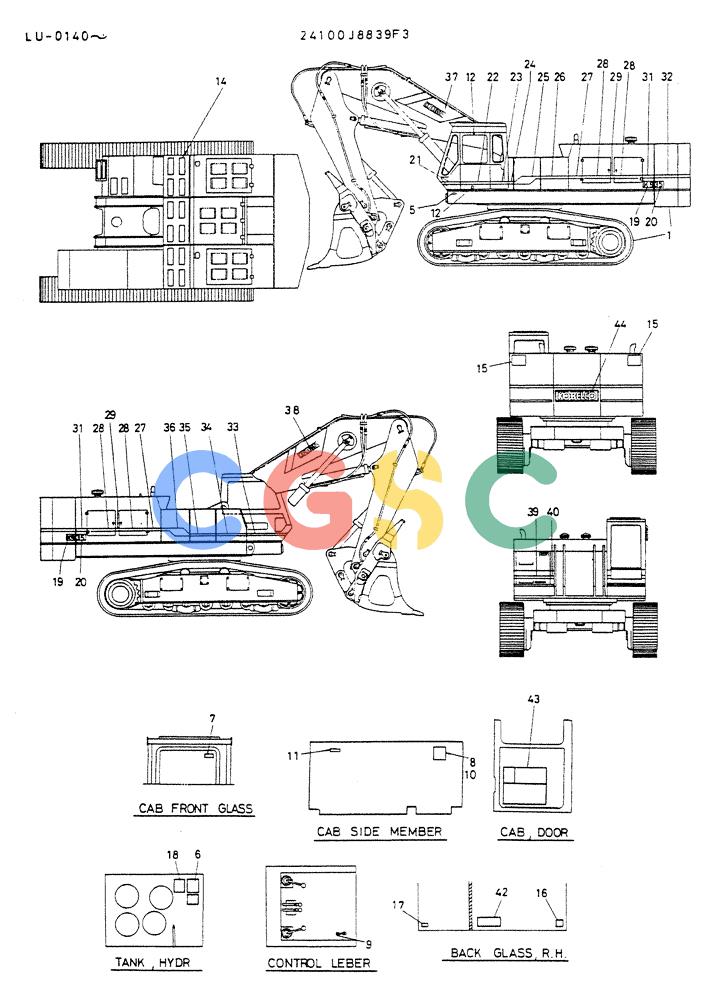

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (09-015) - LABEL, NAME PLATE P/N 24100J8839F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
389 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J8839F3 | [1] | LABEL, NAME-PLATE | |
| 1. | 24105J3408 | [1] | DIAGRAM, PAINTING | |
| 5. | 4020264 | [2] | RIVET | |
| 6. | 2432T1028 | [2] | PLATE, CAUTION | |
| 7. | 2432T892 | [1] | LABEL | KOBCAUTION |
| 8. | 2432T1548 | [1] | PLATE, CAUTION | |
| 9. | 2432T1017 | [1] | LABEL | LABEL |
| 10. | 2432T1215 | [1] | DATA PLAQUE | KOBDecal, Caution - To prevent accidents and bodily injury … |
| 11. | 2432T959 | [1] | LABEL | KOBPLATE, CAUTION |
| 12. | 2432T1142 | [2] | LABEL | KOB |
| 14. | 2427Z329D2 | [14] | SHEET | KOBAnti-Slip (400x150mm) |
| 15. | 2432N1097 | [2] | LABEL | KOBDecal, Danger - Stay out of the swing area. |
| 16. | 2432T1754 | [1] | LABEL | LABEL |
| 17. | 2432T1753 | [1] | LABEL | KOBDecal, Kobelco Operation Superseded by part number: YN20T01407P1 |
| 18. | 2432T1780 | [2] | LABEL | |
| 19. | 2432N1598 | [2] | LABEL | |
| 20. | 2432N1599 | [2] | LABEL | |
| 21. | 2432T3271 | [1] | LABEL | |
| 22. | 2432T3161D7 | [1] | LABEL | |
| 23. | 2432T3161D8 | [1] | LABEL | |
| 24. | 2432T336401 | [1] | LABEL | |
| 25. | 2432T3365 | [1] | LABEL | |
| 26. | 2432T3364D2 | [1] | LABEL | |
| 27. | 2432T3364D3 | [2] | LABEL | |
| 28. | 2432T3364D4 | [4] | LABEL | |
| 29. | 2432T3364D5 | [2] | LABEL | |
| 31. | 2432T3364D6 | [2] | LABEL | |
| 32. | 2432T3364D7 | [1] | LABEL | |
| 33. | 2432T3274 | [1] | LABEL | |
| 34. | 2432T3364D8 | [1] | LABEL | |
| 35. | 2432T3364D9 | [1] | LABEL | |
| 36. | 2432T3366 | [1] | LABEL | |
| 37. | 2432T3353 | [1] | LABEL | |
| 38. | 2432T3352 | [1] | LABEL | |
| 39. | 2432T3364D10 | [1] | LABEL | |
| 40. | 2432T3364D11 | [1] | LABEL | |
| 42. | 2432N970 | [1] | PLATE, INSTRUCTION | |
| 43. | 2432J1696 | [1] | LABEL | |
| 44. | 2432J1784 | [1] | LABEL | |
