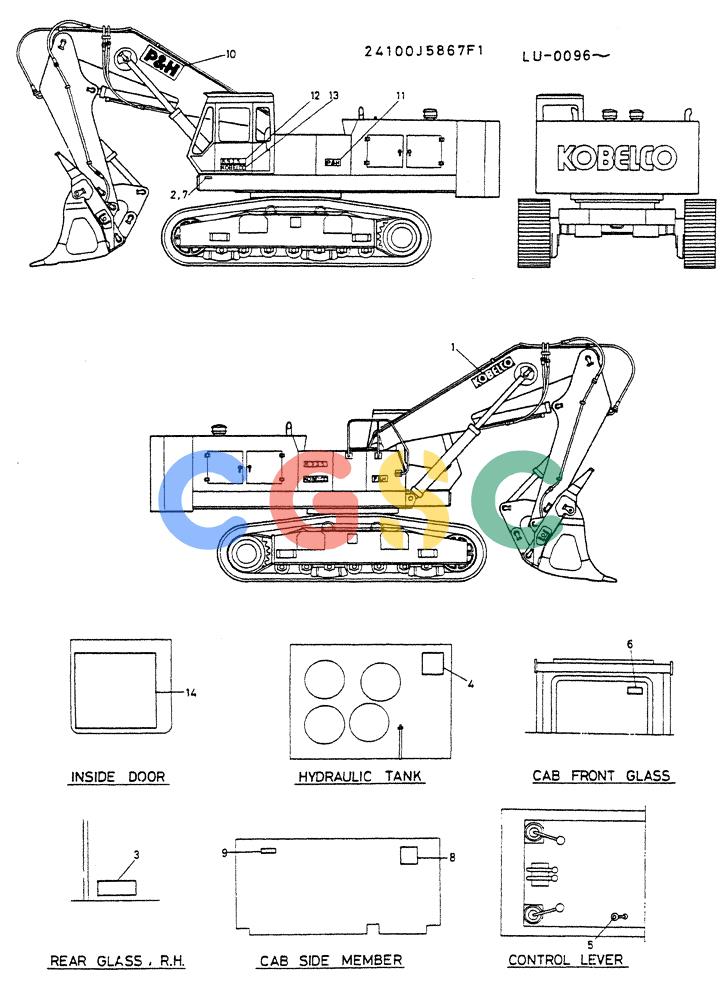

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (09-016) - LABEL, NAME PLATE P/N 24100J5867F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
949 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5867F1 | [1] | LABEL,NAME-PLATE | |
| 1. | 2432J681 | [1] | NAME-PLATE | NAME-PLATE |
| 2. | 2432T1530 | [1] | IDENTITY PLATE | KOBWAPPEN |
| 3. | 2432N970 | [1] | PLATE, INSTRUCTION | |
| 4. | 2432T1028 | [2] | PLATE, CAUTION | |
| 5. | 2432T1017 | [1] | LABEL | LABEL |
| 6. | 2432T892 | [1] | LABEL | KOB |
| 7. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 8. | 2432T1548 | [1] | PLATE, CAUTION | |
| 9. | 2432T959 | [1] | LABEL | KOB |
| 10. | 2432J848 | [1] | NAME-PLATE | |
| 11. | 2432N988 | [2] | NAME-PLATE | |
| 12. | 2432N987 | [2] | NAmE-PLATE | |
| 13. | 2432J881 | [2] | NAME-PLATE | |
| 14. | 2432J1176 | [1] | LABEL | |
