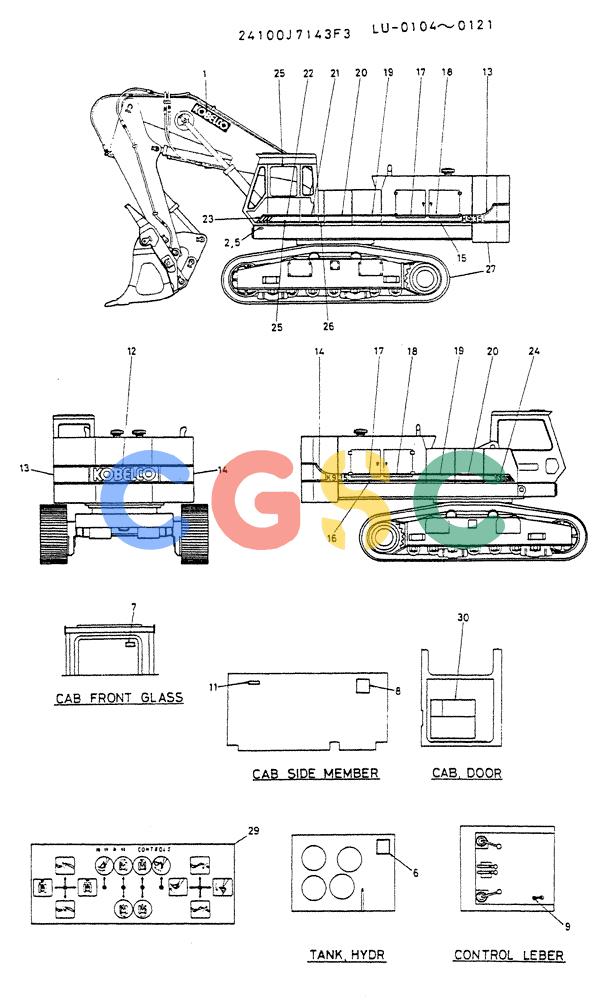

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (09-017) - LABEL, NAME PLATE P/N 24100J7143F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
601 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7143F3 | [1] | LABEL, NAME-PLATE | |
| 1. | 2432J681 | [2] | NAME-PLATE | NAME-PLATE |
| 2. | 2432T1530 | [1] | IDENTITY PLATE | KOB |
| 5. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 6. | 2432T102B | [2] | PLATE,CAUTION | |
| 7. | 2432TE92 | [1] | LABEL | |
| 8. | 2432T1548 | [1] | PLATE, CAUTION | |
| 9. | 2432T1017 | [1] | LABEL | LABEL |
| 11. | 2432TV59 | [1] | LABEL | |
| 12. | 2432X269 | [1] | LABEL | KOB |
| 13. | 2432X297 | [1] | LABEL | KOB |
| 14. | 2432X296 | [1] | LABEL | KOB |
| 15. | 2432J1617 | [1] | NAME-PLATE | NAME-PLATE |
| 16. | 2432J1616 | [1] | NAME-PLATE | NAME-PLATE |
| 17. | 2432J1105 | [2] | LABEL | LABEL |
| 18. | 2432J1107 | [2] | LABEL | LABEL |
| 19. | 2432J1106 | [2] | LABEL | LABEL |
| 20. | 2432J1108 | [2] | LABEL | LABEL |
| 21. | 2432N124D7 | [1] | LABEL | |
| 22. | 2432J1095 | [1] | LABEL | KOB |
| 23. | 2432P1161 | [1] | LABEL | KOB |
| 24. | 2432J1112 | [1] | LABEL | LABEL |
| 25. | 2432J1142 | [2] | LABEL | LABEL |
| 26. | 2432P1183 | [1] | LABEL | LABEL |
| 27. | 24105P1059 | [1] | DIAGRAM | |
| 29. | 2432N1353 | [1] | PLATE, INSTRUCTION | |
| 30. | 2432J1176 | [1] | LABEL | |
