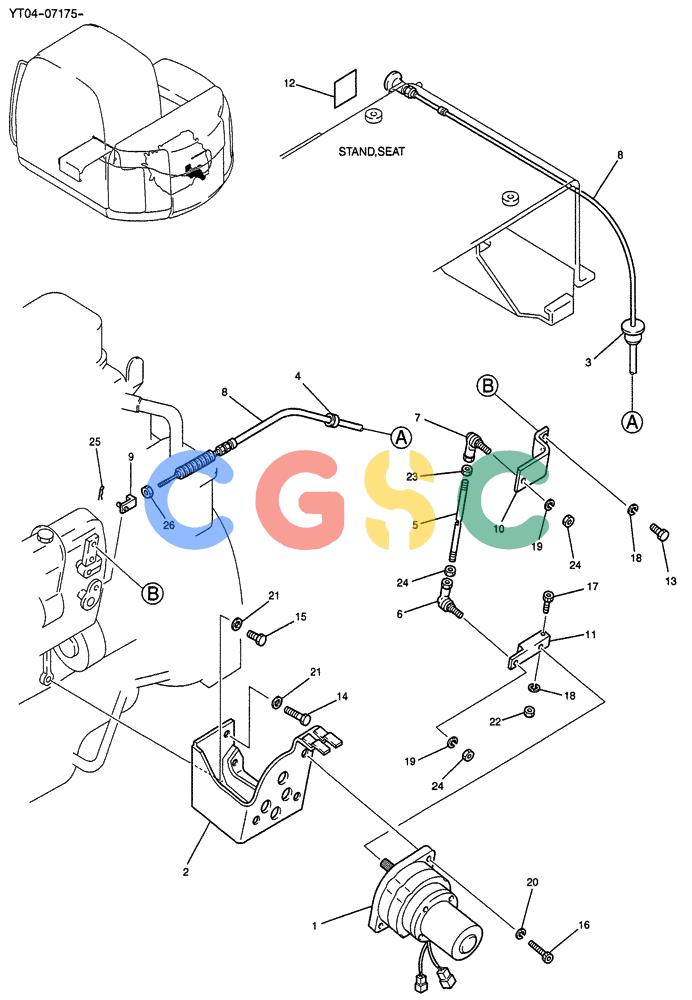

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-017) - CONTROL ASSY, ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT11M00004F1 | [1] | CONTROL ASSY, ENGINE | |
| 1. | YN20S00002F1 | [1] | MOTOR | KOBASSY, GOVERNOR |
| . . | YN20S00002F1R | [1] | REMAN-ELECTRIC MOTOR | KOBE70SR ASN YT04-07175 |
| . . | YN20S00002F1C | [1] | CORE-ELECTRIC MOTOR | KOBReturn Number |
| 2. | YT11M01018P2 | [1] | BRACKET | KOB |
| 3. | YR03M01293P1 | [1] | GROMMET | KOB |
| 4. | YR20M01035P1 | [1] | GROMMET | KOB |
| 5. | YT11M01015P1 | [1] | ROD | KOB |
| 6. | HR37C08000G1 | [1] | BALL JOINT | KOBReplaces 2425R227D2, M08x1.25x45.5mm Long |
| 7. | YN11M01013D1 | [1] | BALL JOINT | KOBM08x1.25x36mm Long (Left hand thread) Superseded by part number: HR37D08000G1 |
| 8. | YT11M01011P2 | [1] | CABLE | KOBCONTROL |
| 9. | YT11M01022P2 | [1] | PIN | KOBASSY |
| 10. | YT11M01004P2 | [1] | LEVER | KOB |
| 11. | YN11M01009P1 | [1] | LEVER | KOB |
| 12. | 2432T4615 | [1] | LABEL | KOB |
| 13. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBCAP |
| 14. | ZS18F10020 | [2] | BOLT,Hex, M10 x 20mm | KOBCAP |
| 15. | ZS18F10035 | [1] | SCREW | KOBCAP |
| 16. | ZS28C10035 | [3] | SCREW,Hex Socket Head, M10 x 35mm | KOBSCREW |
| 17. | ZS28C06025 | [1] | SCREW,Hex Socket Head, M6 x 25mm | KOBCAP |
| 18. | ZW26X06000 | [3] | LOCK WASHER | KOB |
| 19. | ZW26X08000 | [2] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 20. | ZW26K10000 | [3] | LOCK WASHER | KOBLOCK |
| 21. | ZW16H10000 | [3] | WASHER | KOB |
| 22. | ZN18C06005 | [1] | NUT | KOB |
| 23. | 2420T7359 | [1] | NUT | KOB(ANTI CLOCK WISE) M08x1.25x36mm Long (Left hand thread) |
| 24. | ZN18C08007 | [3] | NUT | KOBM08x1.25mm |
| 25. | 2419R9D1 | [1] | COTTER PIN | KOB |
| 26. | ZN18C05004 | [1] | NUT | KOB |
