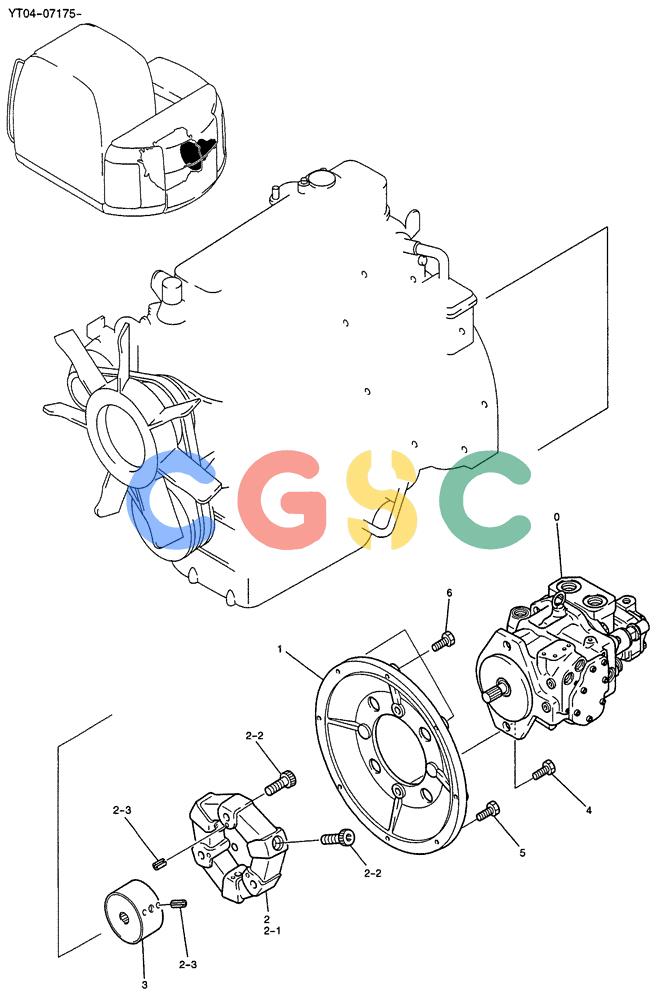

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-018) - POWER TAKE-OFF ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YT10V00008F1 | [1] | HYDRAULIC PUMP | KOBASSY Superseded by part number: YT10V00008F2 |
| . . | YT30P00001F1 | [1] | UNIVERSAL JOINT | KOBPOWER TAKE-OFF ASSY |
| 1. | YT30P01001P1 | [1] | BRACKET | KOB |
| 2. | 24100U341F1 | [1] | COUPLING | KOBASSY Superseded by part number: LF30P01001F1 |
| 2-1. | 24100U341S1 | [1] | COUPLING | KOB Superseded by part number: LF30P01001S001 |
| 2-2. | 2418U128S5 | [6] | SCREW | KOBSOCKET |
| 2-3. | ZP26D05010 | [9] | PIN | KOBSPRING |
| 3. | 2418P23473 | [1] | HUB | KOBCOUPLING |
| 4. | ZS23C16035 | [2] | SCREW,Hex Socket Head, M16 x 35mm | KOBCAP |
| 5. | ZS18C10035 | [5] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 6. | ZS18C10045 | [3] | SCREW,Hex, M10 x 45mm | KOBCAP |
