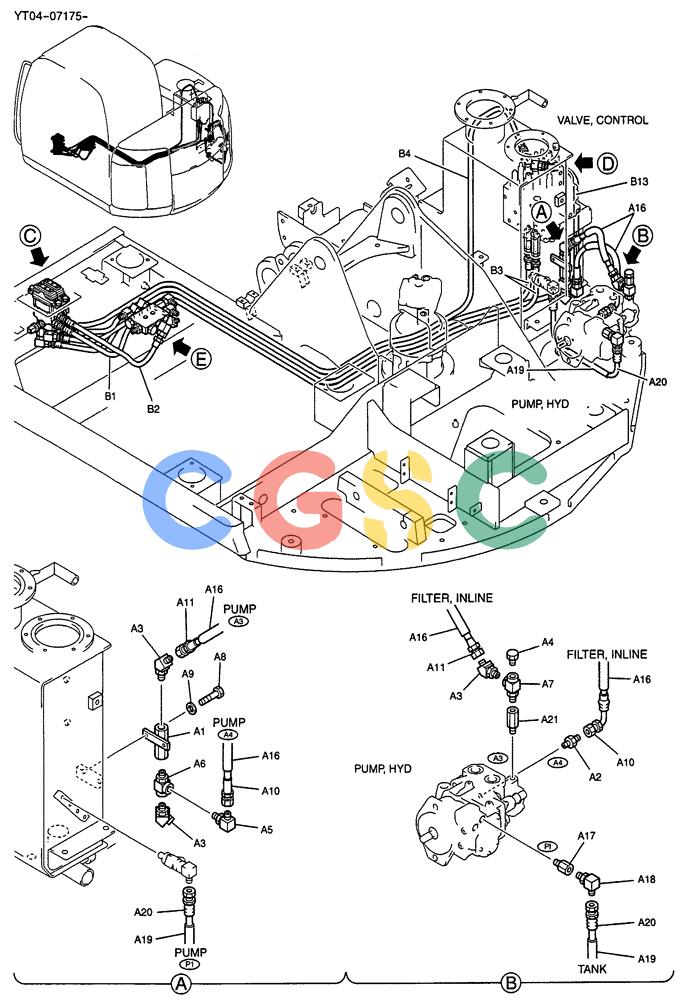

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-030[01]) - CONTROL LINES, REMOTE, P/N YT06H00015F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT06H00015F1 | [1] | CONTROL LINES, PUMP | |
| A1. | YN50V00007F1 | [1] | VALVE | KOBASSY, INLINE |
| A2. | ZH22X06000 | [1] | HYD CONNECTOR | KOB |
| A3. | ZH42X06000 | [3] | 45 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOB45 |
| A4. | ZE72X04000 | [1] | PLUG | KOB |
| A5. | ZH32X06000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| A6. | HH55Q06006G1 | [1] | TEE | KOB |
| A7. | PW64H01011P1 | [1] | TEE | KOB |
| A8. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBCap |
| A9. | ZW16X10000 | [2] | WASHER | KOB |
| A10. | 2444R941D27 | [1] | FLEXIBLE HOSE | KOB |
| A11. | 2420R537D040 | [1] | HOSE ASSY.,9.60mm ID x 400mm L | KOB |
| A16. | 2414Z199D25 | [2] | GUARD | KOBHOSE Superseded by part number: 2414Z199D025 |
| A17. | 2444Z2525 | [1] | HYD CONNECTOR | KOB |
| A18. | ZH32X04000 | [1] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB |
| A19. | PU13E01002DA | [1] | TUBE | KOB |
| A20. | 2444R1120D065 | [1] | HOSE | KOB |
| A21. | 2444Z3711 | [1] | HYD CONNECTOR | KOB |
| . . | YT62H00003F1 | [1] | CONTROL LINES, PROPEL | |
| B1. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB |
| B2. | 2444R1119D045 | [1] | HOSE | KOB Superseded by part number: 2444R1119D046 |
| B3. | 2420R349D230 | [2] | HOSE ASSY. | KOB |
| B4. | 2420R349D300 | [1] | HOSE ASSY. | KOB |
| B7. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB |
| B8. | 2444R402D16 | [1] | CONNECTION | KOB |
| B9. | LC52S00011P1 | [2] | SENSOR | KOBPRESS (L.P.) Superseded by part number: LC52S00019P1 |
| B9-2. | ZD12P01100 | [1] | O-RING | KOB |
| B10. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBCAP |
| B11. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B12. | YN30V00070F1 | [1] | VALVE | KOBASSY, PILOT Superseded by part number: YN30V00070F2 |
| B13. | 2420R349D320 | [1] | HOSE ASSY. | KOB |
| . . | YT64H00036F1 | [1] | CONTROL | KOBLINES, BLOCK |
| C1. | 2416N6141 | [1] | BLOCK | KOB |
| C5. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| C9. | ZE72X06000 | [1] | PLUG | KOB |
| C16. | 2444Z2891 | [1] | HYD CONNECTOR | KOB |
