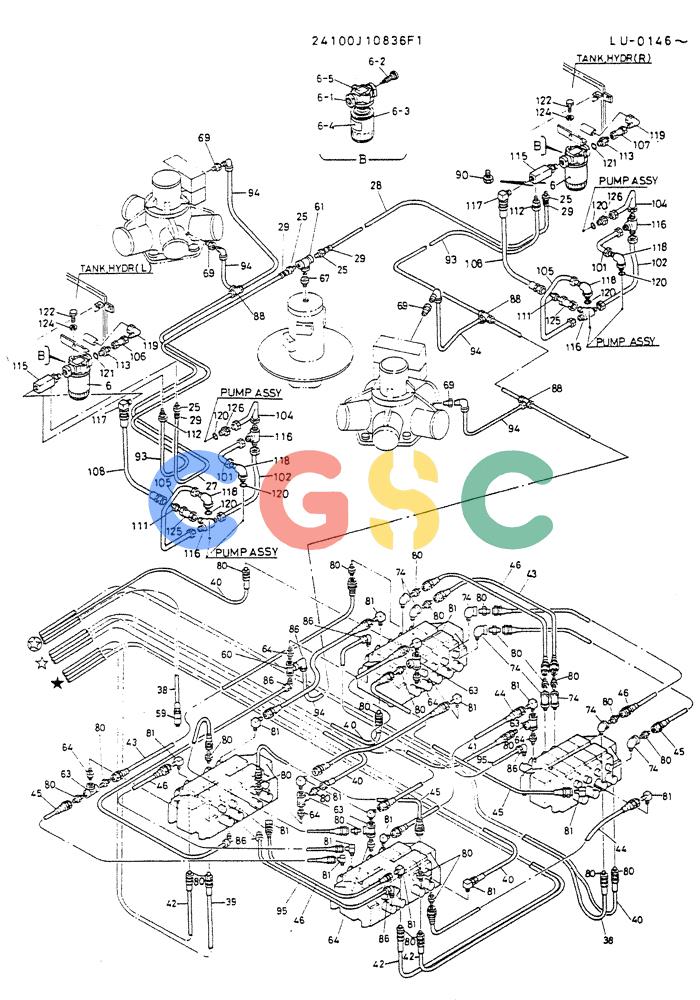

| . . | 24100J10836F1 | [1] | CONTROL ASSY | |
| 1. | 2436U811F9 | [2] | PILOT VALVE | KOB |
| 2. | 2436U1062F1 | [2] | VALVE, REMOCON PILOT | VALVE, REMOCON PILOT |
| 3. | 2400N890F2 | [1] | LEVER ASSY, CONTROL, SEE FIG. 03-012 | |
| 4. | 2436R236F1 | [1] | VALVE, RELIEF | VALVE, RELIEF |
| 5. | 2446R151F1 | [1] | ELEMENT | KOBFILTER, LINE Superseded by part number: 2446R183F1 |
| 5-1. | 2446R151S1 | [1] | HEAD | KOB |
| 5-2. | R36P0019 | [1] | HYDRAULIC OIL FILTER | KOB |
| 5-3. | 45Z91D84 | [1] | O-RING | KOBID 56.74 ± 0.25 OD 63.80mm |
| 5-4. | 2446R151S4 | [1] | RING | KOBBACK-UP |
| 5-5. | 2446R151S5 | [1] | CASE | KOB |
| 6. | 2446U214F1 | [2] | HYDRAULIC OIL FILTER | KOBDRAIN |
| 6-1. | 2446U214S1 | [1] | BODY | KOBHEAD |
| 6-2. | 2446U214S2 | [1] | VALVE ASSY | VALVE ASSY |
| 6-3. | 2446U141S2 | [1] | SPARE PART | HITCARTRIDGE Superseded by part number: S15510-20200 |
| 6-4. | 2446U214S4 | [1] | LAEEL | |
| 6-5. | 2446U214S5 | [1] | NAME-PLATE | |
| 7. | 2436R238D13 | [2] | VALVE, CHECK | |
| 8. | 2416P4545D2 | [2] | STAND | |
| 9. | 2414R230 | [2] | BOOT | KOB |
| 10. | 2416P8328 | [1] | BLOCK | |
| 11. | 2416P5306 | [1] | BRACKET | |
| 12. | 2406T1027 | [2] | LEVER | KOB |
| 13. | 2406P2065D5 | [1] | LEVER | KOB |
| 14. | 2406P2065D4 | [1] | LEVER | KOB |
| 15. | 2419T2964 | [1] | PIN | PIN |
| 16. | 2418N2384 | [1] | PLATE, FLOOR | |
| 17. | ZS18C16090 | [1] | SCREW,Hex, M16 x 90mm | KOBM16x2.0x90mm |
| 18. | 2414T1054 | [8] | COVER | KOB |
| 19. | 2416Z253 | [8] | RUBBER SLEEVE | KOB |
| 20. | ZN32C16015 | [4] | NUT | KOBM16x2.0mm |
| 21. | 2418T9226D1 | [4] | SPACER | KOB |
| 22. | R16T0152D2 | [8] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 23. | 2444T1104 | [1] | ELBOW, 90 CONNECTOR | ELBOW, 90 CONNECTOR |
| 24. | 2444T1793 | [2] | HYD CONNECTOR | KOB |
| 25. | 2444Z1695D3 | [4] | CONNECTOR | CONNECTOR |
| 27. | 2420R384D17 | [1] | HOSE | KOB |
| 28. | 2420R384D25 | [1] | HOSE | KOB |
| 29. | ZC15X02600 | [8] | CLAMP | KOB |
| 30. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 31. | 2420R537D170 | [2] | HOSE,9.60mm ID x 1700mm L | KOB |
| 32. | 2420R537D060 | [1] | HOSE ASSY.,9.60mm ID x 600mm L | KOB |
| 33. | 2420R537D100 | [1] | HOSE,9.60mm ID x 1000mm L | KOB |
| 34. | 2420R537D150 | [1] | FLEXIBLE HOSE,9.60mm ID x 1500mm L | KOB3/8" PF, 1500mm Long (59-1/16 in) Superseded by part number: HX21E06150DX |
| 35. | 2420R537D280 | [1] | HOSE,9.60mm ID x 2800mm L | KOB |
| 36. | 2420R349D040 | [12] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 37. | 2420R349D120 | [2] | HOSE,6.35mm ID x 1200mm L | KOB |
| 36. | 2420R349D350 | [2] | FLEXIBLE HOSE | KOB3500mm Long (137-51/64 in) Superseded by part number: HX21E04350DX |
| 39. | 2420R349D380 | [1] | FLEXIBLE HOSE | KOB3800mm Long (149-39/64 in) Superseded by part number: HX21E04380DX |
| 40. | 2420R349D430 | [5] | HOSE | KOB |
| 41. | 2420R349D500 | [1] | HOSE | HOSE |
| 42. | 2420R349D470 | [3] | HOSE 4700mm Long (185-1/32 in) | HOSE 4700mm Long (185-1/32 in) |
| 43. | 2420R349D080 | [1] | HOSE,6.35mm ID x 800mm L | KOB800mm Long (31-1/2 in) |
| 44. | 2420R349D035 | [5] | HOSE | KOB350mm Long (13-49/64 in) |
| 45. | 2420R349D065 | [6] | HOSE,650.00 mm | KOB650mm Long (25-1/2 in) Superseded by part number: HX21E04065DX |
| 46. | 2420R349D075 | [4] | HOSE | KOB750mm Long (29-1/2 in) Superseded by part number: 2444R3019D3 |
| 47. | 2420R349D100 | [2] | HOSE | KOB1000mm Long (39-3/8 in) Superseded by part number: HX21E04100DX |
| 48. | 2420R537D050 | [1] | HOSE,9.53mm ID x 500mm L | KOB |
| 49. | 2414T2053 | [2] | COVER | KOB |
| 50. | 2414T2052 | [2] | COVER | COVER |
| 51. | ZW11C10020 | [8] | SEMS BOLT | |
| 52. | ZS18C08014 | [14] | SCREW,Hex, M8 x 14mm | KOBM08x1.25x14mm |
| 53. | ZS16C08030 | [2] | CAPSCREW M08x1.25x30mm | CAPSCREW M08x1.25x30mm |
| 54. | ZS23C06012 | [8] | SCREW,Hex Socket Head, M6 x 12mm | KOBM06x1.0x12mm |
| 55. | ZW26K06000 | [16] | LOCK WASHER | KOBID 06 x OD 11 x Th 1.5mm |
| 56. | ZS18C08060 | [2] | SCREW,Hex, M8 x 60mm | KOBM08x1.25x60mm |
| 57. | ZW26X08000 | [22] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 58. | R16P0036D8 | [4] | CLAMP | |
| 59. | ZH42Z04000 | [1] | ELBOW | KOB45° -- 1/4"PFx1/4"PTx40mm Long (male both ends) |
| 60. | ZG51U04000 | [1] | TEE | KOB |
| 61. | ZG51U08000 | [1] | TEE | KOB |
| 62. | ZG52U06000 | [2] | TEE | KOB |
| 63. | ZG52U04000 | [5] | TEE | KOB |
| 64. | ZG22E04000 | [6] | HYD CONNECTOR | KOB |
| 65. | ZG22E06000 | [2] | HYD CONNECTOR | KOB |
| 67. | ZG21E08000 | [1] | LUBE NIPPLE | KOBCONNECTOR |
| 68. | ZG22B08006 | [1] | CONNECTOR | CONNECTOR |
| 69. | ZG21B08004 | [2] | BUSHING | KOBCONNECTOR |
| 70. | ZH22Z06008 | [2] | CONNECTOR | CONNECTOR |
| 72. | ZG22E08006 | [1] | LUBE NIPPLE | KOBCONNECTOR |
| 73. | ZG32B06000 | [2] | ELBOW | KOB |
| 74. | ZG32B04000 | [9] | ELBOW | KOB |
| 75. | ZH22Z06000 | [4] | CONNECTION | KOB |
| 76. | ZH32Z06000 | [5] | ELBOW | KOB |
| 78. | ZH22F06000 | [1] | CONNECTION | KOB |
| 79. | ZH22F04000 | [8] | HYD CONNECTOR | KOB |
| 80. | ZH22Z04000 | [38] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 81. | ZH32Z04000 | [18] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 62. | ZE72T06000 | [2] | PLUG | PLUG |
| 64. | R20T0133D2 | [1] | PLUG | PLUG |
| 85. | ZH21K08004 | [6] | HYD CONNECTOR | KOB |
| 86. | ZH31K08004 | [9] | ELBOW | KOB |
| 88. | ZH51K08000 | [3] | TEE | KOB |
| 89. | ZH31K08006 | [1] | ELBOW | KOB |
| 90. | ZH21K08006 | [2] | HYD CONNECTOR | KOB |
| 91. | ZX15K08210 | [5] | TUBE | KOB |
| 92. | ZX15K08150 | [1] | TUBE | KOB |
| 93. | ZX15K08200 | [6] | TUBE | KOB |
| 94. | ZX15K08050 | [2] | PLASTIC-RUBBER TUBE | KOB |
| 95. | ZX15K08065 | [2] | TUBE | KOB |
| 96. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 97. | ZN16C12010 | [4] | NUT | KOB Superseded by part number: ZN18C12010 |
| 98. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 99. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 100. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 101. | 2418P9705D11 | [2] | TUBE | |
| 102. | 2418T19280 | [2] | TUBE | |
| 103. | 2418T19283 | [2] | TUBE | |
| 104. | 2418T19279 | [2] | TUBE | |
| 105. | 2418T19282 | [2] | TUBE | |
| 106. | 2418P9765D4 | [1] | TUBE | |
| 107. | 2418P9765D3 | [1] | TUBE | |
| 108. | ZX21M12086 | [2] | HOSE | KOB860mm Long (33-49/64 in) |
| 109. | 2420R537D210 | [1] | HOSE,9.53mm ID x 2100mm L | KOB |
| 110. | 2444R715D9 | [2] | CONNECTOR | |
| 111. | 2444R715D16 | [2] | CONNECTOR | CONNECTOR |
| 112. | 2444Z3371 | [2] | CONNECTOR | CONNECTOR |
| 113. | ZF23F28016 | [2] | HYD CONNECTOR | KOB |
| 115. | 2444Z3304 | [2] | TEE | |
| 116. | ZF53B22000 | [4] | TEE | KOB |
| 117. | ZH32X12000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| 118. | ZF33F22012 | [4] | ELBOW | KOBELBOW |
| 119. | ZF33B28000 | [2] | 90 ELBOW | KOB |
| 120. | ZD12P02400 | [8] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 121. | ZD12P02900 | [2] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 122. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 123. | ZS23C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 124. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 125. | 2418P9786D1 | [2] | TUBE | |
| 126. | ZF23F22012 | [2] | HYD CONNECTOR | KOB |
