凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (03.01[01]) - MAIN GEARBOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
952 次

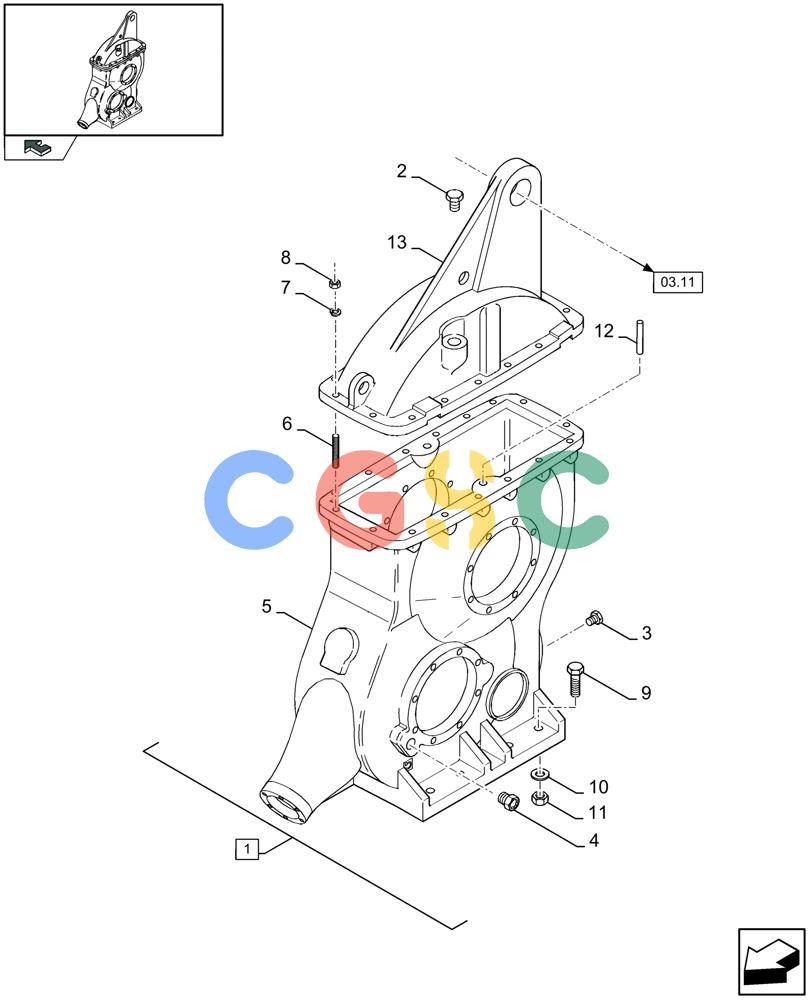

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84320872
|
[1] |
GEARBOX
|
ZED
Incl. figs., Serial Range: 03.01-03.05
|
| 2. |
84074435
|
[1] |
BREATHER
|
ZED
M24 x 2
|
| 3. |
84074433
|
[1] |
PLUG
|
ZED
Incl Washer, M24 x 2
|
| 4. |
84074434
|
[1] |
INDICATOR
|
ZED
M24 x 2
|
| 5. |
84074443
|
[1] |
HOUSING
|
ZED
, Serial Range: -C662
|
| 5. |
87718404
|
[1] |
HOUSING
|
ZED
, Start Serial: D663
|
| 6. |
84074461
|
[17] |
STUD,M14 x 68mm, Cl 12.9
|
ZED
|
| 7. |
140030
|
[17] |
LOCK WASHER,M14
|
ZED
Superseded by part number: 80140047
|
| 8. |
10719411
|
[17] |
NUT,M14 x 2, Cl 8
|
ZED
|
| 9. |
89837787
|
[8] |
SCREW
|
ZED
M24 x 200 Superseded by part number: 9837787
|
| 10. |
89818872
|
[8] |
LOCK WASHER
|
ZED
25 MM Superseded by part number: 9818872
|
| 11. |
89837788
|
[8] |
NUT
|
ZED
M24 Superseded by part number: 9837788
|
| 12. |
84000778
|
[2] |
SPINDLE
|
ZED
Superseded by part number: 944004907
|
| 13. |
84074444
|
[1] |
HOUSING
|
ZED
|
