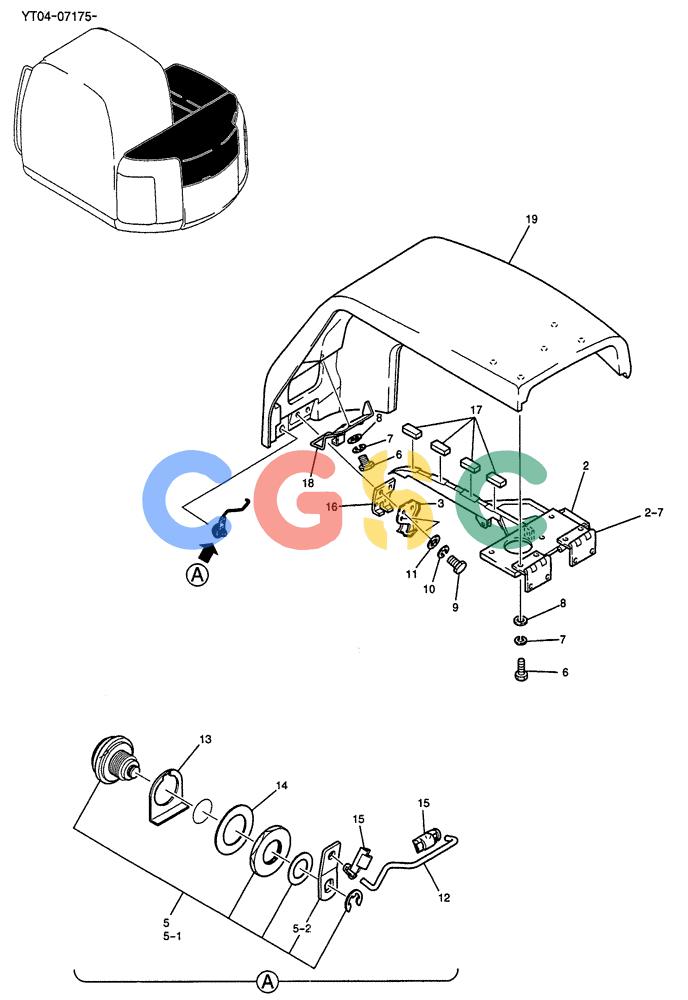

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-043) - COVER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
933 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21C01303F3 | [1] | COVER | KOBASSY |
| 2. | YT21C01327P2 | [1] | SUPPORT | KOB |
| 2-7. | YT21C01225P1 | [2] | HINGE | KOB |
| 3. | YT21C01034P2 | [1] | CATCH | KOB |
| 5. | YT21C01090F1 | [1] | LOCK | KOBASSY |
| 5-1. | YR22C01025P2 | [1] | LOCK | KOB |
| 5-2. | YT21C01047P1 | [1] | PLATE | KOB |
| 6. | ZS18C10020 | [6] | SCREW,Hex, M10 x 20mm | KOBCap |
| 7. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 8. | HY25X10027G1 | [6] | WASHER,10mm ID x 27mm OD x 3.2mm Thk | KOB |
| 9. | ZS18C06018 | [2] | SCREW,Hex, M6 x 18mm | KOBCAP |
| 10. | ZW26X06000 | [2] | LOCK WASHER | KOB |
| 11. | ZW16X06000 | [2] | WASHER | KOB Superseded by part number: 86588450 |
| 12. | YT21C01318P1 | [1] | ROD | KOB |
| 13. | YT21C01107P1 | [1] | BRACKET | KOB |
| 14. | YT21C01155P1 | [1] | WASHER | KOB |
| 15. | YT21C01053P1 | [2] | CLIP | KOB |
| 16. | YT21C01324P1 | [1] | COVER | KOB |
| 17. | YN22C01017D6 | [4] | RUBBER | KOB |
| 18. | YT21C01351P3 | [1] | U-BRACKET | KOB |
| 19. | YT21C01381D1 | [1] | COVER | KOBCOVER |
