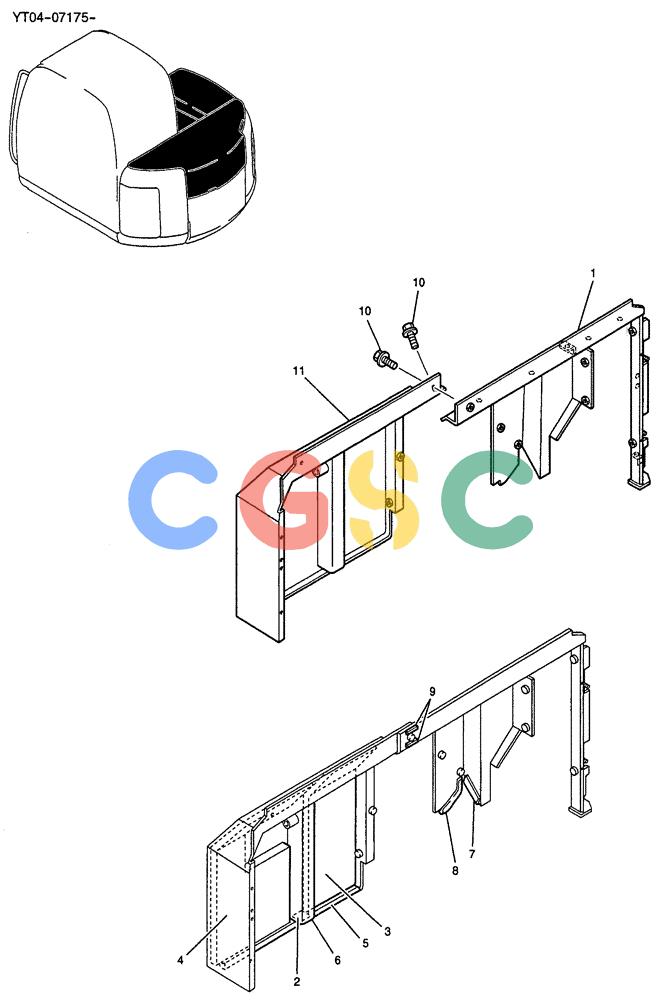

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-044) - GUARD ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
519 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21C01278F1 | [1] | GUARD | KOBGUARD ASSY |
| 1. | YT21C01290P1 | [1] | GUARD | KOBASSY |
| 2. | YT21C01012D1 | [1] | RUBBER | KOB |
| 3. | YT21C01279P1 | [1] | FOAM INSULATION | KOB |
| 4. | YT21C01280P1 | [1] | FOAM INSULATION | KOB |
| 5. | LE21C01070DC | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 6. | YT21C01208D1 | [1] | RUBBER | KOB |
| 7. | PY01P01019DN | [1] | WEATHERSTRIP | KOB |
| 8. | LE21C01070DJ | [1] | WEATHERSTRIP | KOB |
| 9. | YB21C01036D2 | [2] | RUBBER | KOB |
| 10. | ZM32C12025 | [3] | BOLT | KOBSEMS |
| 11. | YT21C01305P1 | [1] | GUARD | KOB |
