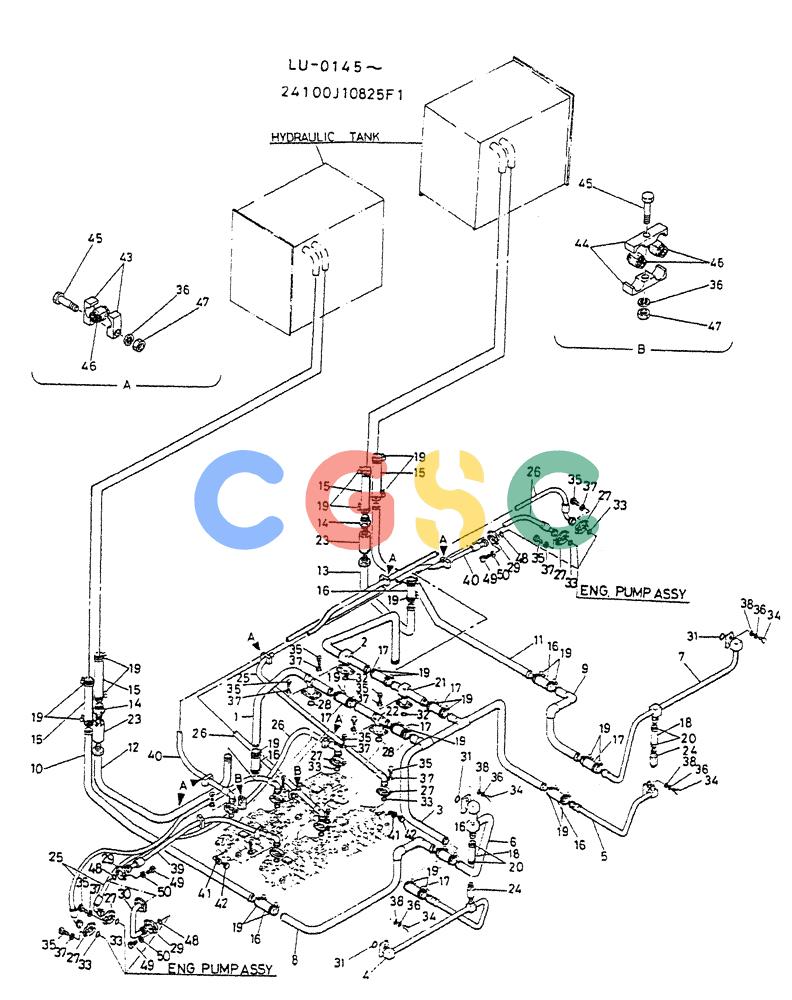

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (04-002) - HYDR LINES, UPP P/N 24100J10825F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
786 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10625F1 | [1] | HYDR LINES, UPP | |
| 1. | 2418N1497 | [1] | TUBE | KOB |
| 2. | 2418N1498 | [1] | TUBE | TUBE |
| 3. | 2418N1496 | [1] | TUBE | TUBE |
| 4. | 2418N1492 | [1] | TUBE | TUBE |
| 5. | 2418N1493 | [1] | TUBE | TUBE |
| 7. | 2418N2390 | [1] | TUBE | |
| 8. | 2418P6070 | [1] | TUBE TU3E | TUBE TU3E |
| 9. | 2418P6071 | [1] | TUBE | TUBE |
| 10. | 2418N941 | [1] | TUBE | KOB |
| 11. | 2418N949 | [1] | TUBE | TUBE |
| 12. | 2418N1490 | [1] | TUBE | TUBE |
| 13. | 2418N1491 | [1] | TUBE | KOB |
| 14. | 2418T6929 | [2] | PIPE | PIPE |
| 15. | 2420R367D12 | [4] | HOSE | KOBRUBBER |
| 16. | 2420R367D11 | [6] | FLEXIBLE HOSE | KOBRUBBER |
| 17. | 2420R367D10 | [6] | FLEXIBLE HOSE | KOBRUBBER |
| 18. | 2444R1050D2 | [2] | HOSE | KOBRUBBER |
| 19. | 2432R182D12 | [64] | CLAMP | KOB |
| 20. | 2432R182D5 | [4] | CLAMP | |
| 21. | 2418T6930 | [1] | TUBE | TUBE |
| 22. | 2418T6931 | [1] | TUBE | TUBE |
| 23. | 2436R270F2 | [2] | CHECK VALVE | KOB |
| 24. | B36P0049F3 | [2] | CHECK VALVE | KOB |
| 25. | 2444Z3303D1 | [2] | HOSE | KOB |
| 26. | 2444Z3302D1 | [2] | HOSE | KOB |
| 27. | ZE13X16000 | [20] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 28. | ZD11G05000 | [2] | O-RING,3.1mm Thk x 49.4mm ID, 70 Duro | KOBO-Ring -- ID 49.40 ± 0.45 x OD 55mm |
| 29. | ZE13X12000 | [6] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 30. | 2418P20847 | [1] | TUBE | TUBE |
| 31. | ZD11G04500 | [4] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 32. | ZD11P03800 | [2] | O-RING | KOB |
| 33. | ZD12P03400 | [12] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 34. | ZS18C10040 | [8] | SCREW,Hex, M10 x 40mm | KOBM10x1.50x40mm |
| 35. | ZS23C12040 | [56] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 36. | ZW22X10000 | [22] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 37. | ZW22K12000 | [56] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 38. | ZW11X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 39. | 2444Z3300D2 | [1] | HOSE | |
| 40. | 2444Z3300D1 | [1] | HOSE | HOSE |
| 41. | ZG32B04000 | [6] | ELBOW | KOB |
| 42. | R20T0133D2 | [6] | PLUG | PLUG |
| 43. | 2432R109D11 | [16] | CLAMP | |
| 44. | 2432R109D1 | [4] | CLAMP | |
| 45. | ZS18C10100 | [18] | SCREW,Hex, M10 x 100mm | KOBM10x1.50x100mm |
| 46. | 2405Z109D11 | [12] | BUSHING, RUBBER | |
| 47. | ZN18C10008 | [18] | NUT | KOBM10x1.50mm |
| 46. | ZD12P02600 | [3] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 49. | ZS23C10035 | [12] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 50. | ZW22K10000 | [12] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
