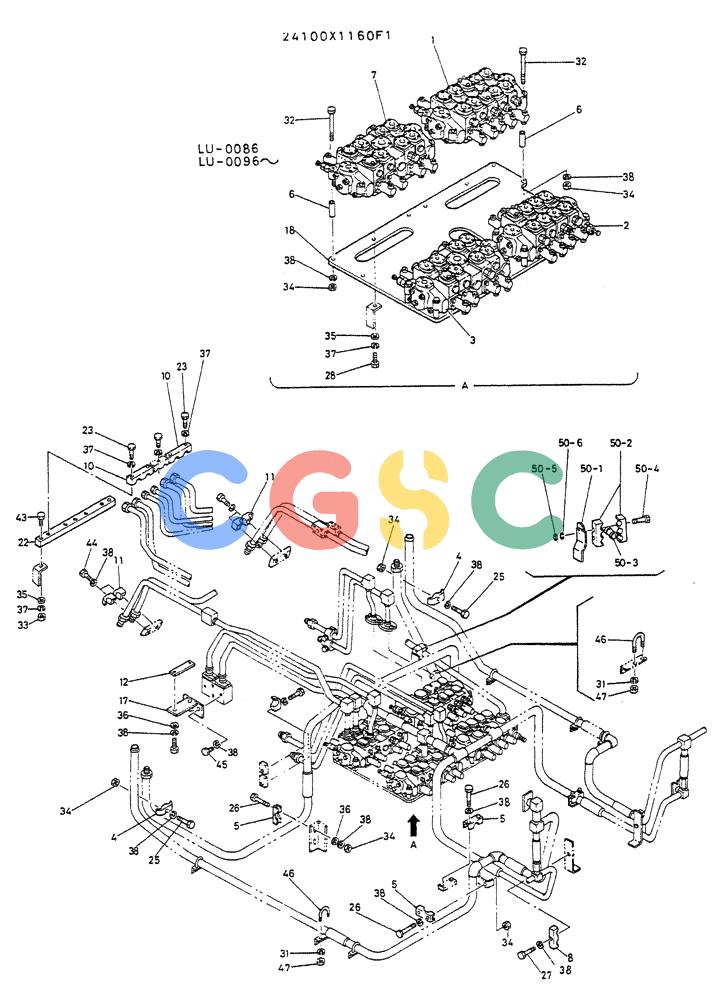

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (04-003) - HYD LINES UPP P/N 24100X1160F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
875 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X1160F1 | [1] | HYDR LINES, UPP | |
| 1. | 2436U339F3 | [1] | CONTROL VALVE | KOB |
| 2. | 2436U668F1 | [1] | VALVE, CONTROL | VALVE, CONTROL |
| 3. | 2436U341F5 | [1] | VALVE, CONTROL | |
| 4. | ZC37X50114 | [2] | CLAMP | |
| 5. | ZC35X50014 | [4] | CLAMP | |
| 6. | R16T0175D3 | [12] | SPACER | SPACER |
| 7. | 2436U341F6 | [1] | VALVE, CONTROL | |
| 8. | 2432T964 | [2] | CLAMP | |
| 10. | R16P0027D4 | [2] | CLAMP | KOB |
| 11. | ZC27X35014 | [8] | CLAMP | KOB |
| 17. | 2416P3889 | [1] | BRACKET | |
| 18. | 2416P6181 | [1] | PLATE | |
| 22. | 2416T8680 | [1] | BRACKET | |
| 23. | ZS13C16070 | [4] | SCREW | KOBM16x2.0x70mm |
| 25. | ZS11C12090 | [2] | CAPSCREW | |
| 26. | ZS11C12085 | [6] | CAPSCREW | |
| 27. | ZS11C12070 | [2] | CAPSCREW | |
| 26. | ZS13C16035 | [4] | SCREW | KOBM16x2.0x35mm |
| 31. | ZW11X08000 | [14] | WASHER | KOBID 09 x OD 17 x Th 1.6mm Superseded by part number: ZW16X08000 |
| 32. | ZS23C12150 | [12] | CAPSCREW | |
| 33. | ZN12C16013 | [2] | NUT | KOBM16x2.0mm |
| 34. | ZN11C12010 | [16] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 35. | ZW11X16000 | [11] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 36. | ZW11X12000 | [45] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 37. | ZW22X16000 | [11] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 38. | ZW22X12000 | [45] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 43. | ZS13C16080 | [2] | CAPSCREW | KOBSCREW M16x2.0x80mm |
| 44. | ZS13C12065 | [8] | SCREW | KOB Superseded by part number: ZS18C12065 |
| 45. | ZS12C10035 | [3] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 46. | 2420T2948D4 | [7] | BOLT | KOBU-Bolt -- M08x1.25x ID 51 x 83.5mm Long |
| 47. | ZN11C08007 | [28] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
| 50. | 24100P751F1 | [1] | CLAMP ASSY, Serial Range: LU.0096--LU.0132 | CLAMP ASSY, Serial Range: LU.0096--LU.0132 |
| 50-1. | 2416P5360 | [1] | BRACKET, Serial Range: LU.0096--LU.0132 | |
| 50-2. | 2432R109D11 | [2] | CLAMP, Serial Range: LU.0096--LU.0132 | |
| 50-3. | 2403Z109D11 | [1] | BUSHING, Serial Range: LU.0096--LU.0132 | |
| 50-4. | ZS11C10100 | [2] | CAPSCREW, Serial Range: LU.0096--LU.0132 | |
| 50-5. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm, Serial Range: LU.0096--LU.0132 Superseded by part number: ZN18C10008 |
| 50-6. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm, Serial Range: LU.0096--LU.0132 Superseded by part number: ZW26X10000 |
