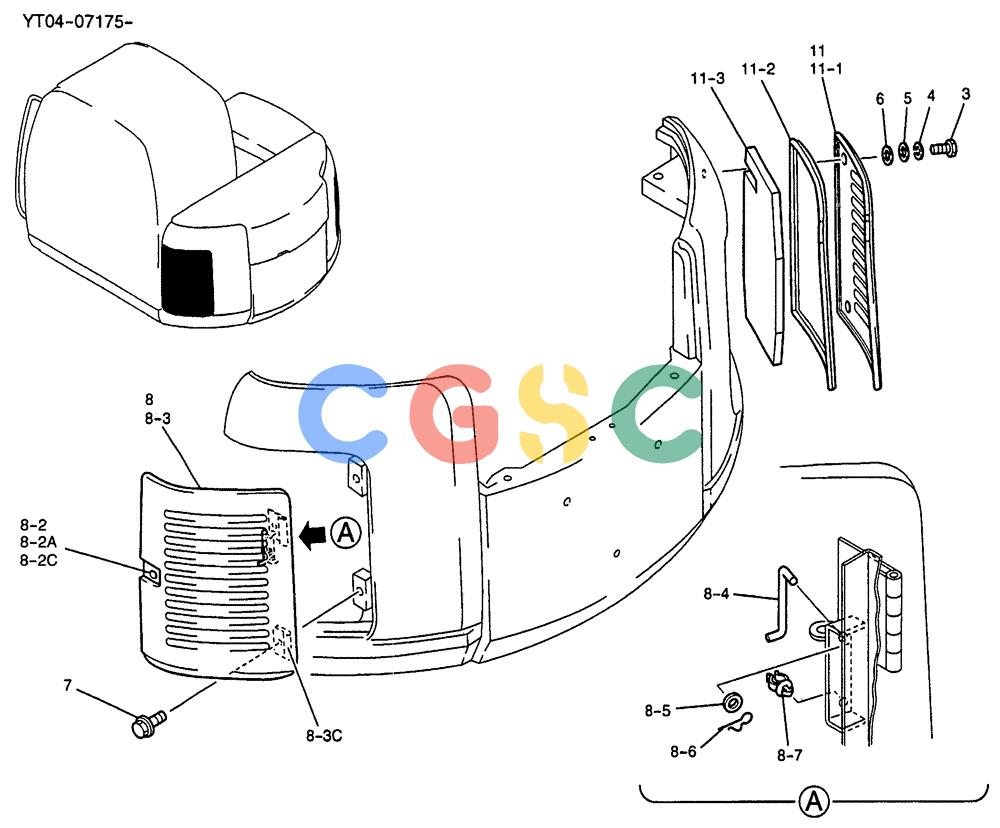

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-046) - GUARD INSTAL (COUNTERWEIGHT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT21C00008F5 | [1] | GUARD INSTAL | |
| 3. | HS18C10025G1 | [4] | SCREW | KOBCAP Superseded by part number: ZS18C10025 |
| 4. | YT21C01172P1 | [4] | LOCK WASHER | KOB |
| 5. | HY25X11024G1 | [4] | WASHER | KOB |
| 6. | YT21C01187P2 | [4] | WASHER | KOB |
| 7. | ZM32C12030 | [2] | BOLT | KOBSEMS |
| 8. | YT21C01091F2 | [1] | COVER ASSY | KOB |
| 8-2. | YT21C01090F2 | [1] | LOCK | KOBASSY |
| 8-2A. | YR22C01025P2 | [1] | LOCK | KOB |
| 8-2C. | YT21C01136P1 | [1] | PLATE | KOB |
| 8-3. | YT21C01353P1 | [1] | COVER | KOB |
| 8-3C. | YT21C01027P1 | [2] | HINGE | KOB |
| 8-4. | YT21C01354P1 | [1] | STAY | KOBSTAY |
| 8-5. | ZW16X08000 | [1] | WASHER | KOB |
| 8-6. | 2419R9D2 | [1] | COTTER PIN | KOBSNAP |
| 8-7. | YR21C01123P1 | [1] | COLLAR | KOB |
| 11. | YT21C01180F2 | [1] | GUARD | KOBASSY |
| 11-1. | YT21C01099P1 | [1] | COVER | KOB |
| 11-2. | PH21C01160D2 | [1] | WEATHERSTRIP | KOB |
| 11-3. | YT21C01487P1 | [1] | INSULATING PANEL | KOB |
