纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-045) - BONNET ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
922 次

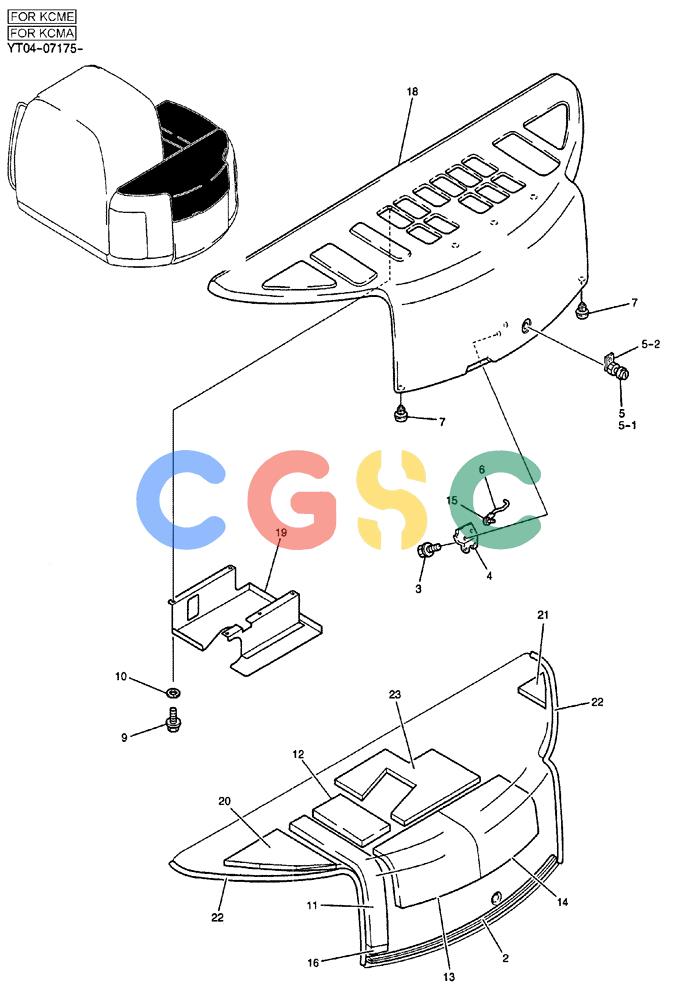

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT22C00005F3 | [1] | GUARD | KOBBONNET ASSY |
| 2. | PY21C01007DB | [1] | WEATHERSTRIP | KOB |
| 3. | ZM11C06012 | [2] | SCREW | KOBSEMS |
| 4. | YT21C01034P2 | [1] | CATCH | KOB |
| 5. | YT21C01090F1 | [1] | LOCK | KOBASSY |
| 5-1. | YR22C01025P2 | [1] | LOCK | KOB |
| 5-2. | YT21C01047P1 | [1] | PLATE | KOB |
| 6. | YT21C01043P1 | [1] | ROD | KOB |
| 7. | YT21C01162P2 | [2] | RUBBER BLOCK | KOB |
| 9. | ZM11C08020 | [5] | BOLT | KOBSEMS Superseded by part number: ZM12C08020 |
| 10. | YR21C01161P1 | [5] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOB |
| 11. | YT22C01018P1 | [1] | FOAM INSULATION | KOB |
| 12. | YT22C01035P1 | [1] | FOAM INSULATION | KOB |
| 13. | YT22C01036P1 | [1] | FOAM INSULATION | KOB |
| 14. | YT22C01037P1 | [1] | FOAM INSULATION | KOB |
| 15. | YT21C01053P1 | [2] | CLIP | KOB |
| 16. | YT22C01015P1 | [1] | FOAM INSULATION | KOB |
| 18. | YT22C01065P1 | [1] | GUARD | KOB |
| 19. | YT22C01077P1 | [1] | GUARD | KOB |
| 20. | YT22C01066P1 | [1] | INSULATING PANEL | KOB |
| 21. | YT22C01067P1 | [1] | INSULATING PANEL | KOB |
| 22. | LE21C01070D9 | [2] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 23. | YT22C01075P1 | [1] | INSULATING PANEL | KOB |
