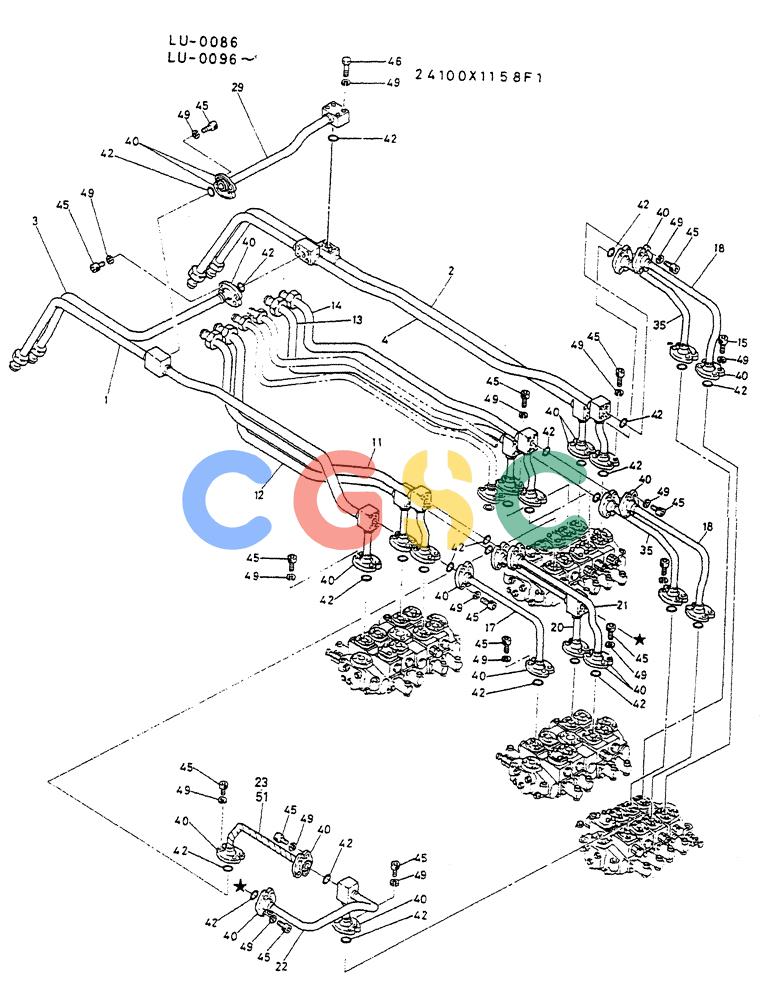

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (04-004[01]) - HYD LINES UPP P/N 24100X1158F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
685 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X1158F1 | [1] | HYDR LINES, UPP | |
| 1. | 2418N1759 | [1] | TUBE | KOB |
| 2. | 2418N1761 | [1] | TUBE | KOB |
| 3. | 2418N2369 | [1] | TUBE | KOB |
| 4. | 2418N1760 | [1] | TUBE | TUBE |
| 5. | 2418N1755 | [1] | TUBE | TUBE |
| 6. | 2418N1756 | [1] | TUBE | TUBE |
| 7. | 2418N1754 | [1] | TUBE | KOB |
| 8. | 2418N1763 | [1] | TUBE | TUBE |
| 9. | 2418N1757 | [1] | TUBE | TUBE |
| 10. | 2418N1758 | [1] | TUBE | KOB |
| 11. | 2418N1765 | [1] | TUBE | TUBE |
| 12. | 2418N1766 | [1] | TUBE | TUBE |
| 13. | 2418N1762 | [1] | TUBE | KOB |
| 14. | 2418N1768 | [1] | TUBE | KOB |
| 17. | 2418P7281D4 | [2] | TUBE | TUBE |
| 16. | 2418P7279D1 | [3] | TUBE | KOB |
| 20. | 2418P7285 | [1] | TUBE | TUBE |
| 21. | 2418P7279D2 | [1] | TUBE | TUBE |
| 22. | 2418P7286 | [1] | TUBE | KOB |
| 23. | 2418P7281D3 | [1] | TUBE | KOB, Serial Range: LU.0086,0096—-LU.0139 |
| 24. | 2418P7281D1 | [1] | TUBE | TUBE |
| 25. | 2418P7281D2 | [1] | TUBE | TUBE |
| 26. | 2418T7775 | [1] | TUBE | TUBE |
| 27. | 2418T7774 | [1] | TUBE | TUBE |
| 29. | 2418P7278 | [1] | TUBE | TUBE |
| 30. | 2418P3793 | [1] | TUBE | TUBE |
| 31. | 2418P3792 | [1] | TUBE | KOB |
| 32. | 2418P3791 | [1] | TUBE | TUBE |
| 33. | 2418P3790 | [1] | TUBE | TUBE |
| 34. | ZX27N16050 | [4] | HOSE | KOB |
| 35. | 2418P7288 | [2] | TUBE | KOB |
| 36. | ZX37P12062 | [2] | HOSE | KOB |
| 37. | 2444R652D1 | [2] | HOSE | KOB |
| 38. | 2416P3857 | [1] | BLOCK | |
| 39. | ZE12X12000 | [16] | CLAMP | KOB(Incls. Capscrew & Lockwasher) |
| 40. | ZE13X12000 | [92] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 41. | ZE13X16000 | [4] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 42. | ZD12P02600 | [56] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 43. | ZD12P03400 | [6] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 44. | ZS12C10030 | [32] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 45. | ZS23C10035 | [184] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 46. | ZS12C10060 | [12] | SCREW,Hex, M10 x 60mm | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 47. | ZS23C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 48. | ZS12C12070 | [16] | CAPSCREW M12x1.75x70mm | CAPSCREW M12x1.75x70mm |
| 49. | ZW22X10000 | [204] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 50. | ZW22X12000 | [24] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 51. | ZX48P12050 | [1] | HOSE | KOB, Start Serial: LU.0140- |
