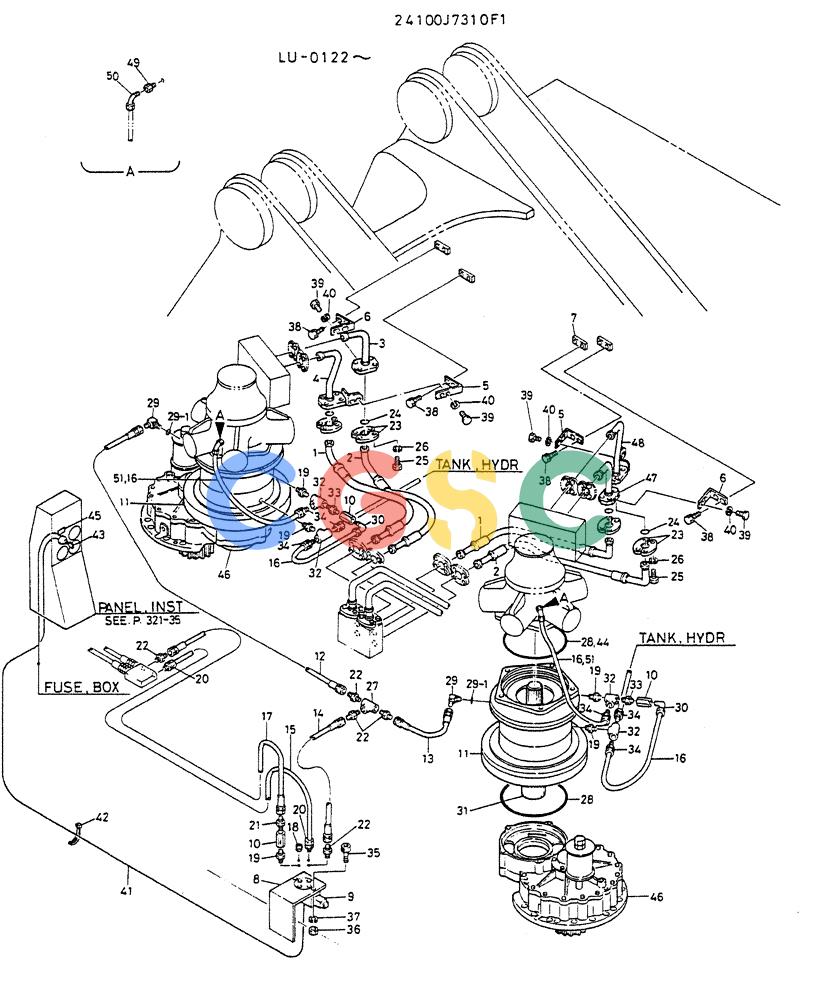

| . . | 24100J7310F1 | [1] | BRAKE ASSY, SWING (FOR NORWAY) | |
| 1. | 2444R652D1 | [2] | HOSE | KOB |
| 2. | 2444R1291D1 | [2] | HOSE | KOB |
| 3. | 2418P13666 | [2] | TUBE, Serial Range: LU.0122--LU.0132 | |
| . . | 2418P13666 | [1] | TUBE, Start Serial: LU.0133- | |
| 4. | 2418P13665 | [2] | TUBE | |
| . . | 2418P13665 | [1] | TUBE, Start Serial: LU.0133- | |
| 5. | 2416P9620 | [2] | BRACKET | |
| 6. | 2416P9621 | [2] | BRACKET | |
| 7. | 2422P830 | [1] | REWORK SENTER-SELECTION | |
| 8. | 2422P829 | [1] | REWORK,DECK | |
| 9. | 24100U322F1 | [1] | VALVE | KOB |
| 10. | 2436R574F1 | [3] | VALVE CHECK | |
| 11. | 2436U1047F1 | [2] | BRAKE,PARKING P. 139-35 | |
| 12. | 2420R349D100 | [1] | HOSE | KOB1000mm Long (39-3/8 in) Superseded by part number: HX21E04100DX |
| 13. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 14. | 2420R349D190 | [1] | HOSE,6.35mm ID x 1900mm L | KOB1900mm Long (74-13/16 in) |
| 15. | ZX15K08320 | [1] | TUBE | TUBE |
| 16. | ZX15K08070 | [4] | FLEXIBLE HOSE | KOBN2 |
| 17. | 2420R349D320 | [1] | HOSE ASSY. | KOB3200mm Long (126 in) |
| 18. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 19. | ZG22E06004 | [5] | LUBE NIPPLE | KOB |
| 20. | ZH21K08004 | [2] | HYD CONNECTOR | KOB |
| 21. | ZH22Z04006 | [1] | HYD CONNECTOR | KOB |
| 22. | ZH22Z04000 | [5] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 23. | ZE12X12000 | [8] | CLAMP | KOB(Incls. Capscrew & Lockwasher) |
| 24. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 25. | ZS12C10030 | [16] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 26. | ZW22X10000 | [16] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 27. | ZG52U04000 | [5] | TEE | KOB |
| 28. | ZD11G26000 | [4] | O-RING,259.30mm ID x 270.70mm OD x 5.70mm | KOBID 259.30 ± 1.94 x OD 270mm |
| . . | ZD11G26000 | [2] | O-RING,259.30mm ID x 270.70mm OD x 5.70mm | KOBID 259.30 ± 1.94 x OD 270mm |
| 29. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 29-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 30. | ZH31K08006 | [2] | ELBOW | KOB |
| 31. | 2401N533 | [2] | PINION, Serial Range: LU.0122--LU.0132 | |
| 32. | ZG52U06000 | [4] | TEE | KOB |
| 33. | ZG22E06000 | [2] | HYD CONNECTOR | KOB |
| 34. | ZH21K08006 | [6] | HYD CONNECTOR | KOB |
| 35. | ZS23C06025 | [2] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 36. | ZN16C06005 | [2] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 37. | ZW22K06000 | [2] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 38. | ZM11C10020 | [8] | SCREW | KOBM10x1.50x20mm (Incls. Lockwasher) Superseded by part number: ZM12C10020 |
| 39. | ZS11C08016 | [8] | CAPSCREW,Hex, M8 x 16mm, Cl 4.8 | KOBSCREW M08x1.25x16mm Superseded by part number: ZS18C08016 |
| 40. | ZH22X08000 | [8] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 41. | 2479R910 | [1] | HARNESS | |
| 42. | 2432Z290 | [5] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 43. | 2479Z855 | [1] | SWITCH | KOB |
| 44. | R45N0001D30 | [2] | O-RING, Start Serial: LU.0133- | O-RING, Start Serial: LU.0133- |
| 45. | 2432T1779 | [1] | STICKER | |
| 46. | 24100X397F3 | [2] | REDUCTION UNIT P.015-35, Start Serial: LU.0133- | |
| . . | 2418P13666D2 | [1] | TUBE, Start Serial: LU.0133- | |
| 48. | 2418P15305 | [1] | , Start Serial: LU.0133- | |
| 49. | ZG21B08004 | [2] | BUSHING | KOB, Start Serial: LU.0133- |
| 50. | ZH31K08004 | [2] | ELBOW | KOB, Start Serial: LU.0133- |
| 51. | ZX15K08050 | [2] | PLASTIC-RUBBER TUBE | KOB, Start Serial: LU.0133- |
