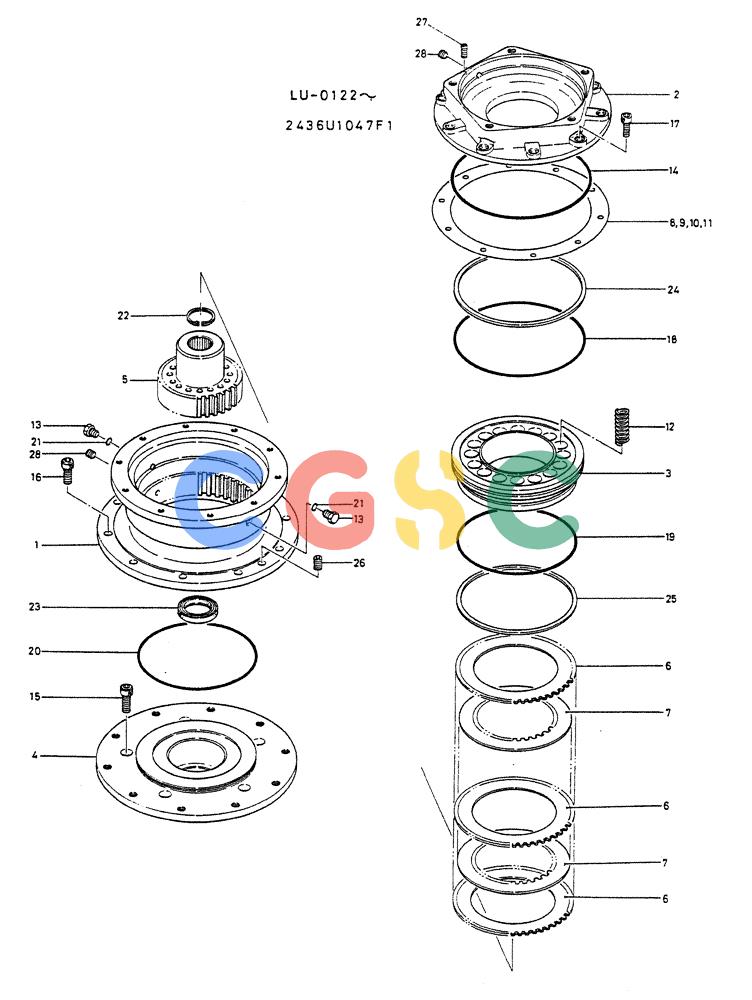

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (04-006) - BRAKE ASSY, PARKING (FOR NORWAY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
997 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1047F1 | [1] | BRAKE ASSY, PARKING (FOR NORWAY) | |
| 1. | 2436U1047S1 | [1] | CYLINDER | |
| 2. | 2436U1047S2 | [1] | COVER | |
| 3. | 2436U1047S3 | [1] | PISTON | |
| 4. | 2436U1047S4 | [1] | COVER | |
| 5. | 2436U1047S5 | [1] | COUPLING | COUPLING |
| 6. | 2436U1047S6 | [8] | PLATE | PLATE |
| 7. | 2436U1047S7 | [7] | PLATE, DISK | PLATE, DISK |
| 8. | 2436U1047S8 | [1] | SHIM | |
| 9. | 2436U1047S9 | [1] | SHIM | |
| 10. | 2436U1047S10 | [1] | SHIM | |
| 11. | 2436U1047S11 | [1] | SHIM | |
| 12. | 2436U1047S12 | [16] | SPRING | |
| 13. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 14. | 2436U1047S13 | [1] | O-RING | O-RING |
| 15. | ZS23C16045 | [5] | CAP,Hex Socket Head, M16 x 45mm | KOBScrew -- M16x2.0x45mm |
| 16. | ZS23C16040 | [10] | CAPSCREW,Hex Socket Head, M16 x 40mm | KOBSCREW M16x2.0x40mm |
| 17. | ZS23C12035 | [10] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 18. | ZD12G26000 | [1] | O-RING,259.30mm ID x 270.70mm OD x 5.70mm | KOB |
| 19. | ZD12G24000 | [1] | O-RING,239.30mm ID x 250.70mm OD x 5.70mm | KOB |
| 20. | ZD11G24000 | [1] | O-RING,239.30mm ID x 250.70mm OD x 5.70mm | KOB |
| 21. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 22. | ZR26X05000 | [1] | RING | KOB |
| 23. | 2436U1047S14 | [1] | OIL-SEAL | OIL-SEAL |
| 24. | 2436U1047S15 | [1] | RING, BACK UP | RING, BACK UP |
| 25. | 2436U1047S16 | [1] | RING, BACK UP | RING, BACK UP |
| 26. | ZS73C16020 | [2] | SET SCREW | |
| 27. | ZS73C12020 | [2] | SET SCREW | |
| 28. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
