神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (04-007) - HYD LINES, LOADING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
363 次

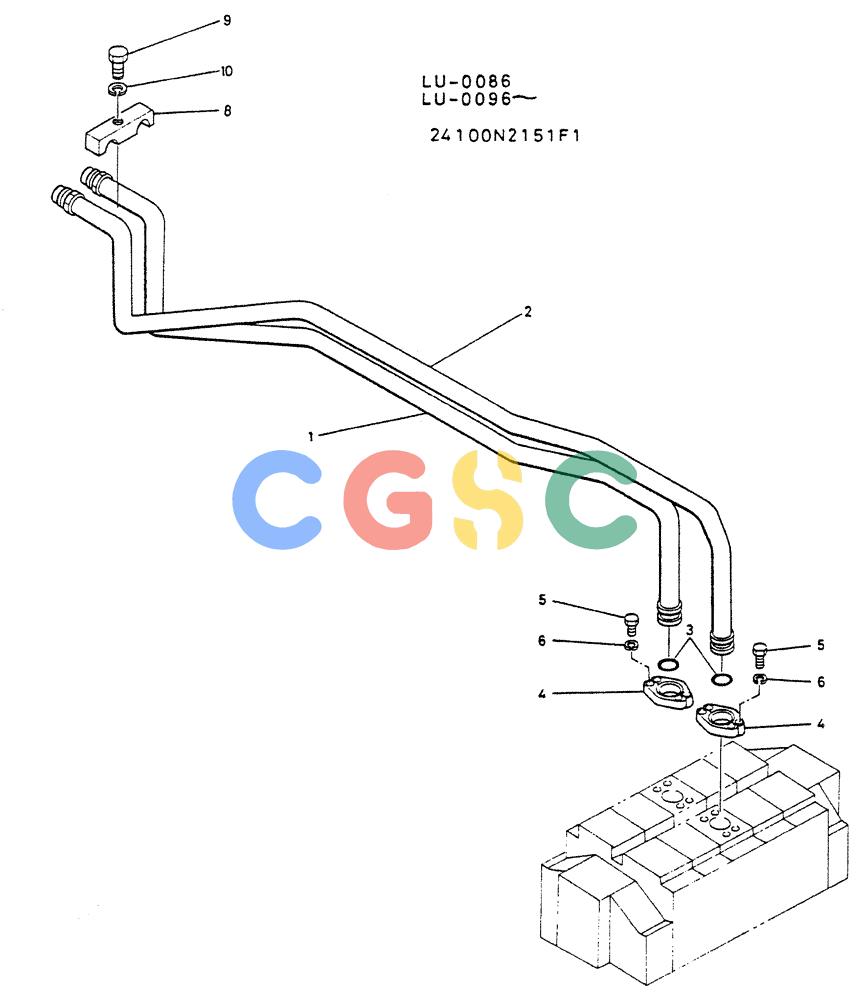

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2151F1 | [1] | HYDR LNES,LOADING | |
| 1. | 2418N974 | [1] | TUBE | TUBE |
| 2. | 2418N971 | [1] | TUBE | TUBE |
| 3. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 4. | ZE13X12000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 5. | ZS23C10035 | [8] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 6. | ZW22K10000 | [8] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 8. | 2432T965 | [1] | CLAMP | |
| 9. | ZS13C16065 | [1] | SCREW | KOBM16x2.0x65mm |
| 10. | ZW22X16000 | [1] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
