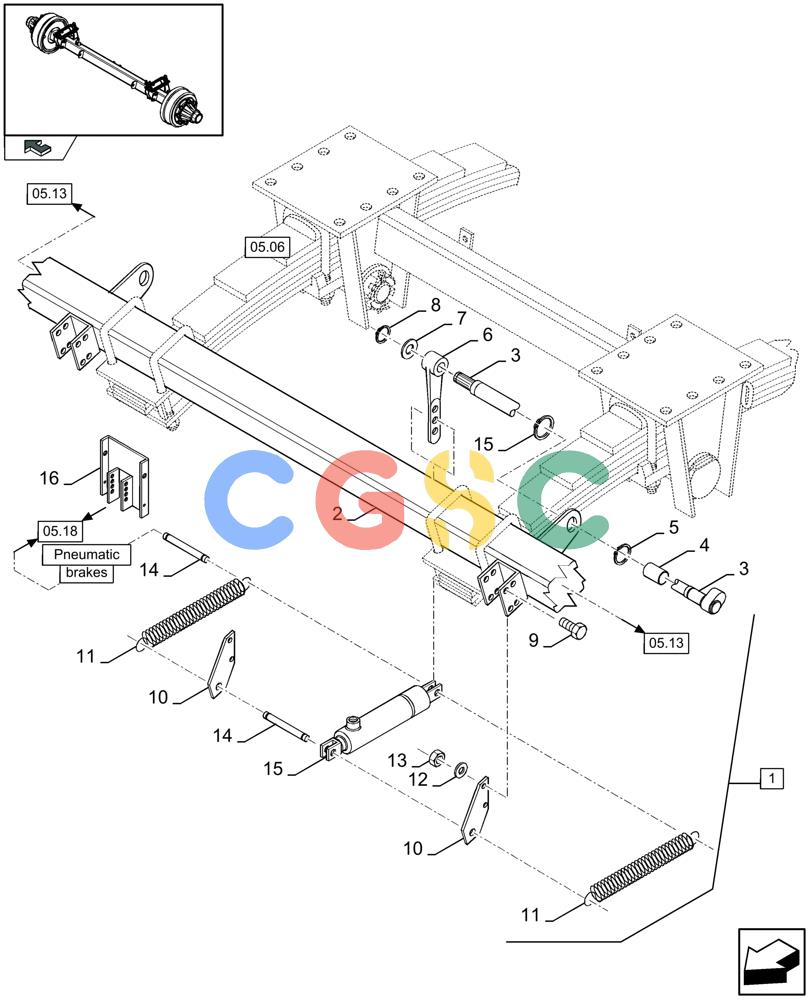

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (05.11[01]) - TANDEM AUTO-STEER AXLE WITH BRAKES, FRONT AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84807542
|
[1] |
FRONT AXLE
|
ZED
(2-15)
|
| 1. |
84807551
|
[1] |
FRONT AXLE
|
ZED
(2-15)
|
| 1. |
84807544
|
[1] |
FRONT AXLE
|
ZED
(2 to 9, 12, 13, 16)
|
| 1. |
84807553
|
[1] |
FRONT AXLE
|
ZED
(2 to 9, 12, 13, 16)
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Shaft
|
| 3. |
84100574
|
[2] |
SHAFT
|
ZED
|
| 4. |
84014235
|
[2] |
SLEEVE
|
ZED
|
| 5. |
80300632
|
[4] |
RETAINER
|
ZED
Superseded by part number: 11068676
|
| 6. |
84429121
|
[2] |
LEVER
|
ZED
|
| 6. |
84807627
|
[1] |
LEVER
|
ZED
RH
|
| 6. |
84807628
|
[1] |
LEVER
|
ZED
LH
|
| 7. |
84814994
|
[2] |
WASHER,26mm ID x 50mm OD x 3mm Thk
|
ZED
|
| 8. |
80370002
|
[2] |
CIRCLIP
|
ZED
Superseded by part number: 370002
|
| 9. |
86509597
|
[8] |
BOLT,Hex, M30 x 14mm, Cl 8.8
|
NH
|
| 10. |
84100491
|
[4] |
SUPPORT
|
ZED
|
| 11. |
84014241
|
[4] |
SPRING
|
ZED
|
| 12. |
80140047
|
[8] |
LOCK WASHER
|
ZED
14 MM
|
| 13. |
80100065
|
[8] |
NUT
|
ZED
M14
|
| 14. |
84014244
|
[4] |
PIN
|
ZED
|
| 15. |
84014242
|
[2] |
CYLINDER
|
ZED
D= 25 MM
|
| 16. |
84100493
|
[2] |
SUPPORT
|
ZED
|
