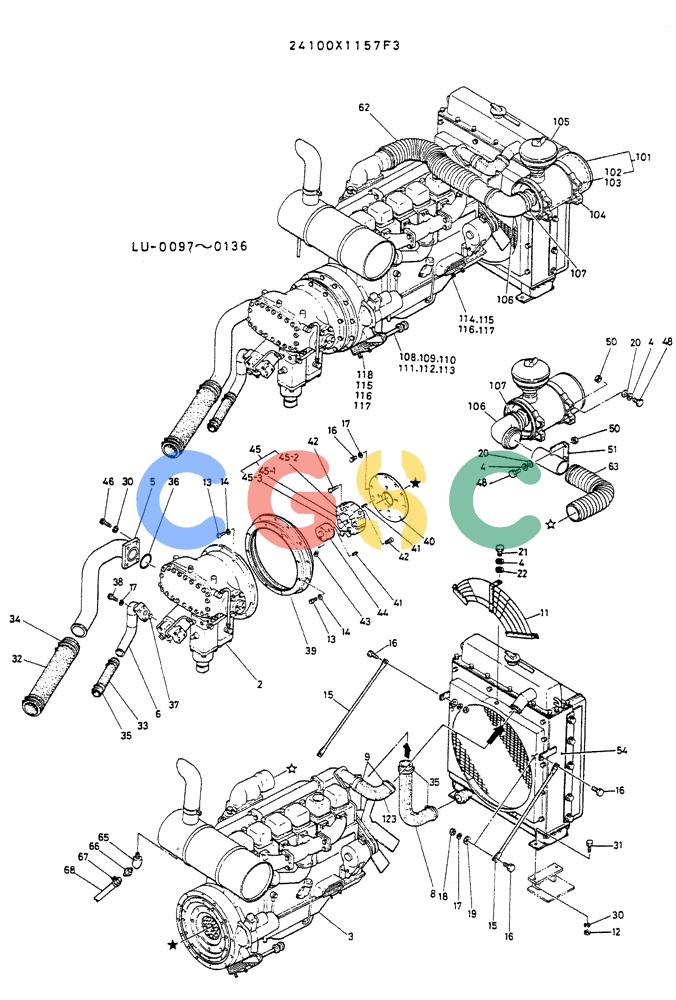

| . . | 24100X1157F3 | [1] | INSTAL, POWER-PLANT (FOR NA) | |
| 2. | 2441U361F1 | [2] | PUMP | PUMP |
| 3. | 2451U207F2 | [2] | ENGINE | KOB |
| 4. | ZW22X10000 | [66] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 5. | 2418N1748 | [2] | PIPE | PIPE |
| 6. | 2418P7450 | [2] | PIPE | KOB |
| 8. | 2420T4994 | [2] | HOSE | KOB |
| 9. | ZC15X07000 | [4] | CLIP | KOB |
| 11. | 2414N2262 | [2] | GUARD, FAN | GUARD, FAN |
| 12. | ZN12C16013 | [8] | NUT | KOBM16x2.0mm |
| 13. | ZS23C10030 | [40] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 14. | ZW22K10000 | [60] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 15. | 2416P4546D5 | [4] | | |
| 16. | ZS12C12030 | [28] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 17. | ZW22X12000 | [36] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 18. | ZN11C12010 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 19. | ZW11X12000 | [8] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 20. | ZW11X10000 | [30] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 21. | ZS16F10030 | [6] | BOLT | BOLT |
| 22. | 2418T5373C2 | [6] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 30. | ZW22X16000 | [8] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 31. | ZS11C16045 | [8] | CAPSCREW | |
| 32. | R18T0001D1 | [2] | HOSE | KOB |
| 33. | 2444Z1697D1 | [2] | HOSE | KOB |
| 34. | ZC15X12500 | [8] | CLIP | KOB, Serial Range: LU.0097—-LU.0131 |
| 34. | 2432R181D10 | [8] | CLAMP | KOB, Start Serial: LU.0132— |
| 35. | ZC15X08000 | [12] | CLIP | KOB, Serial Range: LU.0097—-LU.0131 |
| 35. | 2432R181D3 | [12] | CLAMP, Start Serial: LU.0132\u2014 | CLAMP, Start Serial: LU.0132— |
| 36. | ZD11G11000 | [2] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOBID 109.40 ± 0.91 x OD 115mm |
| 37. | ZD11G05000 | [2] | O-RING,3.1mm Thk x 49.4mm ID, 70 Duro | KOBO-Ring -- ID 49.40 ± 0.45 x OD 55mm |
| 38. | ZS12C12040 | [8] | CAPSCREW M12x1.75x40mm | CAPSCREW M12x1.75x40mm |
| 39. | 2414N1185 | [2] | HOUSING | |
| 40. | 2418P2981 | [2] | FLANGE | KOB |
| 41. | ZP26D05014 | [24] | ROLL PIN | KOB |
| 42. | ZS23C16050 | [16] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW M16x2.0x50mm |
| 43. | ZS73C16022 | [4] | SCREW | KOBM16x2.0x22mm Superseded by part number: ZS73C16025 |
| 44. | 2418P2982 | [2] | COUPLING | KOB |
| 45. | 2418R139F1 | [2] | COUPLING | COUPLING |
| 45-1. | 2418R139S1 | [4] | INSERT | INSERT |
| 45-2. | 2418R139S2 | [4] | INSERT | |
| 45-3. | 2418R139E3 | [1] | FLEXIBLE COUPLING | KOB Superseded by part number: LQ30P01003S001 |
| 46. | ZS12C16040 | [8] | SCREW,Hex, M16 x 40mm | KOBM16x2.0x40mm |
| 48. | ZS12C10025 | [28] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 50. | ZN11C10008 | [12] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 51. | 2418T5022 | [2] | PIPE | |
| 54. | 2452U206F1 | [2] | RADIATOR, SEE FIG. 07-008 | |
| 52. | 2444Z1922 | [1] | HOSE | KOB |
| 63. | 2444Z1923 | [1] | HOSE | KOB |
| 65. | ZG41B06000 | [2] | ELBOW | KOB |
| 66. | 2444Z1293D10 | [2] | LUBE NIPPLE | KOBNipple, Hose -- 3/8" PTx46mm Long |
| 67. | ZC15X01300 | [2] | CLIP | KOB |
| 68. | 2420Z795D2 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 77254532, HX11Y07100DX |
| 101. | VA3003090051 | [2] | AIR CLEANER ASSY (MITSUBHI PARTS) | AIR CLEANER ASSY (MITSUBHI PARTS) |
| 102. | VA3113016400 | [2] | AIR CLEANER | KOBELEMENT, OUTER (MITSUBHI PARTS) |
| 103. | VA3003083100 | [2] | AIR FILTER | KOBINNER (MITSUBHI PARTS) |
| 104. | VA3113016200 | [4] | BAND (MITSUBHI PARTS) | BAND (MITSUBHI PARTS) |
| 105. | VA3113019100 | [2] | CAP ASSY (MITSUBHI PARTS) | CAP ASSY (MITSUBHI PARTS) |
| 106. | VA3113017700 | [2] | ELBOW | KOBRUBBER (MITSUBHI PARTS) |
| 107. | VA3123011850 | [4] | HOSE CLAMP | KOB(MITSUBHI PARTS) |
| 108. | VAMF430730 | [24] | NUT | KOB(MITSUBHI PARTS) |
| 109. | VA3001453500 | [4] | PIECE (MITSUBHI PARTS) | PIECE (MITSUBHI PARTS) |
| 110. | VA3001490900 | [8] | WASHER | KOB(MITSUBHI PARTS) |
| 111. | VA3001453600 | [16] | PLATE | KOBSEAT (MITSUBHI PARTS) |
| 112. | VA3001453200 | [16] | SEAT | KOBRUBBER (MITSUBHI PARTS) |
| 113. | VA3001453401 | [4] | ROD, THRUST(MITSUBHI PARTS) | |
| 114. | VA3091490900 | [4] | RUBBER SLEEVE | KOBCUSHION (MITSUBHI PARTS) |
| 115. | VAMF430008 | [24] | NUT | KOB(MITSUBHI PARTS) |
| 116. | VAMF450408 | [24] | WASHER | KOB(MITSUBHI PARTS) |
| 117. | VAMH005009 | [24] | WASHER PLAIN (MITSUBHI PARTS) | WASHER PLAIN (MITSUBHI PARTS) |
| 118. | VA3181492501 | [4] | CUSHION | KOB(MITSUBHI PARTS) |
| 120. | VAMH02008 | [8] | CLAMP, HOSE (MITSUBHI PARTS) | |
| 121. | VA3003025500 | [2] | HOSE (MITSUBHI PARTS) | |
| 122. | VA3094790300 | [2] | HOSE | KOB(MITSUBHI PARTS) |
| 123. | VA3094792500 | [1] | ELBOW | KOBRUBBER (MITSUBHI PARTS) Superseded by part number: VAME440664 |
| 124. | VAMS666021 | [2] | CLAMP, HOSE (MITSUBHI PARTS) | |
