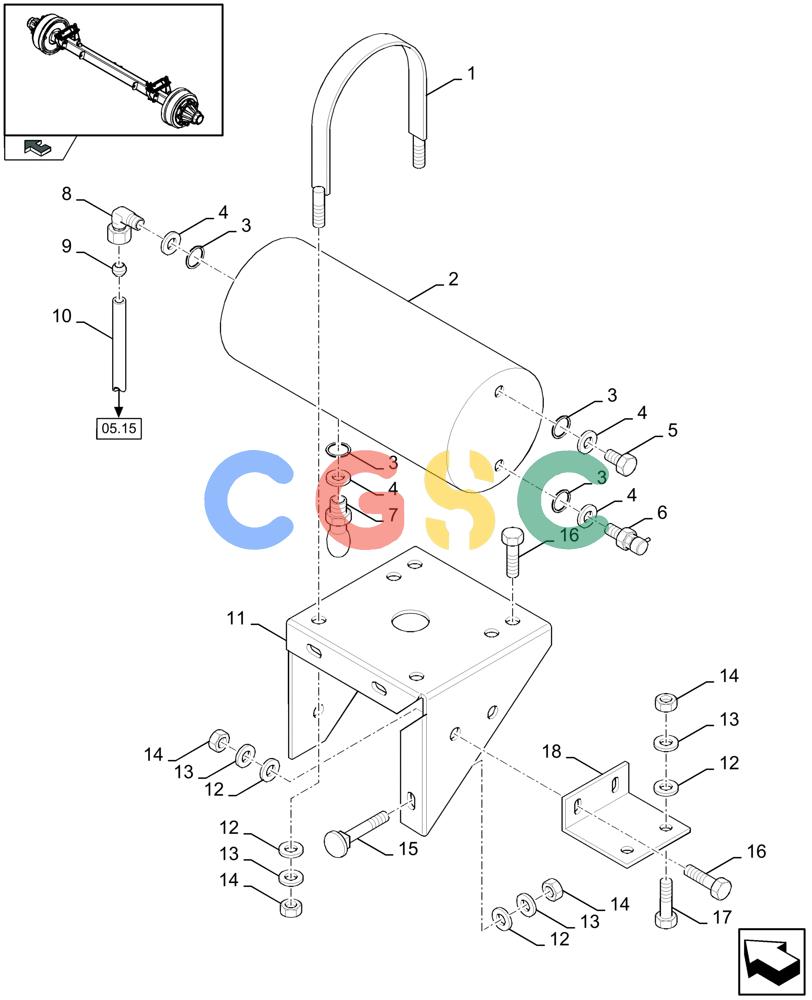

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (05.16[01]) - PNEUMATIC BRAKES, AIR RESERVOIR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89512522
|
[2] |
SUPPORT
|
ZED
Superseded by part number: 87028121
|
| 2. |
84078145
|
[1] |
AIR RESERVOIR
|
ZED
|
| 3. |
89512529
|
[4] |
O-RING
|
ZED
Superseded by part number: 9512529
|
| 4. |
89512530
|
[4] |
WASHER, THRUST
|
ZED
Superseded by part number: 3076153R1
|
| 5. |
89512523
|
[1] |
PLUG
|
ZED
Superseded by part number: 9512523
|
| 6. |
89512540
|
[1] |
HYD CONNECTOR
|
ZED
Superseded by part number: 443287A1
|
| 7. |
89512541
|
[1] |
DRAIN PLUG
|
ZED
Superseded by part number: 9512541
|
| 8. |
89512525
|
[1] |
ELBOW
|
ZED
Superseded by part number: 9512525
|
| 9. |
89512527
|
[1] |
FERRULE
|
ZED
Superseded by part number: 9512527
|
| 10. |
89512535
|
[1] |
HOSE
|
ZED
L= 3 M Superseded by part number: 87359227
|
| 11. |
84007193
|
[1] |
SUPPORT
|
ZED
|
| 12. |
80378244
|
[13] |
LOCK WASHER
|
ZED
10.5 MM Superseded by part number: 378244
|
| 13. |
80140045
|
[13] |
WASHER
|
ZED
Belleville, M10 Superseded by part number: 140045
|
| 14. |
100016
|
[13] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 15. |
80338949
|
[3] |
CARRIAGE BOLT
|
ZED
Short Neck, CL 8.8, M10 x 1.5 x 25 Superseded by part number: 338949
|
| 16. |
80043139
|
[6] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 17. |
80043140
|
[2] |
BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
ZED
Superseded by part number: 43140
|
| 18. |
84007195
|
[1] |
BRACKET
|
ZED
|
