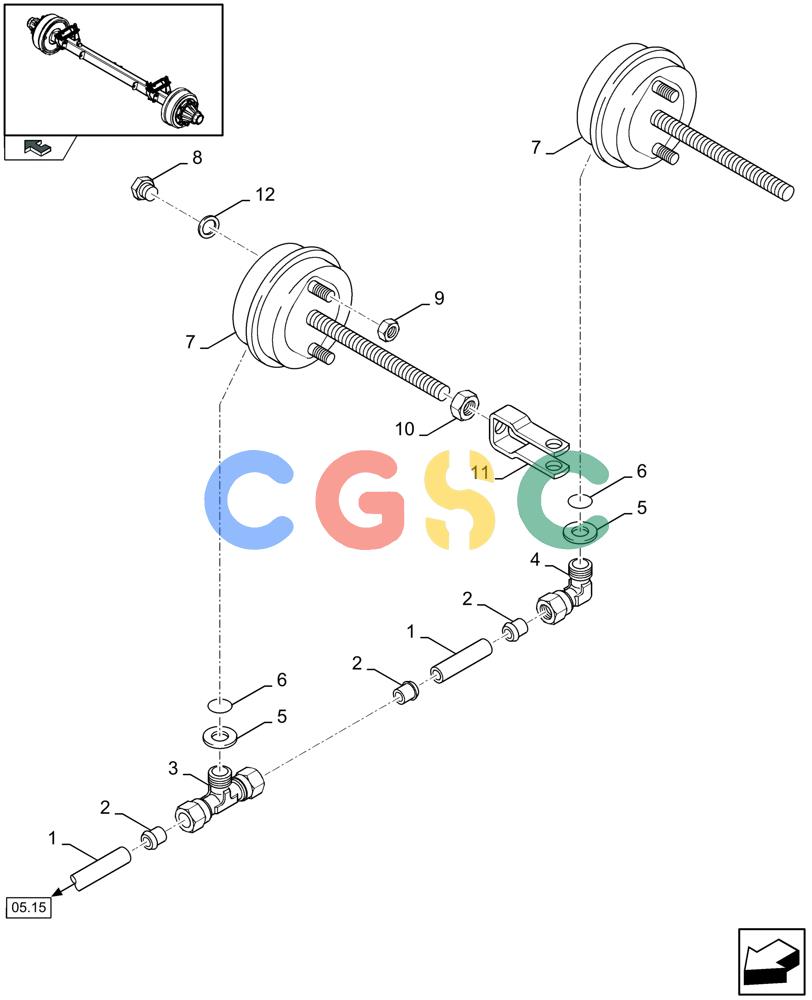

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (05.17[01]) - PNEUMATIC BRAKES, SINGLE AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
281 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89512535
|
[1] |
HOSE
|
ZED
L= 3 M Superseded by part number: 87359227
|
| 2. |
89512527
|
[1] |
FERRULE
|
ZED
Superseded by part number: 9512527
|
| 3. |
84014954
|
[1] |
3 WAY CONNECTION
|
ZED
|
| 4. |
84007190
|
[1] |
ELBOW,M16 x 1.5 Male
|
ZED
|
| 5. |
89512533
|
[1] |
WASHER, THRUST
|
ZED
Superseded by part number: 9512533
|
| 6. |
89512532
|
[1] |
O-RING
|
ZED
Superseded by part number: 9512532
|
| 7. |
84012958
|
[1] |
CYLINDER
|
ZED
|
| 7. |
84014962
|
[2] |
CYLINDER
|
ZED
|
| 8. |
84014311
|
[1] |
PLUG
|
ZED
|
| 9. |
80331192
|
[1] |
NUT
|
ZED
M16 x 1.5 Superseded by part number:
|
| 10. |
80364164
|
[1] |
NUT
|
ZED
Superseded by part number: 10791411
|
| 11. |
84014245
|
[1] |
YOKE
|
ZED
|
| 12. |
84014312
|
[1] |
RING
|
ZED
|
