纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (01-053) - CONDITIONER, AIR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
598 次

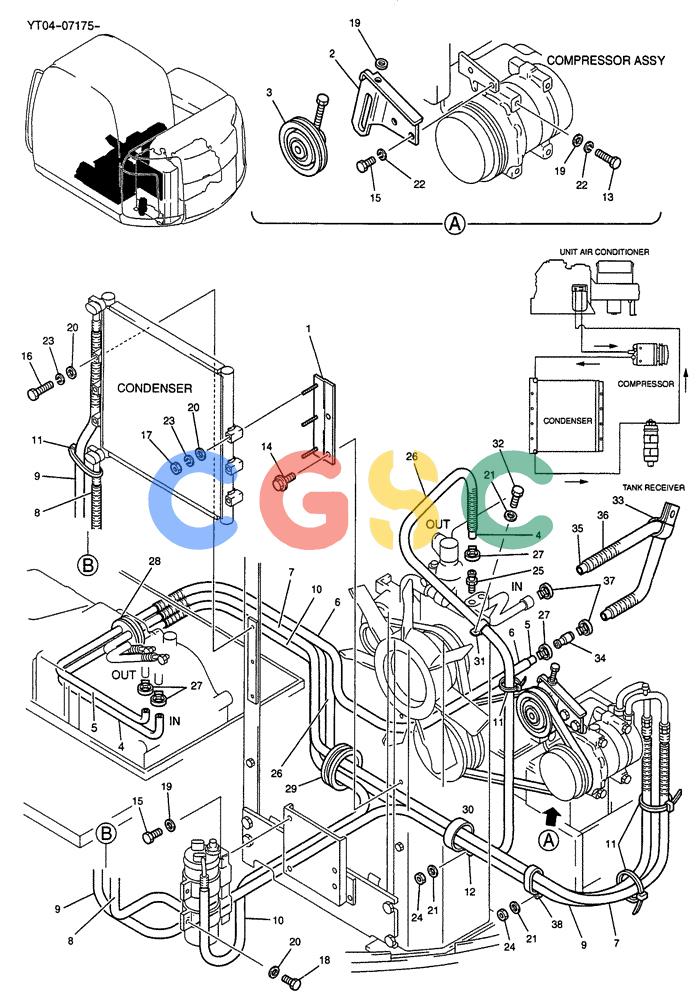

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT20M00011F1 | [1] | CONDITIONER, AIR | |
| 1. | YT20M01112P1 | [1] | SUPPORT | KOB |
| 2. | YT20M01063P1 | [1] | BRACKET | KOB |
| 3. | LE20M01055P1 | [1] | PULLEY | KOBASSY |
| 4. | R18T0026D50 | [1] | HOSE | KOB |
| 5. | R18T0026D5 | [1] | HOSE | KOB |
| 6. | YN20M01046D8 | [1] | TUBE,22.10mm ID x 27.00mm OD x 1400.00mm | KOBProtective Plastic |
| 7. | YN20M01094D6 | [1] | TUBE,25mm ID x 30mm OD x 1500mm Length | KOB |
| 8. | 2418Z1333D5 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 400mm Length | KOB |
| 9. | 2418Z1333D23 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1900mm Length | KOBProtective Plastic |
| 10. | 2418Z1333D9 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1250mm Length | KOB |
| 11. | PY01P01043D5 | [4] | CABLE TIE,301mm L | KOB |
| 12. | YW11P01010P1 | [1] | CLIP | KOB |
| 13. | ZS18C08100 | [4] | SCREW,Hex, M8 x 100mm | KOB |
| 14. | ZM22C08025 | [2] | BOLT | KOBSEMS |
| 15. | ZS18C08016 | [4] | SCREW,Hex, M8 x 16mm | KOBCAP |
| 16. | ZS18C06050 | [3] | SCREW,Hex, M6 x 50mm | KOBCAP |
| 17. | ZN18C06005 | [3] | NUT | KOB |
| 18. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBCAP |
| 19. | ZW16X08000 | [7] | WASHER | KOB |
| 20. | ZW16X06000 | [8] | WASHER | KOB Superseded by part number: 86588450 |
| 21. | ZW16X10000 | [3] | WASHER | KOB |
| 22. | ZW26X08000 | [6] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 23. | ZW26X06000 | [6] | LOCK WASHER | KOB |
| 24. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 25. | 2444Z1630 | [1] | FITTING | KOB |
| 26. | YT20M01111D1 | [1] | TUBE | KOB |
| 27. | ZC16X02000 | [4] | CLIP | KOB |
| 28. | YT20M01043P1 | [1] | GROMMET | KOB |
| 29. | YT20M01086P1 | [1] | GROMMET | KOB |
| 30. | YT20M01062P1 | [1] | BELT | KOBV, (COG A45) |
| 31. | 2432R225D11 | [1] | CLIP | KOB Superseded by part number: ZC46X29011 |
| 32. | ZS18C10016 | [1] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm |
| 33. | ZC46X29011 | [1] | CLIP | KOB |
| 34. | 2418T10455 | [1] | PIPE | KOB |
| 35. | 2444Z2220D18 | [1] | HOSE | KOB |
| 36. | YN20M01094DA | [1] | TUBE,25mm ID x 30mm OD x 100mm Length | KOB |
| 37. | ZC16X02400 | [2] | CLIP | KOB |
| 38. | 2432R226D13 | [1] | CLIP | KOB |
