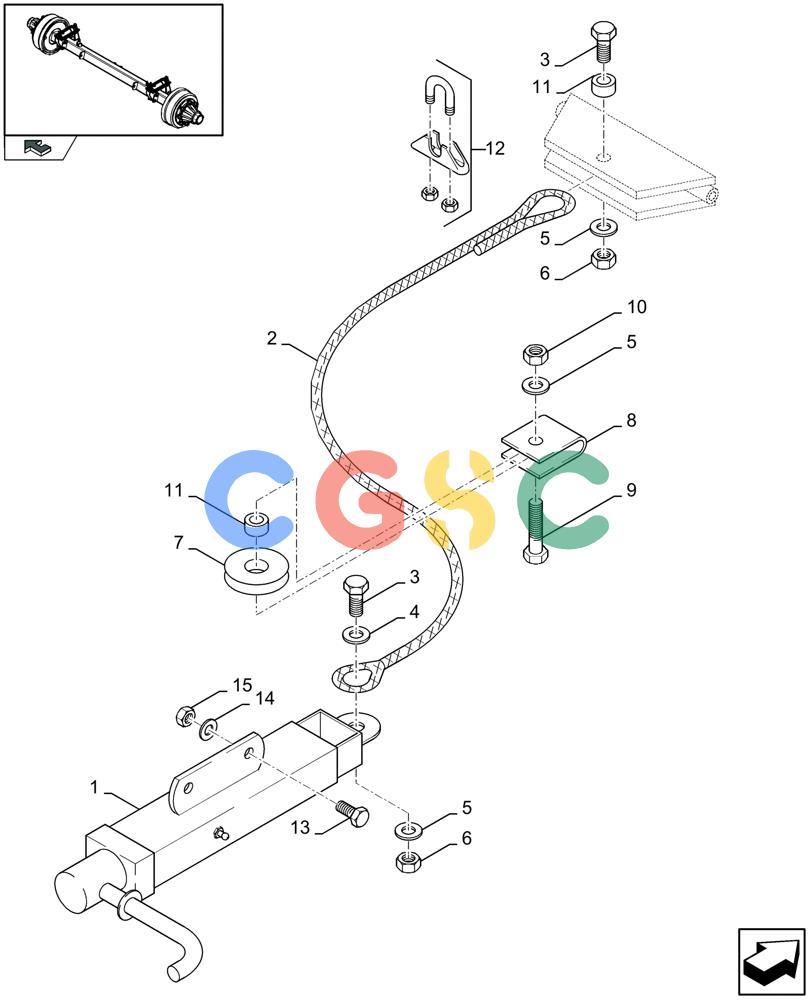

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (05.19[01]) - PARKING BRAKES - SINGLE AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
153 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84078617
|
[1] |
LEVER
|
ZED
Superseded by part number: 84274758
|
| 2. |
84042718
|
[1] |
CABLE
|
ZED
Superseded by part number: 87488800
|
| 3. |
80120079
|
[2] |
BOLT
|
ZED
M12 x 40 Superseded by part number: 86629541
|
| 4. |
80378245
|
[1] |
WASHER
|
ZED
12 MM Superseded by part number: 378245
|
| 5. |
80140046
|
[3] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 6. |
80100038
|
[2] |
NUT
|
ZED
M12 Superseded by part number: 100038
|
| 7. |
84078395
|
[1] |
ROLLER,60mm OD x 11.5mm L
|
ZED
|
| 8. |
84078396
|
[1] |
BRACKET
|
ZED
|
| 9. |
89706702
|
[1] |
SCREW
|
ZED
M12 x 50 Superseded by part number: 9706702
|
| 10. |
100018
|
[1] |
NUT,M12, Cl 8, ZND
|
NNA
Superseded by part number: 892-11012, 892-11012, 9706685
|
| 11. |
89838358
|
[2] |
RING
|
ZED
Superseded by part number: 9838358
|
| 12. |
84607247
|
[1] |
WIRE CLAMP
|
ZED
|
| 13. |
80043139
|
[2] |
BOLT,M10 x 25mm
|
ZED
Superseded by part number: 11106231
|
| 14. |
80140045
|
[2] |
WASHER
|
ZED
Belleville, M10 Superseded by part number: 140045
|
| 15. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
