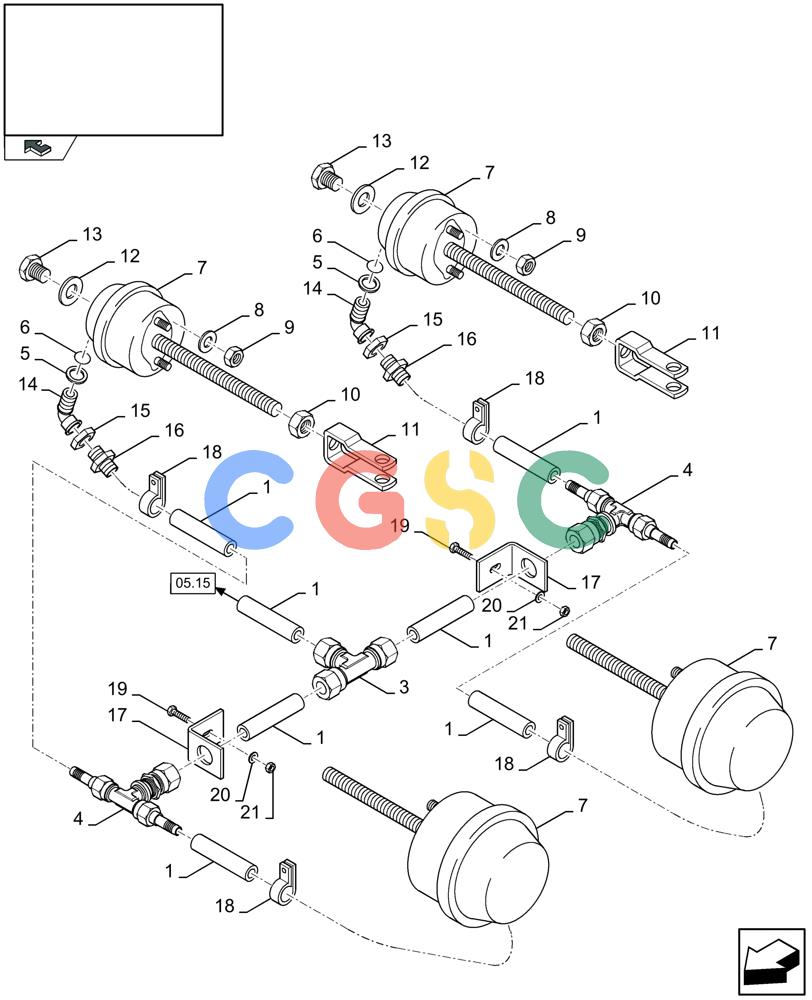

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (05.18[01]) - PNEUMATIC BRAKES - TANDEM AXLE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
722 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
89512535
|
[1] |
HOSE
|
ZED
L= 3 M Superseded by part number: 87359227
|
| 2. |
89512527
|
[1] |
FERRULE
|
ZED
Superseded by part number: 9512527
|
| 3. |
84100075
|
[1] |
3 WAY CONNECTION
|
ZED
|
| 4. |
84100076
|
[1] |
3 WAY CONNECTION
|
ZED
|
| 5. |
89512533
|
[1] |
WASHER, THRUST
|
ZED
Superseded by part number: 9512533
|
| 6. |
89512532
|
[1] |
O-RING
|
ZED
Superseded by part number: 9512532
|
| 7. |
84078896
|
[2] |
CYLINDER
|
ZED
Rear
|
| 7. |
84320807
|
[2] |
CYLINDER
|
ZED
Front
|
| 8. |
80140046
|
[1] |
WASHER
|
ZED
Superseded by part number: 140046
|
| 9. |
80330327
|
[1] |
NUT
|
ZED
M12 x 1.5 Superseded by part number: 330327
|
| 10. |
80364164
|
[1] |
NUT
|
ZED
Superseded by part number: 10791411
|
| 11. |
84014245
|
[1] |
YOKE
|
ZED
|
| 12. |
84014312
|
[1] |
RING
|
ZED
|
| 13. |
84014311
|
[1] |
PLUG
|
ZED
|
| 14. |
84100254
|
[4] |
HYD CONNECTOR
|
ZED
|
| 16. |
89512534
|
[4] |
HYD CONNECTOR
|
ZED
Superseded by part number: 9512534
|
| 17. |
84100226
|
[2] |
BRACKET
|
ZED
|
| 18. |
89706732
|
[4] |
CLAMP
|
ZED
Superseded by part number: 86637999
|
| 19. |
80120100
|
[2] |
BOLT,M6 x 1 x 20mm
|
ZED
Superseded by part number: 120100
|
| 20. |
80322357
|
[1] |
LOCK WASHER,Belleville, M6
|
ZED
6.1 MM Superseded by part number: 322357
|
| 21. |
15896221
|
[1] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
