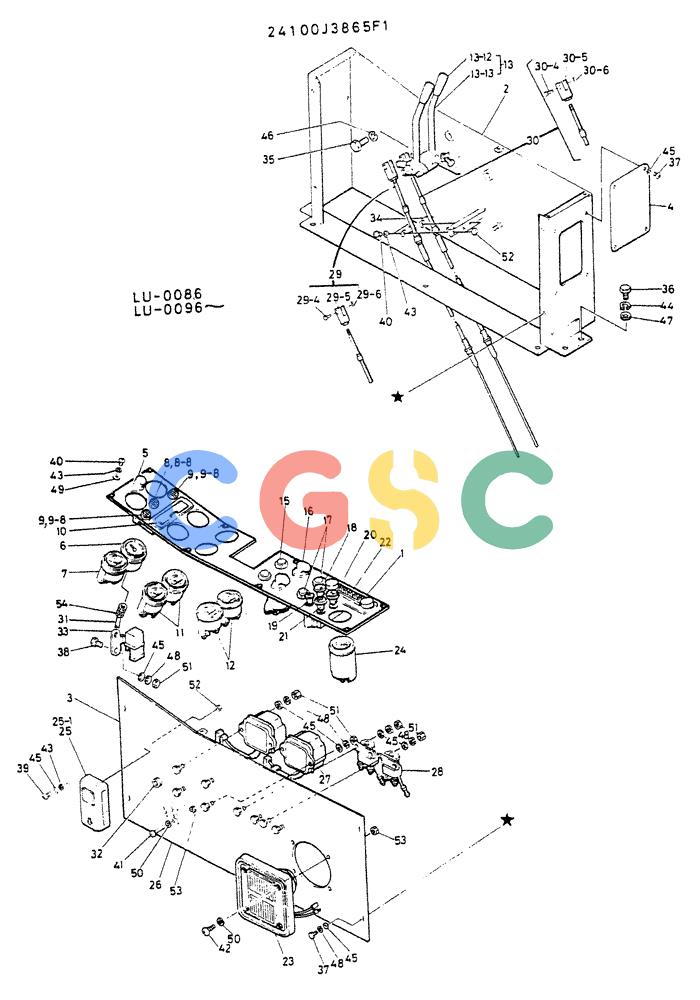

| . . | 24100J3865F1 | [1] | PANEL ASSY, INST | |
| 1. | 2416P6187 | [1] | PANEL | |
| 2. | 2416J630 | [1] | BRACKET | |
| 3. | 2416N2301 | [1] | BRACKET | |
| 4. | 2414T1047 | [1] | COVER | |
| 5. | R79P0007F1 | [1] | FILTER ASSY | KOB |
| 6. | 2489U122 | [1] | PRESSURE GAUGE | KOB |
| 7. | R79K0002 | [1] | FUEL GAUGE | KOB |
| 8. | 2456R149F2 | [1] | FILTER ASSY | KOB |
| 8-8. | 4056Z20D1 | [1] | BULB | KOB |
| 9. | 2456R149F1 | [2] | LAMP | KOB |
| 9-6. | 4056Z20D1 | [1] | BULB | KOB |
| 10. | R27P0008 | [1] | ASH TRAY | KOB |
| 1 1. | 2489U136 | [2] | SWITCH | KOB |
| 12. | 2489U121 | [2] | OIL PRESSURE GAUGE | KOB |
| 13. | 24100P393F2 | [1] | LEVER ASSY | LEVER ASSY |
| 13-12. | 2406T971 | [2] | GRIP | KOB |
| 13-13. | 2406P1727 | [2] | LEVER | |
| 17. | 2479Z494D1 | [2] | SWITCH | KOB |
| 18. | R79P0088 | [1] | SWITCH | KOB |
| 19. | 2479Z214 | [1] | CIGARETTE LIGHTER | KOB |
| 20. | R79T0058 | [1] | SWITCH | KOB |
| 21. | R79T0001 | [1] | SWITCH | KOB |
| 22. | 4079U2F1 | [1] | RADIO | KOB |
| 23. | 2479U244 | [1] | SPEAKER | KOB |
| 24. | 2489U142 | [1] | HOURMETER | KOB |
| 25. | 2479R243F1 | [1] | FUSE BOX | KOB |
| 25-1. | 2479R243S1 | [7] | FUSE | KOB15 Amp |
| 26. | 2479Z495 | [1] | CONTROL | KOB |
| 29. | R06P0039D4F1 | [1] | CABLE | KOB |
| 29-4. | B19T0175 | [1] | PIN | KOB |
| 29-5. | R06T0042D1 | [1] | END | KOB |
| 29-6. | ZP15K01210 | [1] | LOCK PIN | KOB |
| 30. | R06P0039D7F1 | [1] | WIRE HARNESS | KOB |
| 30-4. | R06T0042D1 | [1] | END | KOB |
| 30-5. | B19T0175 | [1] | PIN | KOB |
| 30-6. | ZP15K01210 | [1] | LOCK PIN | KOB |
| 31. | ZX15K04060 | [1] | TUBE, N2 | TUBE, N2 |
| 32. | R16T0063D4 | [1] | GROMMET | KOB |
| 33. | 2479R478 | [2] | RELAY | RELAY |
| 34. | R16T0402D1 | [2] | CLAMP | KOB |
| 35. | ZS11C12030 | [2] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 36. | ZS11C10020 | [7] | CAPSCREW M10x1.50x20mm | CAPSCREW M10x1.50x20mm |
| 37. | ZS11C06012 | [8] | SCREW,Hex, M6 x 12mm, Cl 4.8 | KOBM06x1.0x12mm Superseded by part number: ZS18C06012 |
| 38. | ZS11C06016 | [2] | CAPSCREW -- M06x1.0x16mm | |
| 39. | ZS31C05016 | [10] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOBM05x0.8x16mm |
| 40. | ZS31C05012 | [12] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBM05x0.8x12mm |
| 41. | ZS31C04040 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 40mm | KOBM04x0.7x40mm |
| 42. | ZS31C04030 | [4] | SCREW,Phillips Drive, Pan HD, M4 x 30mm | KOBM04x0.7x30mm |
| 43. | ZW11X05000 | [10] | WASHER | KOB Superseded by part number: ZW16X05000 |
| 44. | ZW11X10000 | [7] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 45. | ZW11X06000 | [14] | WASHER | KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 46. | ZW22X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 47. | ZW22X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 46. | ZW22X06000 | [18] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 49. | ZW22X05000 | [22] | LOCK WASHER | KOBID 05 x OD 09.2 x Th 1.3mm |
| 50. | ZW22X04000 | [6] | LOCK WASHER | KOBID 04 x OD 07.6 x Th 1.0mm Superseded by part number: ZW26X04000 |
| 51. | ZN11C06005 | [22] | NUT | KOBNUT M06x1.0mm Superseded by part number: ZN18C06005 |
| 52. | ZN11C05004 | [6] | NUT M05x0.8mm | NUT M05x0.8mm |
| 53. | ZN11C04003 | [6] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| 54. | ZH21K04004 | [1] | HYD CONNECTOR | KOB |
| 15. | VA3096690100 | [2] | HEATER INDICATOR (MITSUBISHI PARTS) | HEATER INDICATOR (MITSUBISHI PARTS) |
| 16. | VA3089005200 | [2] | SWITCH | KOBSTARTER (MITSUBISHI PARTS) |
| 27. | VA3096690200 | [2] | RELAY | KOBSTARTER (MITSUBISHI PARTS) |
| 28. | VA3096600071 | [2] | RELAY | KOBHEATER (MITSUBISHI PARTS) |
