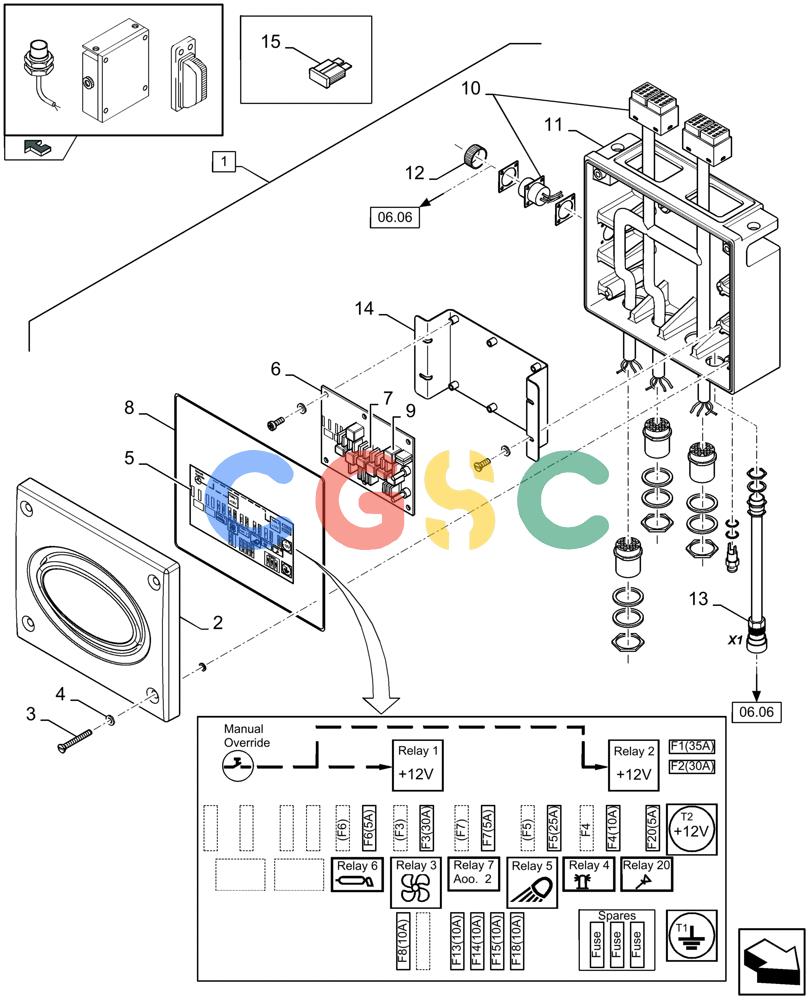

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (06.01A[01]) - CONTROL BOX - C479 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
644 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84448293
|
[1] |
ECU
|
ZED
(2-15)
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
|
| 5. |
84448295
|
[1] |
DECAL
|
ZED
|
| 6. |
84458216
|
[1] |
PRINTED CIRCUIT BOAR
|
ZED
|
| 7. |
84807470
|
[1] |
FUSE,35A, Micro, Blue - Green
|
ZED
35 Amp
|
| 7. |
84429451
|
[3] |
FUSE
|
ZED
30 Amp Superseded by part number: 92277
|
| 7. |
84100298
|
[5] |
FUSE
|
ZED
10 Amp Superseded by part number: 9811773
|
| 7. |
84807488
|
[1] |
FUSE
|
ZED
3 Amp Superseded by part number: 86503942
|
| 7. |
84100299
|
[1] |
FUSE,25A, Micro, Clear
|
ZED
25 Amp
|
| 7. |
84320044
|
[4] |
FUSE,5 Amp
|
ZED
Superseded by part number: 87693742
|
| 9. |
86509590
|
[3] |
RELAY
|
NH
(small) Superseded by part number: 87414866
|
| 9. |
84000651
|
[4] |
RELAY
|
ZED
, Serial Range: -C367 Superseded by part number: 86529089
|
| 9. |
86529089
|
[4] |
RELAY
|
NH
, Start Serial: D368
|
| 10. |
84448294
|
[1] |
WIRE HARNESS
|
ZED
|
| 13. |
84989976
|
[1] |
WIRE HARNESS
|
ZED
|
