神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-015) - INSTAL, TACHOMETER (FOR VIETNAM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
675 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

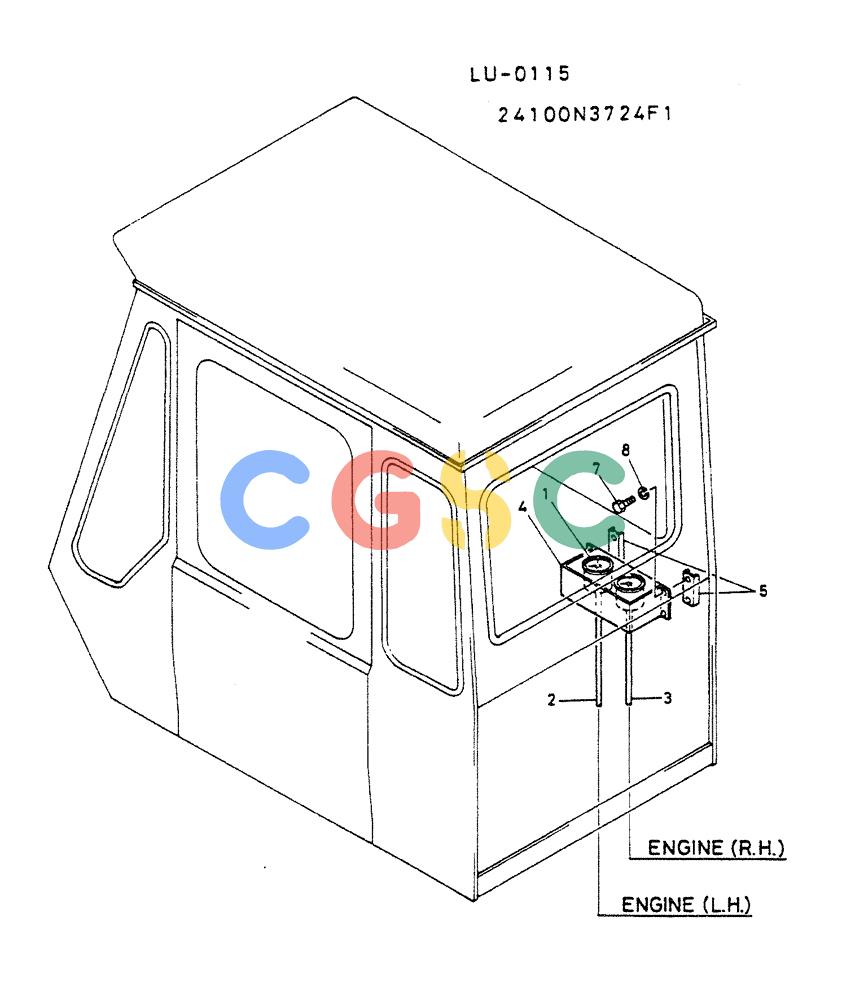

| . . | 24100N3724F1 | [1] | INSTAL, TACHOMETER | |
| 1. | 2489U166 | [2] | TACHOMETER | TACHOMETER |
| 2. | 2406R137D11 | [1] | CABLE | KOB |
| 3. | 2406R137D14 | [1] | CABLE, TACHOMETER | CABLE, TACHOMETER |
| 4. | 2416P7908 | [1] | PANEL, INSTRUMENT | PANEL, INSTRUMENT |
| 5. | 2427P2450 | [1] | REWORK, CAB | REWORK, CAB |
| 7. | ZS16C08016 | [4] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 8. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
