神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-016) - HEATER, INST Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
236 次

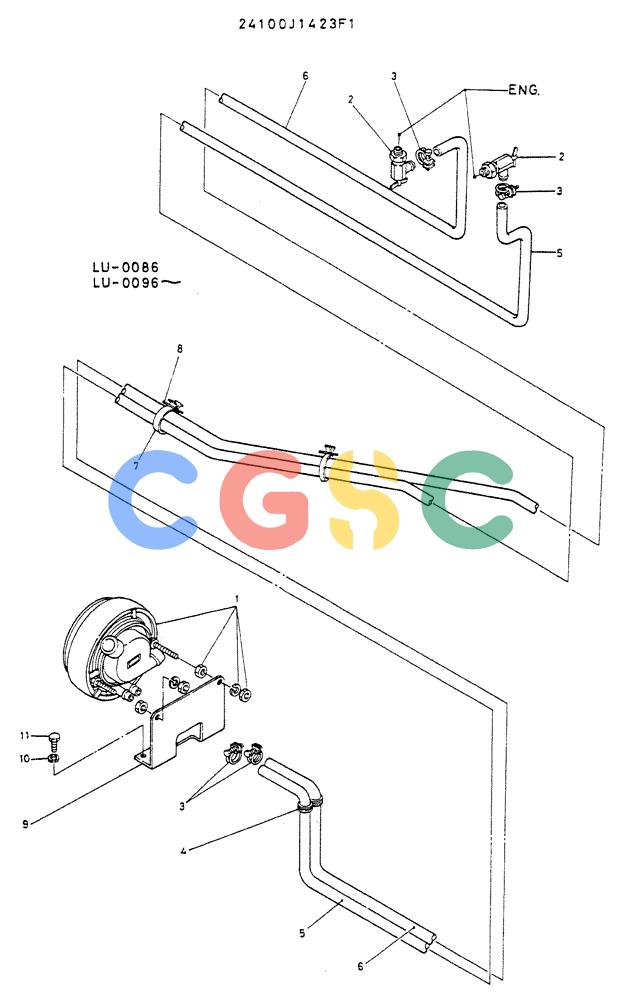

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1423F1 | [1] | HEATER, INST | |
| 1. | R79N0007 | [1] | HEATER | KOB |
| 2. | R44T0180 | [2] | COCK | KOB |
| 3. | R16T0238D1 | [4] | CLIP | KOB |
| 4. | R16T0239 | [2] | GROMMET | GROMMET |
| 5. | R18T0026D17 | [1] | HOSE | KOBID 12 x OD 22 x 3300mm |
| 6. | R18T0026D13 | [1] | HOSE | KOBID 12 x OD 22 x 3800mm |
| 7. | 2432Z186D1 | [5] | CLIP | CLIP |
| 8. | 2432Z187 | [5] | RING, CLIP | RING, CLIP |
| 9. | 2416P5414 | [1] | BRACKET | BRACKET |
| 10. | ZS11C10016 | [4] | CAPSCREW M10x1.50x16mm | CAPSCREW M10x1.50x16mm |
| 11. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
