神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-017) - INSTAL, HEATER (FOR NORWAY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
245 次

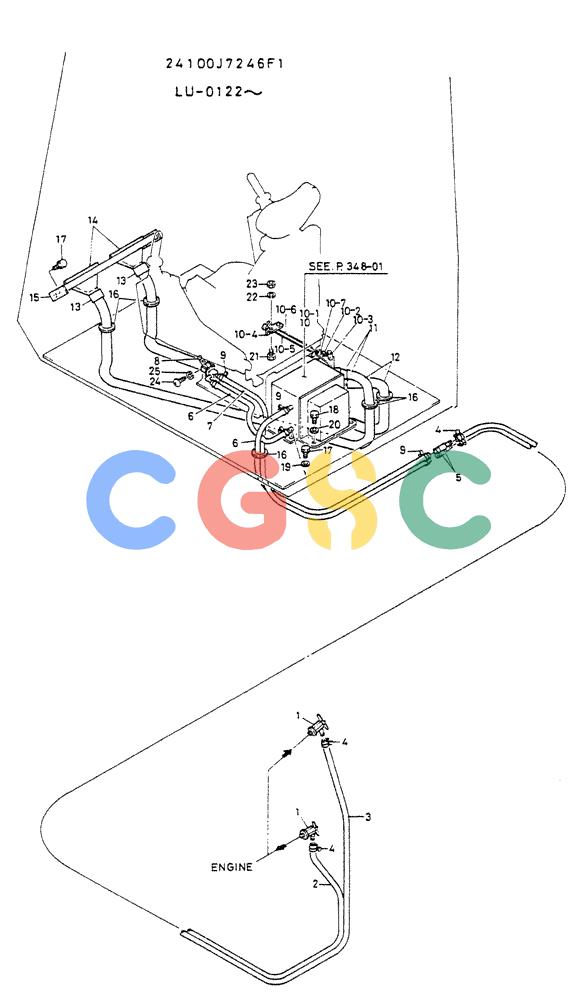

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7246F1 | [1] | INSTAL, HEATER | |
| 1. | R44T0180 | [2] | COCK | KOB |
| 2. | R18T0026D17 | [1] | HOSE | KOBID 12 x OD 22 x 3300mm |
| 3. | R18T0026D13 | [1] | HOSE | KOBID 12 x OD 22 x 3800mm |
| 4. | R16T0238D1 | [4] | CLIP | KOB |
| 5. | 2418T10455 | [2] | PIPE | KOB |
| 6. | 2444Z2220D3 | [2] | HOSE | KOB |
| 7. | 2444Z2220D4 | [1] | HOSE | KOB |
| 8. | 2436Z390 | [1] | HYDRAULIC VALVE | KOB |
| 9. | ZC15X02300 | [6] | CLIP | KOB |
| 10. | 24100P1066F1 | [1] | HEATER ASSY | HEATER ASSY |
| 10-1. | 2479U371 | [1] | HEATER | KOBHEATER ASSY, SEE FIG. 07-022 |
| 10-2. | 2416T10995 | [1] | BRACKET | BRACKET |
| 10-3. | 2406T1681 | [1] | LEVER | LEVER |
| 10-4. | 2418T10746 | [1] | PLATE | PLATE |
| 10-5. | 2406Z299 | [1] | WIRE HARNESS | KOB |
| 10-6. | 2406Z298 | [1] | WIRE HARNESS | KOB |
| 10-7. | 2432Z436 | [2] | CLAMP | CLAMP |
| 11. | 2444Z2158 | [2] | SOCKET | KOBSOCKET |
| 12. | 2444Z2156D4 | [2] | HOSE | KOB |
| 13. | 2444Z2227 | [2] | HYD CONNECTOR | KOB |
| 14. | 2434Z163 | [2] | NOZZLE | KOBASSY |
| 15. | 2416T10935 | [1] | BRACKET | |
| 16. | 2420Z699 | [5] | GROMMET | KOB |
| 17. | ZM11C10020 | [6] | SCREW | KOBM10x1.50x20mm (Incls. Lockwasher) Superseded by part number: ZM12C10020 |
| 18. | ZM11C06016 | [2] | BOLT | KOB |
| 19. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 20. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 21. | ZS16C08016 | [2] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 22. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 23. | ZN16C08007 | [2] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 24. | ZS31C04010 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 10mm | KOBM04x0.7x10mm |
| 25. | ZW26X04000 | [2] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
