神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-023) - FAN ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
423 次

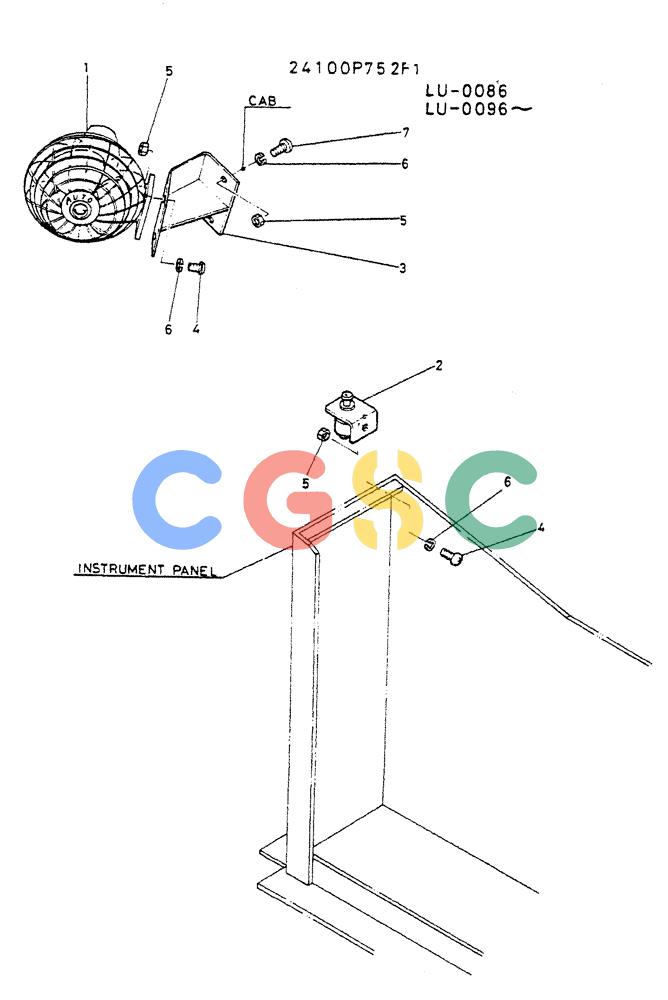

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P752F1 | [1] | FAN ASSY | |
| 1. | 2474U101F1 | [1] | FAN, AUTOMOBILE | FAN, AUTOMOBILE |
| 2. | 2479R539 | [1] | SWITCH | KOB |
| 3. | 2416P5369 | [1] | BRACKET | BRACKET |
| 4. | ZS31C05012 | [3] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBM05x0.8x12mm |
| 5. | ZN11C05000 | [5] | NUT | |
| 6. | ZW22X05000 | [5] | LOCK WASHER | KOBID 05 x OD 09.2 x Th 1.3mm |
| 7. | ZS31C05030 | [2] | MACHINE SCREW M05x0.8x30mm | MACHINE SCREW M05x0.8x30mm |
