神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-022) - HEATER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
827 次

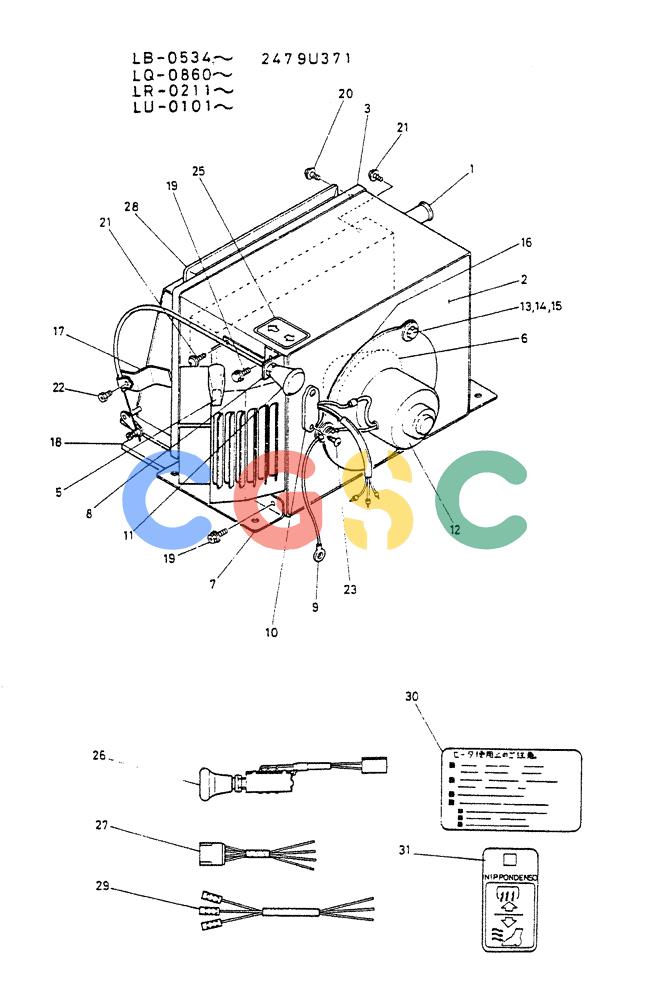

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2479U371 | [1] | HEATER | KOB |
| 1. | 2479U371S1 | [1] | RADIATOR | KOB |
| 2. | 2479U371S2 | [1] | CASE | KOB |
| 3. | 2479U371S3 | [1] | COVER ASSY | |
| 4. | 2479U371S4 | [1] | DUCT | KOB |
| 5. | 2479U371S5 | [1] | DUCT ASSY | |
| 6. | 2479U371S6 | [1] | FAN | KOBASSY |
| 7. | 2479U371S7 | [2] | BRACKET | |
| 8. | 2479U371S8 | [1] | BRACKET | |
| 9. | 2479U371S9 | [1] | HARNESS | KOB |
| 10. | 2479U371S10 | [1] | RESISTOR | KOB |
| 11. | 2479U371S11 | [1] | CABLE | KOB |
| 12. | 2479U371S12 | [1] | MOTOR | KOBASSY |
| 13. | 2479U371S13 | [3] | SCREW | KOBSEMS |
| 14. | 2479U371S14 | [3] | INSERT | KOB |
| 15. | 2479U371S15 | [3] | BUSHING | KOB |
| 16. | 2479U371S16 | [1] | PACKING | KOB |
| 17. | 2479U371S17 | [5] | BRACKET | KOB |
| 18. | 2479U371S18 | [1] | PACKING | KOB |
| 19. | 2479U371S19 | [5] | SET SCREW | KOBSEMS-BOLT |
| 20. | 2479U371S20 | [4] | CAPSCREW | |
| 21. | 2479U371S21 | [8] | CAPSCREW | |
| 22. | 2479U371S22 | [1] | SCREW | KOBCAP |
| 23. | 2479U371S23 | [2] | SCREW | KOBCAPSCREW |
| 25. | 2479U371S25 | [1] | LABEL | KOB |
| 26. | 2479U371S26 | [1] | SWITCH | KOBASSY |
| 27. | 2479U371S27 | [1] | WIRE HARNESS | KOB |
| 28. | 2479U371S28 | [1] | AIR FILTER | KOB |
| 29. | 2479U371S29 | [1] | WIRE HARNESS | KOB |
| 30. | 2479U371S30 | [1] | PLATE | KOB |
| 31. | 2479U371S31 | [1] | LABEL | KOB |
