神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-027) - LIGHT ASSY, ROTARY (FOR ALASKA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
758 次

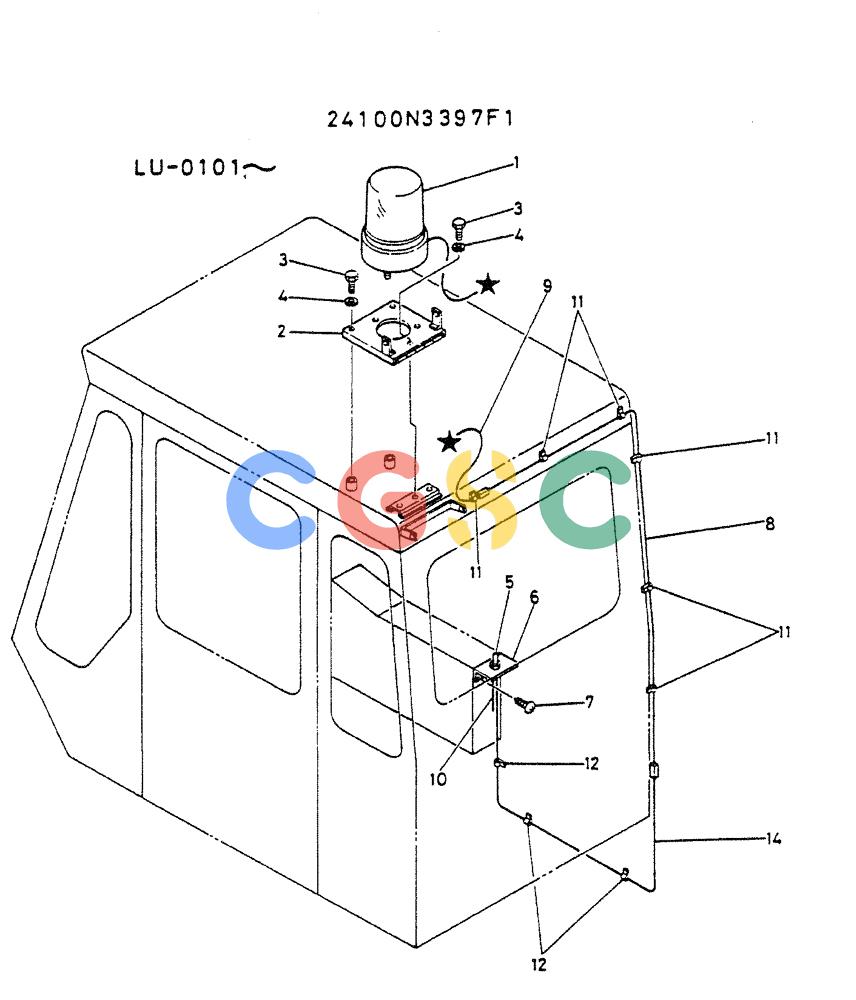

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3397F1 | [1] | LIGHT LIGHT ASSY, ROTARY (FOR CANADA) | LIGHT LIGHT ASSY, ROTARY (FOR CANADA) |
| 1. | 2479R519 | [1] | LIGHT | KOB |
| 2. | 2416P7232 | [1] | SUPPORT | |
| 3. | ZS16C08016 | [1] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 4. | ZW26X08000 | [5] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 5. | 2479Z849 | [1] | SWITCH | KOBTOGGLE Superseded by part number: 2479Z514 |
| 6. | 2416T11971 | [1] | PLATE | |
| 7. | ZS32T50008 | [4] | SCREW | KOBM05x08mm Self-Taper |
| 8. | 2479Z1140 | [1] | HARNESS | |
| 9. | 2479Z1141 | [1] | HARNESS | |
| 10. | 2479Z851 | [1] | HARNESS | |
| 11. | 2432Z309D2 | [6] | CLAMP | KOB |
| 12. | 2432Z290D3 | [3] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 14. | 2479Z1142 | [1] | HARNESS | |
