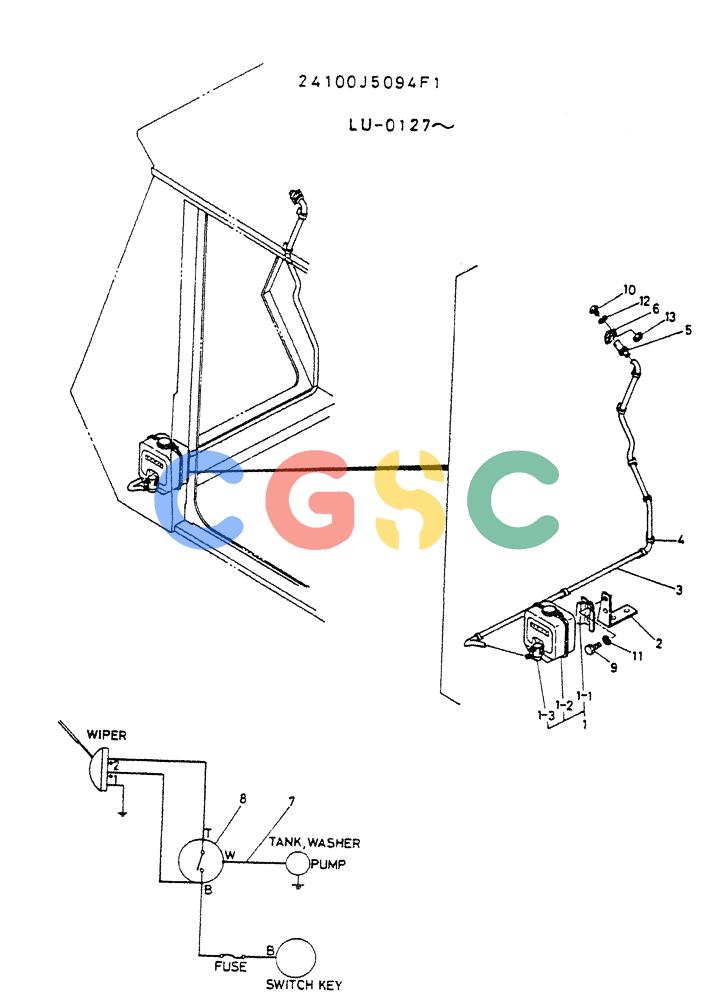

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5054F1 | [1] | WASHER ASSY, WINDOW (FOR CANADA) | |
| 1. | 24100U157F1 | [1] | TANK | KOB Superseded by part number: YT54C00003F1 |
| 2. | 2416P7292 | [1] | BRACKET | KOB |
| 3. | 2416Z633 | [1] | TUBE | |
| 4. | 2432Z309D1 | [8] | CLAMP | KOB |
| 5. | 24100R43 | [1] | NOZZLE | KOB |
| 6. | 24100R37 | [1] | NOZZLE HOLDER | KOB |
| 7. | 2479R535 | [1] | WIRE HARNESS | KOB |
| 8. | 2479U237F1 | [1] | SWITCH ASSY | KOBWIPER |
| 9. | ZS16C06016 | [2] | SCREW | KOBM06x1.0x16mm |
| 10. | ZS31C04012 | [2] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOBM04x0.7x12mm |
| 11. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 12. | ZW26X04000 | [2] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 12. | ZN16C04003 | [2] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| 14. | 2432Z327 | [1] | PLATE | KOBPLATE, CAUTION |
