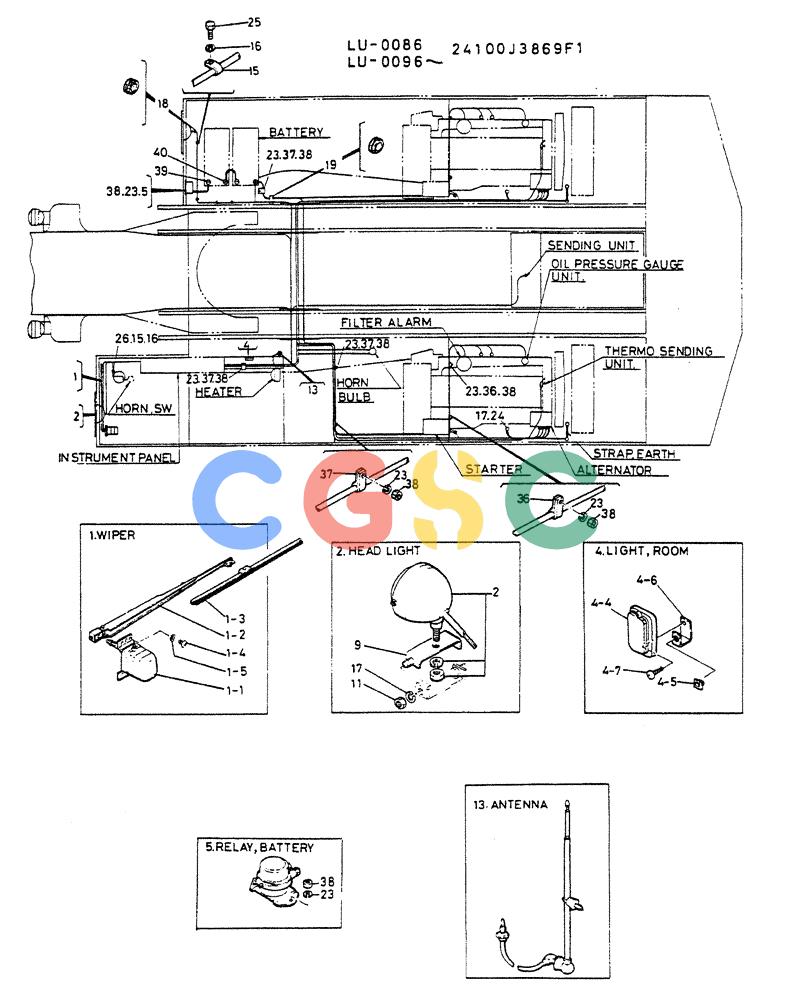

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-030) - INSTAL, ELEC WIRE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J3869F1 | [1] | INSTAL, ELEC.WIRE | |
| 1. | B00P0001F1 | [1] | WIPER | KOB |
| 1-1. | R79P0020D1 | [1] | WIPER MOTOR | KOBMOTOR, WIPER Superseded by part number: 2456R8D25 |
| 1-2. | R79P0022 | [1] | WIPER ARM | KOBARM,WIPER |
| 1-3. | R79P0021 | [1] | WIPER BLADE | KOBBLADE Superseded by part number: 2488Z8D3 |
| 1-4. | ZS31C06010 | [6] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 1-5. | ZW22X06000 | [6] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 2. | 2456R123 | [4] | LIGHT | KOB |
| 4. | 2456R117F2 | [1] | LIGHT | KOBROOM |
| 4-4. | 4056R4F1 | [1] | LAMP | KOBLIGHT |
| 4-5. | 2456R117S5 | [1] | SWITCH | KOB |
| 4-6. | 2456R117S6 | [1] | BRACKET | |
| 4-7. | ZS41C04008 | [1] | CAPSCREW,M4 x 8mm | KOBSCREW M04x0.7x08mm |
| 5. | 2479U142 | [1] | RELAY | KOBBATTERY |
| 9. | B16T0081 | [2] | BRACKET | |
| 11. | ZN11C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 13. | R79P0076 | [1] | FRONT LAMP ANTENNA, Serial Range: LU.0086--LU0096-C | FRONT LAMP ANTENNA, Serial Range: LU.0086--LU0096-C |
| . . | 2479U255 | [1] | ANTENNA | KOBANTENNA, Start Serial: LU.0146- |
| 15. | 2432Z270 | [8] | CLAMP | KOB |
| 16. | ZW22X06000 | [6] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 17. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 18. | R16T0063D3 | [1] | GROMMET | KOB |
| 19. | R16T0063D9 | [1] | GROMMET | |
| 23. | ZW22X08000 | [12] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 24. | ZS11C10025 | [4] | CAP,Hex, M10 x 25mm, Cl 4.8 | KOBScrew -- M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 25. | ZS31C06016 | [6] | SCREW,Phillips Drive, Pan HD, M6 x 16mm | KOBM06x1.0x16mm |
| 26. | ZS11C06010 | [2] | CAPSCREW M06x1.0x10mm | CAPSCREW M06x1.0x10mm |
| 36. | R16P0036D11 | [4] | CLAMP | |
| 37. | R16P0036D16 | [5] | CLAMP | |
| 38. | ZN11C08007 | [12] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
| 39. | 2487Z11 | [2] | COVER | KOB, Start Serial: LU.0312- |
| 40. | 2487Z11D2 | [2] | COVER | KOB, Start Serial: LU.0312- |
