| Pos. | Part No | Qty | Parts name | Comments |
|---|

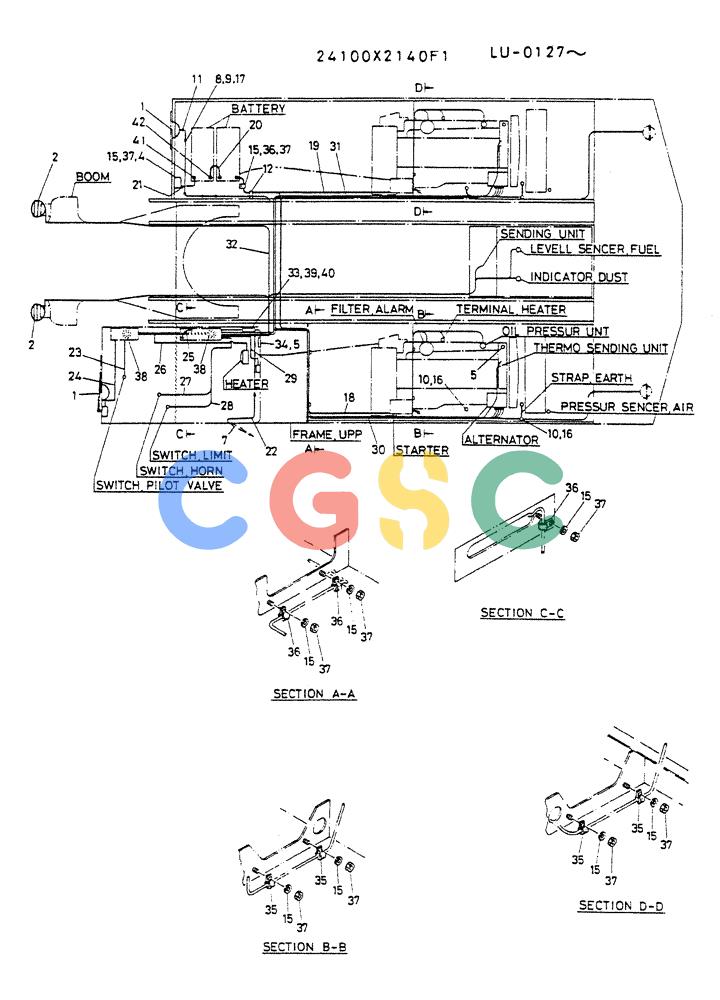

| . . | 24100X2140F1 | [1] | INSTAL, ELEC WIRE | |
| 1. | 2456R123D3 | [2] | LIGHT | KOBLIGHT,WORK |
| 2. | 2456R123D2 | [2] | LIGHT | KOBWORK Superseded by part number: 2456R123D3 |
| 3. | ZS32T40025 | [4] | SCREW, TAPPING M04x25mm Self-Taper | SCREW, TAPPING M04x25mm Self-Taper |
| 4. | 2479U142 | [1] | RELAY | KOBBUTTERY |
| 5. | 2479Z1292 | [2] | SWITCH | |
| 6. | ZN18C10008 | [4] | NUT | KOBM10x1.50mm |
| 7. | 2479U255 | [1] | ANTENNA | KOBANTENNA |
| 8. | 2432Z270 | [5] | CLAMP | KOB |
| 9. | ZW26X06000 | [6] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 10. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 11. | R16T0063D3 | [1] | GROMMET | KOB |
| 12. | R16T0063D9 | [1] | GROMMET | |
| 13. | 2432Z186D1 | [6] | CLIP BAND | CLIP BAND |
| 14. | 2432Z187 | [6] | RING, CLIP BAND | RING, CLIP BAND |
| 15. | ZW26X08000 | [12] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 16. | ZS18C10025 | [9] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 17. | ZS31C06016 | [6] | SCREW,Phillips Drive, Pan HD, M6 x 16mm | KOBM06x1.0x16mm |
| 22. | 2479R656 | [1] | WIRE HARNESS | KOBCODE |
| 33. | 2479U230D1F1 | [1] | RADIO | RADIO |
| 34. | 2479U244 | [1] | SPEAKER | KOB |
| 35. | R16P0036D11 | [4] | CLAMP | |
| 36. | R16P0036D16 | [4] | CLAMP | |
| 37. | ZN18C08007 | [9] | NUT | KOBM08x1.25mm |
| 38. | 2420Z699 | [2] | GROMMET | KOB |
| 39. | 2416P2954 | [1] | BRACKET | BRACKET |
| 40. | ZS31C06010 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 41. | 2487Z11 | [2] | COVER | KOB |
| 42. | 2487Z11D2 | [2] | COVER | KOB |
