神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (07-032) - LIGHT ASY, ENGINE-ROOM (FOR NORWAY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
731 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

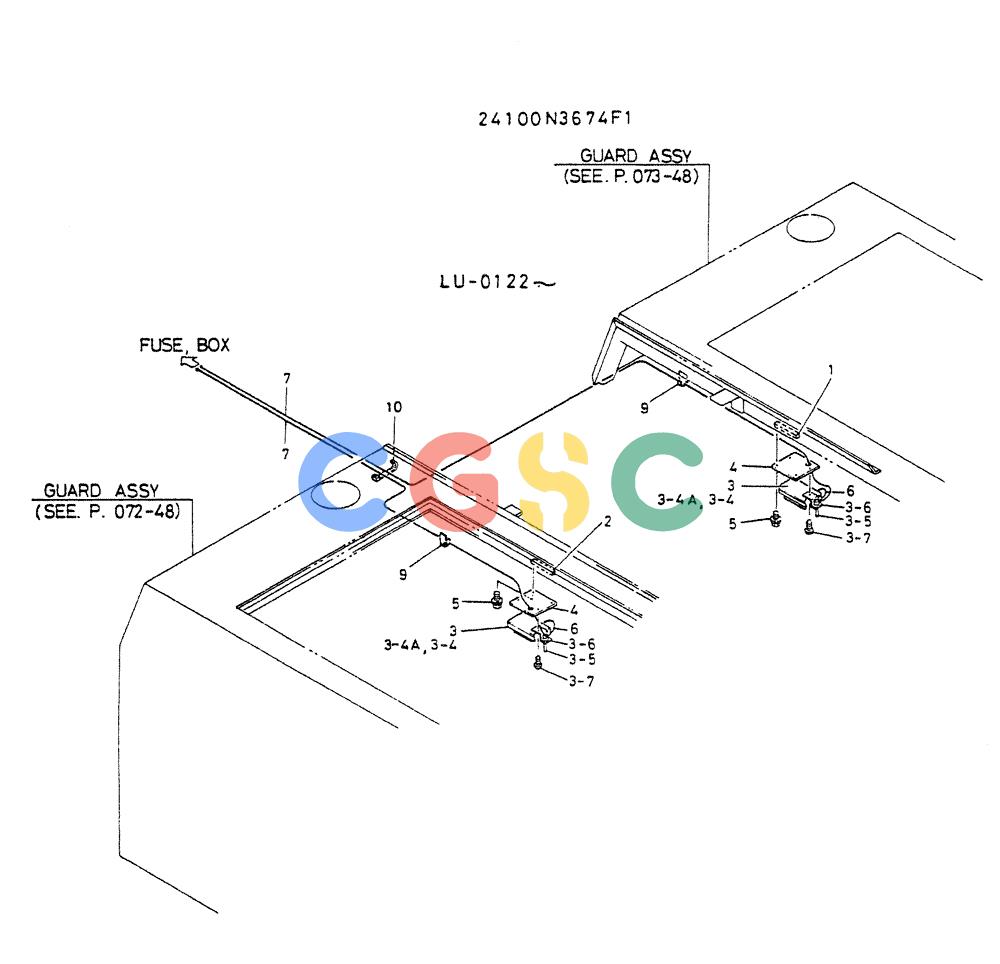

| . . | 24100N3674F1 | [1] | LIGHT ASSY, ENGINE-ROOM (FOR NORWAY) | |
| 1. | 2414P4495 | [1] | REWORK,GUARD | |
| 2. | 2414P4496 | [1] | REWORK,GUARD | |
| 3. | 2456R117F2 | [2] | LIGHT | KOBASSY |
| 3-4. | 4056R4F1 | [1] | LAMP | KOBLIGHT ASSY |
| 3-4A. | 4056Z19D1 | [1] | LIGHT | KOBLIGHT |
| 3-5. | 2456R117S5 | [1] | SWITCH | KOB |
| 3-6. | 2456R117S6 | [1] | BRACKET | |
| 3-7. | ZS41C04008 | [2] | CAPSCREW,M4 x 8mm | KOBSCREW M04x0.7x08mm |
| 4. | 2418P13735 | [2] | PLATE | |
| 5. | ZM11C06012 | [4] | SCREW | KOB |
| 6. | 2479Z761 | [2] | HARNESS | KOB |
| 7. | 2479Z85201 | [2] | HARNESS | |
| 9. | 2432Z309D2 | [10] | CLAMP | KOB |
| 10. | 2432Z290D2 | [5] | CLIP | KOBWire Ties -- 100mm Long Superseded by part number: YT50C01100P1 |
