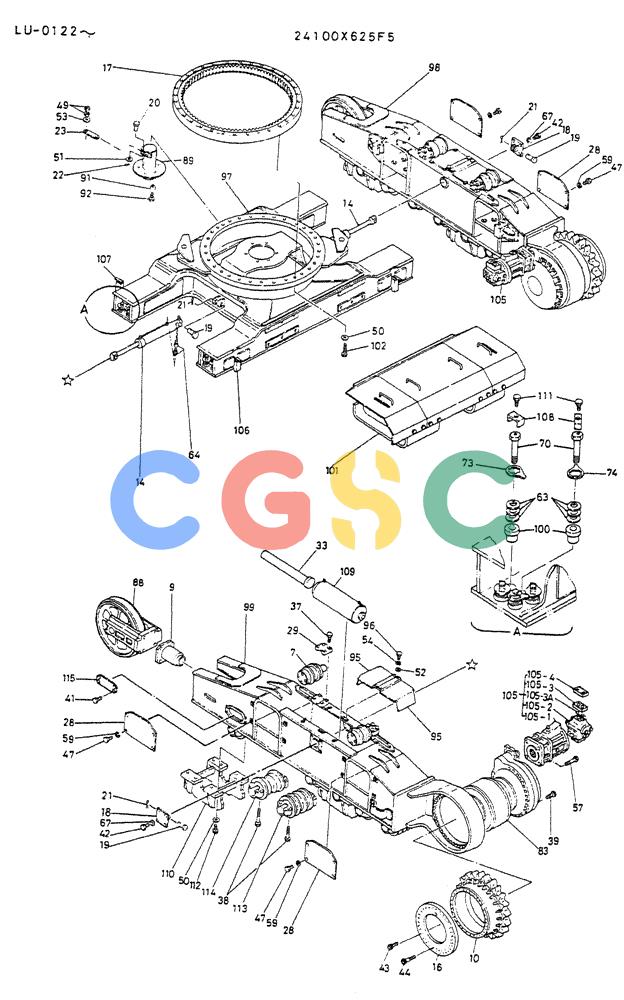

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (06-002) - INSTAL, LOW (FOR NORWAY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
975 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X625F5 | [1] | INSTAL,LOW (FOR NORWAY) | |
| 7. | 24100J1849F1 | [4] | ROLLER | KOBP.209-01 |
| 9. | 24100N1103F1 | [2] | CYLINDER ASSYP.213-01 | |
| 10. | 2404J116 | [2] | SPROCKET | KOBSPROCKET |
| 14. | 2438U376F1 | [2] | CYLINDER | KOB |
| 16. | 2418N1123 | [2] | COUPLING | |
| 17. | 2425U126 | [1] | RING, SLEWING BEARING | RING, SLEWING BEARING |
| 18. | 2416P3699 | [2] | BRACKET | |
| 19. | ZP45X35095 | [4] | PIN | |
| 20. | B19T0001 | [1] | PIN | |
| 21. | ZP15D08045 | [4] | COTTER-PIN | |
| 22. | ZP15D05030 | [1] | BASE PLATE Pin, Cotter | BASE PLATE Pin, Cotter |
| 28. | 2414T949 | [4] | COVER | |
| 29. | 2416T4659 | [4] | CLAMP | |
| 33. | 2420T2973 | [2] | ROD | ROD |
| 37. | ZS13C24090 | [16] | SCREW | KOB |
| 38. | ZS13C24120 | [56] | SCREW | KOBM24x3.0x120mm |
| 39. | ZS23C24130 | [36] | CAPSCREW M24x3.0x130mm | CAPSCREW M24x3.0x130mm |
| 41. | ZS12C16030 | [8] | SCREW,Hex, M16 x 30mm | KOBM16x2.0x30mm |
| 42. | ZS13C16035 | [8] | SCREW | KOBM16x2.0x35mm |
| 43. | ZS23C16045 | [64] | CAP,Hex Socket Head, M16 x 45mm | KOBScrew -- M16x2.0x45mm |
| 44. | ZS23C16070 | [64] | SCREW,Hex Socket Head, M16 x 70mm | KOBM16x2.0x70mm |
| 47. | ZS12C12020 | [16] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 49. | ZN11C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 50. | R16T0152D4 | [36] | WASHER | KOBFlat -- ID 24 x OD 44 x Th 4.5mm |
| 51. | ZW11X16000 | [1] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 52. | ZW11X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 53. | ZW11X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 54. | ZW22X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 57. | ZS13C20190 | [8] | CAPSCREW | |
| 59. | ZW22X12000 | [16] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 63. | 2417Z181 | [1] | SPRING | KOB |
| 64. | 2444Z1779 | [4] | ADAPTER | ADAPTER |
| 67. | ZW11X16000 | [8] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 70. | 2420T3443 | [20] | SCREW | KOB |
| 73. | 2418P5238 | [12] | PLATE | KOB |
| 74. | 2418P5239 | [8] | PLATE | KOB |
| 83. | 24100X419F5 | [2] | REDUCTION UNIT P.217-01 | |
| 88. | 24100J1813F2 | [2] | IDLER | KOBP.203-01 |
| 89. | 2436U259F2 | [1] | JOINT,SWIVEL | |
| 91. | 2418T6689 | [6] | SPACER | |
| 92. | ZS12C16055 | [6] | SCREW,Hex, M16 x 55mm | KOBM16x2.0x55mm |
| 95. | 2414T1426 | [4] | COVER | |
| 96. | ZS12C10018 | [8] | CAPSCREW | |
| 97. | 2422X466 | [1] | CARBODY | |
| 96. | 2422J1007D1 | [1] | FRAME, CRAWLER | |
| 99. | 2422J1007D2 | [1] | FRAME, CRAWLER | |
| 100. | 2418T7205 | [20] | SPACER | SPACER |
| 101. | 24100J1892F2 | [1] | COVER ASSY P.223-01 | |
| 102. | ZS13C24100 | [36] | SCREW | KOBCAPSCKEW |
| 105. | 2441U359F1 | [2] | HYDRAULIC MOTOR | KOB |
| 105-1. | 2441U285F2 | [1] | MOTOR ASSY | |
| 105-2. | 2436U649F1 | [1] | VALVE, BRAKE | |
| 105-3. | 2418R194 | [1] | PLATE, SUB | |
| 105-3A. | 2436R418S9 | [2] | O-RING | O-RING |
| 105-4. | 2436R418F1 | [1] | VALVE, SHUTTLE | VALVE, SHUTTLE |
| 106. | 2419T2937D1 | [2] | PIN | PIN |
| 107. | 2419T2937D2 | [2] | PIN | PIN |
| 108. | 2416T8552 | [20] | BRACKET | |
| 109. | 24100N1102F | [2] | SPRING ASSY, TRACK P.211-01 | |
| 110. | 2414P2494V | [4] | GUIDE, CRAWLER TRACK | |
| 111. | ZS13C12030 | [20] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 112. | ZS13C24070 | [32] | SCREW | KOBM24x3.0x70mm |
| 113. | 24100J1848F9 | [8] | ROLLER ASSY P.205-01 A | ROLLER ASSY P.205-01 A |
| 114. | 24100J1848F10 | [6] | ROLLER ASSY P.206-01 A | ROLLER ASSY P.206-01 A |
| 115. | 2414T3197 | [2] | COVER | |
