神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (06-003) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
558 次

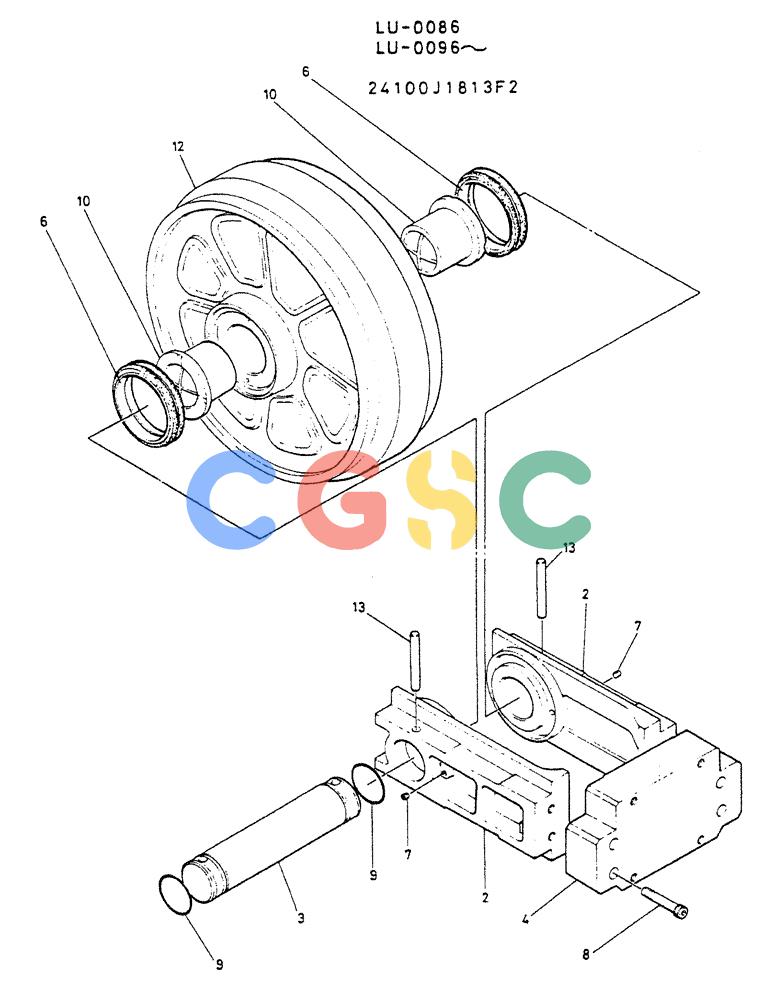

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1813F2 | [1] | IDLER | KOB |
| 2. | 2416J405 | [2] | BLOCK | BLOCK |
| 3. | 2410P475 | [1] | SHAFT | SHAFT |
| 4. | 2418P3665 | [1] | PLATE | |
| 6. | R45P0018D18 | [2] | SEAL | KOBFLOATING Superseded by part number: ZD58F17838 |
| 7. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 8. | ZS23C20110 | [4] | SCREW,Hex Socket Head, M20 x 110mm | KOBM20x2.5x110mm |
| 9. | ZD12G10500 | [2] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOBID 14.80 ± 0.20 x OD 19mm |
| 10. | 2405T684 | [2] | BUSHING | BUSHING |
| 12. | 2413J240 | [1] | IDLER | IDLER |
| 13. | 2419T2669D1 | [2] | PIN | KOBOD 20 x 157mm Long |
