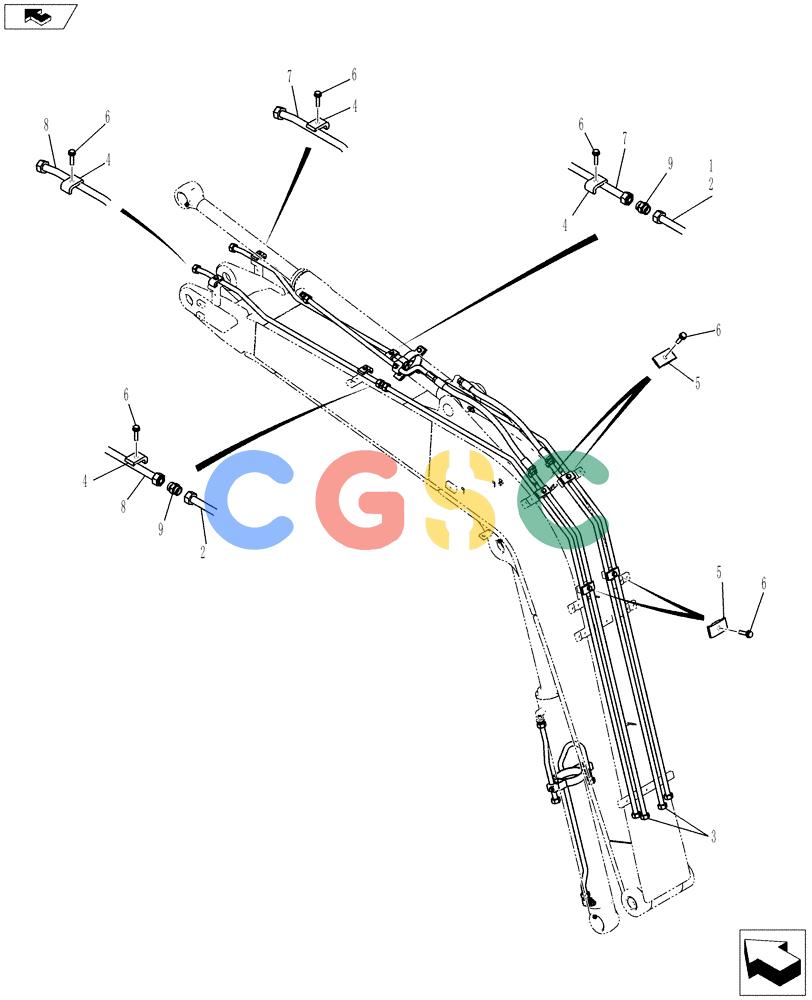

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (03-007[01]) - HYDRAULIC LINES, BOOM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF42H00017F1 | [1] | Boom | |
| 1. | LF42H00011F1 | [1] | PIPE | KOBHyd. Lines, Boom |
| 2. | LF42H01057P1 | [2] | TUBE | KOB |
| 3. | LF42H01048P1 | [2] | TUBE | KOB |
| 4. | ZC26X22011 | [4] | CLAMP | KOB |
| 5. | ZC36X22011 | [4] | CLAMP | KOB |
| 6. | ZM73C10045 | [8] | BOLT,M10x45mm - Course Thread | KOBSems |
| 7. | YT42H01457P1 | [1] | TUBE | KOB |
| 8. | YT42H01458P1 | [1] | TUBE | KOB |
| 9. | ZA23B22000 | [2] | HYD CONNECTOR | KOB |
