纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (03-007[02]) - HYDRAULIC LINES, BOOM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
446 次

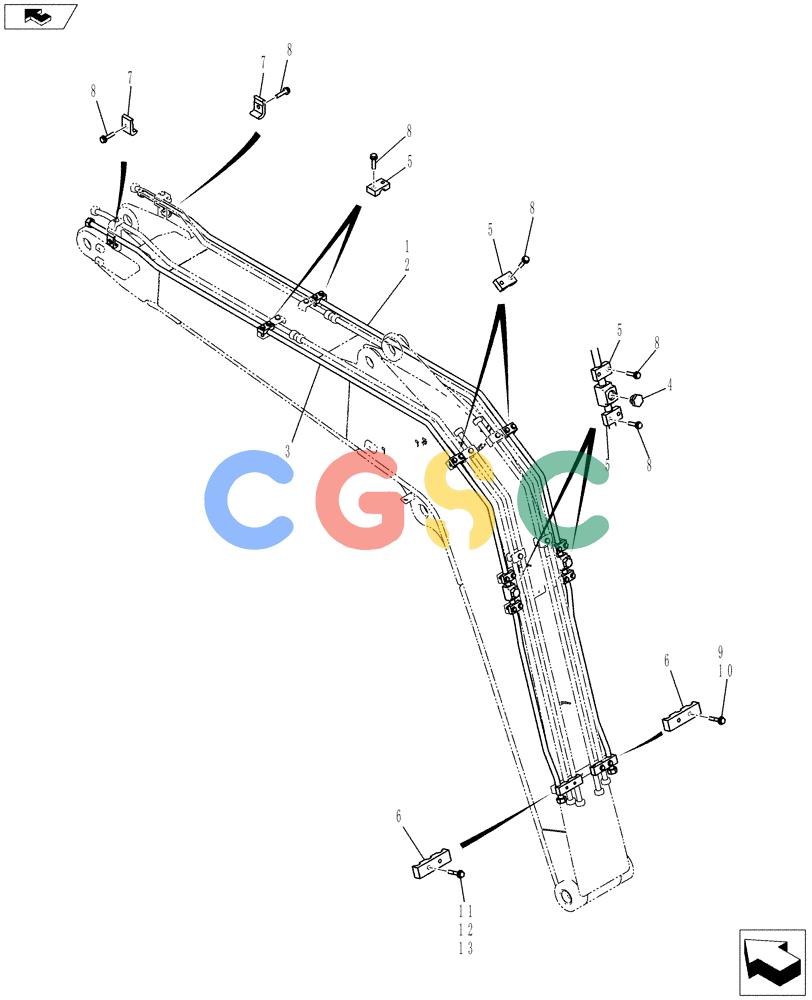

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LF42H00012F1 | [1] | PIPE | KOBHyd. Lines, Boom |
| 2. | LF42H01050P1 | [1] | TUBE | KOB |
| 3. | LF42H01051P1 | [1] | TUBE | KOB |
| 4. | ZE72X12000 | [2] | PLUG | KOB |
| 5. | YT43H01116P1 | [8] | CLAMP | KOB |
| 6. | LF42H01017P1 | [2] | CLAMP | KOB |
| 7. | ZC26X22011 | [2] | CLAMP | KOB |
| 8. | ZM73C10045 | [18] | BOLT,M10x45mm - Course Thread | KOBSems |
| 9. | ZS18C10055 | [2] | SCREW,Hex, M10 x 55mm | KOBCap |
| 10. | ZW16H10000 | [2] | WASHER | KOB |
| 11. | LF42H00020F1 | [1] | Boom | |
