神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (06-015) - INSTAL CRAWLER TRACK P/N 24100P438F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
664 次

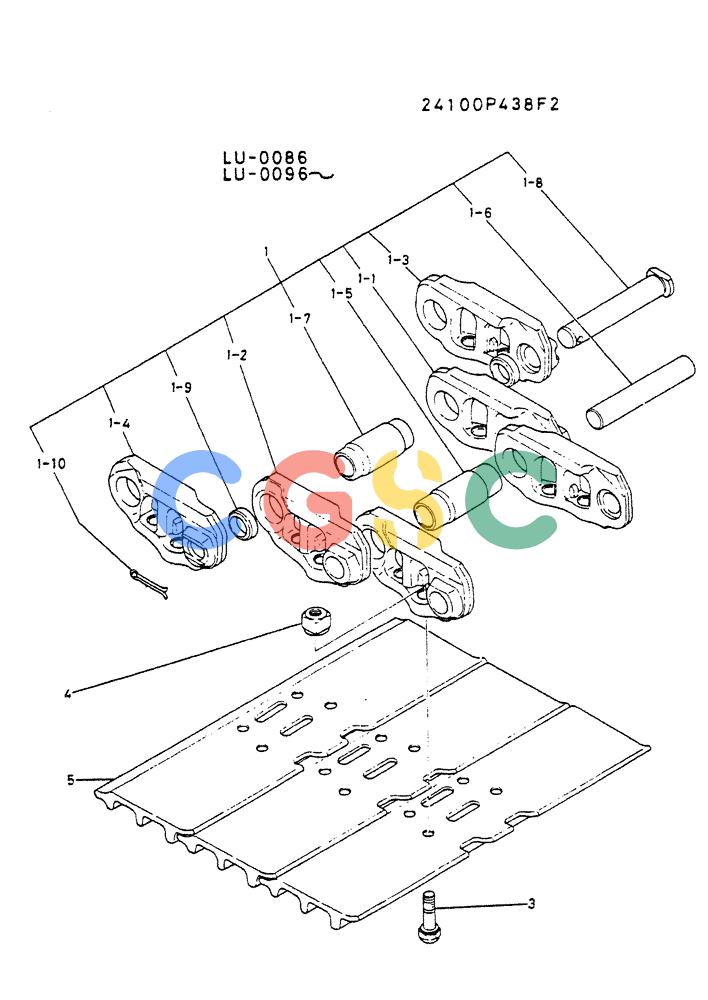

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P438F2 | [1] | TRACK LINK ASSY INSTAL,CRAWLER | TRACK LINK ASSY INSTAL,CRAWLER |
| 1. | 24100N1124F1 | [2] | CRAWLER TRACK ASSY | KOB |
| 1-1. | 2424J127D1 | [47] | TRACK-L1NK | |
| 1-2. | 2424J127D2 | [47] | TRACK-LINK | |
| 1-3. | 2424J128D1 | [1] | TRACK LINK | KOB |
| 1-4. | 2424J128D2 | [1] | TRACK LINK | KOB |
| 1-5. | 2405P221 | [47] | BUSHING | KOB Superseded by part number: 2405P221C2 |
| 1-6. | 2419P891 | [47] | PIN | KOB |
| 1-7. | 2405P222 | [1] | BUSHING | KOB Superseded by part number: 2405P222C2 |
| 1-8. | 2419P892 | [1] | PIN | KOB |
| 1-9. | 2418T4682 | [2] | COLLAR | KOB |
| 1-10. | 2419T1884 | [1] | PIN,10mm OD | KOB |
| 3. | 2420T2782 | [384] | BOLT | KOB |
| 4. | 2420T2783 | [384] | NUT | KOB |
| 5. | 2424N108D2 | [96] | SHOE, 700 | SHOE, 700 |
