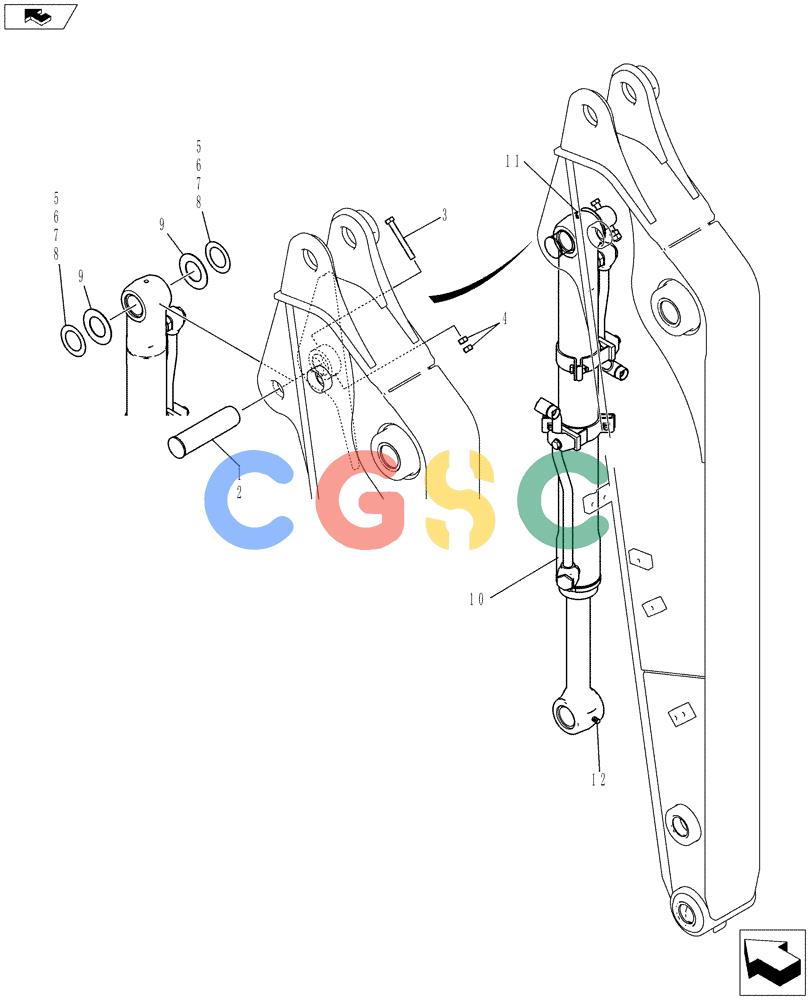

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (03-031[01]) - BUCKET CYLINDER INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT12B00122F1 | [1] | Bucket | |
| 2. | YT12B01020P1 | [1] | PIN | KOB |
| 3. | HS18C12100G2 | [1] | SCREW | KOBCap |
| 4. | ZN18C12010 | [2] | NUT | KOB |
| 5. | B16T0442D54 | [1] | SHIM,52mm ID x 80mm OD x 0.5mm Thk | KOB |
| 6. | B16T0442D41 | [1] | SHIM,80mm OD x 52mm ID x 0.9mm Thk | KOB |
| 7. | B16T0442D25 | [1] | SHIM,80mm OD x 52mm ID x 1.2mm Thk | KOB |
| 8. | B16T0442D23 | [1] | SHIM,80mm OD x 52mm ID x 1.6mm Thk | KOB1.6 |
| 9. | YR12B01028P1 | [2] | SHIM | KOB2.0 |
| 10. | YT01V00032F1 | [1] | BUCKET CYLINDER | KOB |
| 11. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| 12. | ZG91U02000 | [1] | LUBE NIPPLE | KOB |
