神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (08-009) - BUCKET ASSY, RIPPER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
309 次

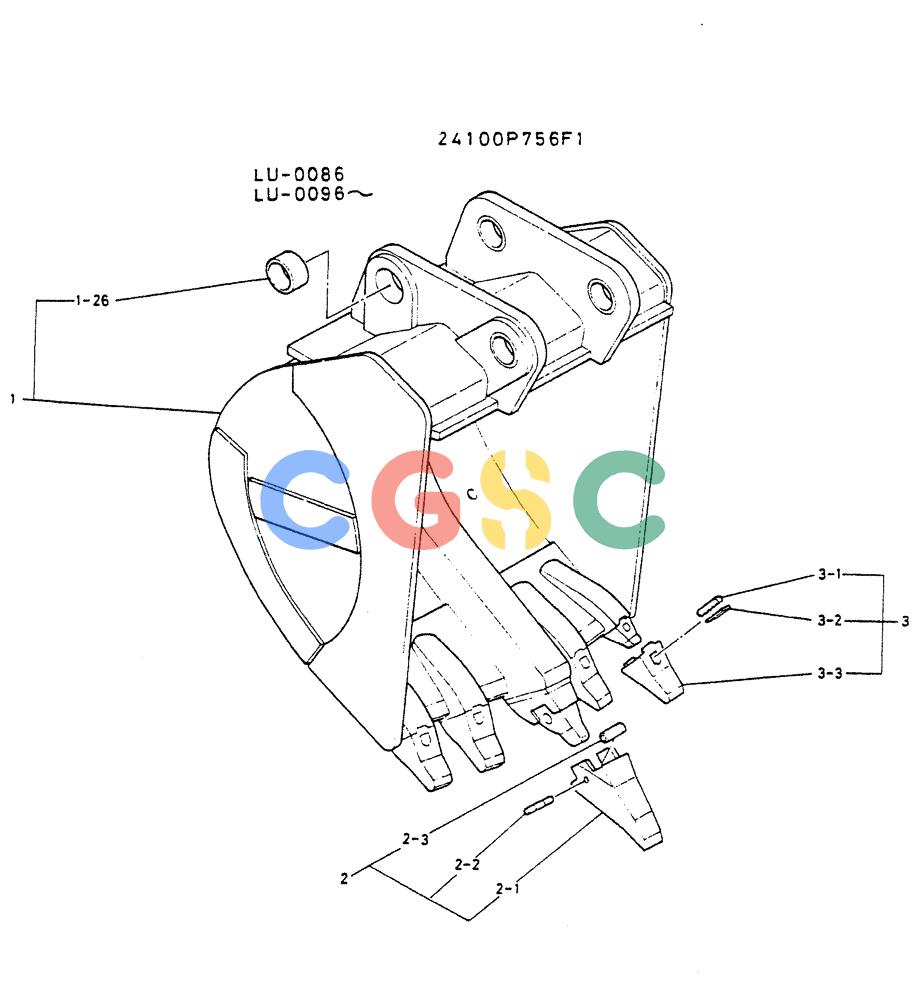

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P756F1 | [1] | BUCKET ASSY, RIPPER | |
| 1. | 2412X242F1 | [1] | BUCKET, RIPPER | |
| 1-26. | 2405T704 | [4] | BUSHING | BUSHING |
| 2. | 2412U35F1 | [4] | TOOTH ASSY | |
| 2-1. | 2412U35S1 | [1] | POINT | |
| 2-2. | 2412U35S2 | [1] | PIN | |
| 2-3. | 2412U35S3 | [1] | BUSHING | |
| 3. | 2412U28F1 | [4] | POINT ASSY | |
| 3-1. | 2412U28S1 | [1] | PIN, LOCKING | PIN, LOCKING |
| 3-2. | 2412U28S2 | [1] | SHEAR BOLT RUBBER | SHEAR BOLT RUBBER |
| 3-3. | 2412U28E3 | [1] | POINT | |
