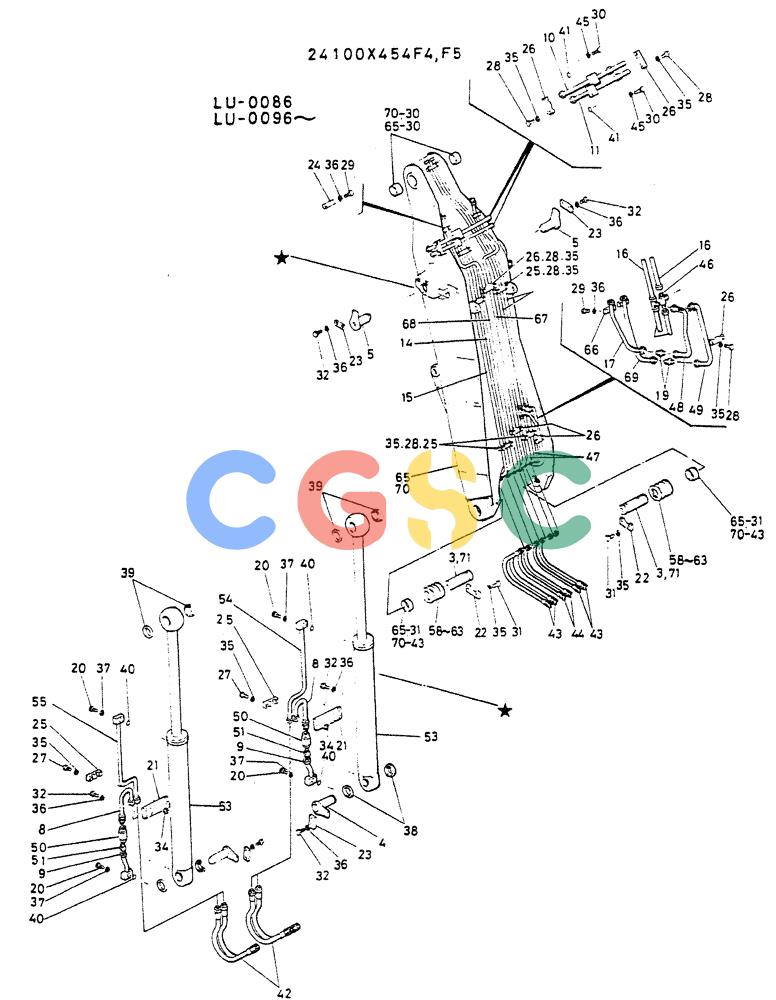

| . . | 24100X454F4 | [1] | BOOM ASSY, Start Serial: LU.0086,0096- | |
| . . | 24100X454F5 | [1] | BOOM ASSY, Start Serial: LU.0108 | |
| 3. | 2419T1663 | [2] | PIN PIN, Start Serial: LU.0086,0096- | PIN PIN, Start Serial: LU.0086,0096- |
| 4. | B19T0031 | [2] | PIN | PIN |
| 5. | B19T0058 | [2] | PIN | PIN |
| 8. | 2418P3903 | [2] | TUBE | TUBE |
| 9. | 2418P3904 | [1] | TUBE | TUBE |
| 10. | 2418P2938 | [1] | TUBE | |
| 11. | 2418P2939 | [1] | TUBE | |
| 14. | 2418N751 | [1] | TUBE | |
| 15. | 2418N750 | [2] | TUBE | |
| 16. | 2418N752 | [1] | TUBE | |
| 17. | 2418P2937 | [2] | | |
| 19. | ZF23B28000 | [2] | HYD CONNECTOR | KOB Superseded by part number: 47641651 |
| 20. | ZS23C14075 | [1] | CAPSCREW,Hex Socket Head, M14 x 75mm | KOBSCREW M14x2.0x75mm |
| 21. | 2416T4244 | [2] | PLATE | |
| 22. | 2418T4060 | [2] | PLATE | PLATE |
| 23. | B16T0006 | [4] | PLATE | PLATE |
| 24. | R16P0035D5 | [2] | CLAMP | |
| 25. | R16P0027D4 | [8] | CLAMP | KOB |
| 26. | R16P0027D3 | [5] | CLAMP | |
| 27. | ZS18C16080 | [4] | SCREW,Hex, M16 x 80mm | KOBM16x2.0x80mm |
| 28. | ZS18C16070 | [22] | SCREW,Hex, M16 x 70mm | KOBM16x2.0x70mm |
| 29. | ZS18C12060 | [6] | SCREW,Hex, M12 x 60mm | KOBM12x1.75x60mm |
| 30. | ZS18C12065 | [8] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 31. | ZS18C16035 | [4] | SCREW,Hex, M16 x 35mm | KOBM16x2.0x35mm |
| 32. | ZS18C12030 | [16] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 34. | ZN18C16013 | [4] | NUT | KOBM16x2.0mm |
| 35. | ZW16X16000 | [30] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 36. | ZW16X12000 | [22] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 37. | ZW26K14000 | [16] | LOCK WASHER | KOBID 14 x OD 21.8 x Th 3.5mm |
| 38. | R16T0227D2 | [4] | SPACER | SPACER |
| 39. | R16T0227D3 | [4] | SPACER | KOB |
| 40. | ZD12P03800 | [4] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 41. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 42. | ZX58N16120 | [4] | HOSE | KOB1200mm Long (47-1/4in) |
| 43. | ZX28N16120 | [4] | HOSE | KOB Superseded by part number: ZX58N16120 |
| 44. | ZX28N12120 | [2] | HOSE | HOSE |
| 45. | ZW26K12000 | [8] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 46. | 2444Z1773 | [2] | TEE | |
| 47. | 2418P3865 | [2] | TUBE | |
| 48. | 2418P3866 | [1] | TUBE | |
| 49. | 2418N976 | [1] | TUBE | |
| 50. | 2436R287 | [2] | HYDRAULIC VALVE | KOB |
| 51. | ZF23E35020 | [4] | HYD CONNECTOR | KOB |
| 53. | 2438U360F2 | [1] | CYLINDER | |
| 54. | 2418N1039D1 | [1] | TUBE | TUBE |
| 55. | 2418N1039D2 | [1] | TUBE | TUBE |
| 57. | 24100X471F1 | [1] | LUB ASSY P.509-01 | |
| 58. | 2420T2571D3 | [2] | SHIM,123mm ID x 180mm OD x 1.2mm Thk | KOBID 123 x OD 180 x Th 1.2mm |
| 59. | 2420T2571D4 | [2] | SHIM,123mm ID x 180mm OD x 1.6mm Thk | KOBID 123 x OD 180 x Th 1.6mm |
| 60. | 2420T2571D5 | [2] | SHIM,123mm ID x 180mm OD x 2.3mm Thk | KOBID 123 x OD 180 x Th 2.3mm |
| 61. | 2420T2571D6 | [2] | SHIM,123mm ID x 180mm OD x 3.2mm Thk | KOBSHIM,3.2 |
| 62. | 2420T2571D7 | [2] | SHIM SHIM 4.5 | SHIM SHIM 4.5 |
| 63. | 2420T2571D8 | [2] | SHIM, 6.0 SHIM, 6.0 | SHIM, 6.0 SHIM, 6.0 |
| 65. | 2411X615F1 | [1] | BOOM, Serial Range: LU.0056--LU.0107 | |
| 65-30. | B05T0024D2 | [2] | BUSHING, Serial Range: LU.0096-LU.0107 | BUSHING, Serial Range: LU.0096-LU.0107 |
| 65-31. | 2405T607 | [2] | BUSHING, Serial Range: LU.0096-LU.0107 | BUSHING, Serial Range: LU.0096-LU.0107 |
| 66. | ZC27X28012 | [2] | CLAMP | KOBCLAMP Superseded by part number: YN43H01097P1 |
| 67. | 2418N1593D1 | [1] | TUBE | |
| 66. | 2418N1593D2 | [1] | TUBE | |
| 69. | 2418P6463 | [1] | TUBE | |
| 70. | 2411X615F2 | [1] | BOOM, Start Serial: LU.0108- | |
| 70-30. | B05T0024D2 | [1] | BUSHING, Start Serial: LU.0108- | BUSHING, Start Serial: LU.0108- |
| 70-43. | 2405T837 | [1] | BUSHING | KOB, Start Serial: LU.0108- |
| 71. | 2419T4250 | [1] | PIN, Start Serial: LU.0106- | PIN, Start Serial: LU.0106- |
