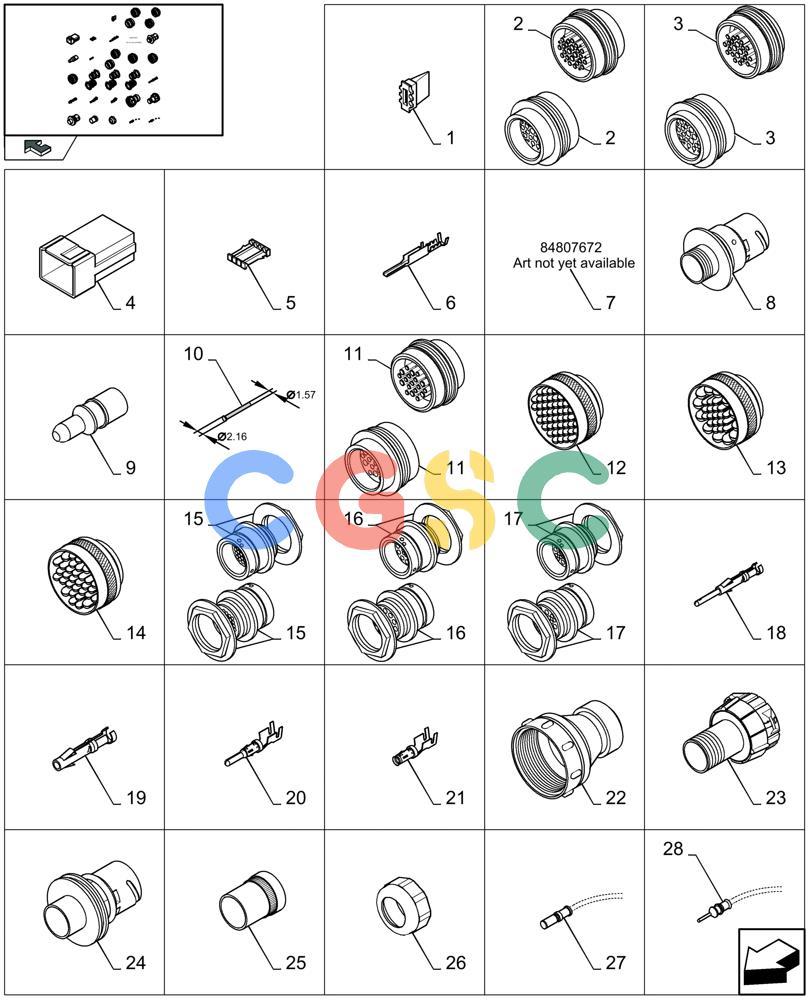

凯斯零件查询(LBX332R) - BIG RECTANGULAR BALER ''ROTOR CUTTER'' (3/03-12/08) (06.99[05]) - CONNECTORS - FROM 84806919 TO 84814865 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84806919
|
[1] |
PLUG,Wedge Lock
|
ZED
|
| 2. |
84807216
|
[1] |
MULTIPOLE CONNECTOR,Female, 29 Pole
|
ZED
Superseded by part number: 87696943
|
| 3. |
84807217
|
[1] |
MULTIPOLE CONNECTOR,Male, 29 Pole
|
ZED
|
| 4. |
84807268
|
[1] |
WIRE CONNECTOR,Male, Pole
|
ZED
|
| 5. |
84807269
|
[1] |
WIRE CONNECTOR
|
ZED
|
| 6. |
84807270
|
[1] |
CABLE TERMINAL,0.8 - 1.00mm
|
ZED
0.8 - 1 MM²
|
| 7. |
84807672
|
[1] |
CABLE TERMINAL
|
ZED
|
| 8. |
84807676
|
[1] |
CONTACT HOUSING
|
ZED
|
| 9. |
84807678
|
[1] |
CABLE TERMINAL
|
ZED
|
| 10. |
84807680
|
[1] |
LOCKING TAB
|
ZED
Superseded by part number: 225055C1
|
| 11. |
84814753
|
[1] |
WIRE CONNECTOR,Female
|
ZED
|
| 12. |
84814754
|
[1] |
CONTACT HOUSING
|
ZED
|
| 13. |
84814755
|
[1] |
CONTACT HOUSING
|
ZED
|
| 14. |
84814756
|
[1] |
CONTACT HOUSING
|
ZED
|
| 15. |
84814757
|
[1] |
CONTACT HOUSING
|
ZED
|
| 16. |
84814758
|
[1] |
CONTACT HOUSING
|
ZED
|
| 17. |
84814759
|
[1] |
CONTACT HOUSING
|
ZED
|
| 18. |
84814761
|
[1] |
CABLE TERMINAL
|
ZED
Superseded by part number: 82862804
|
| 19. |
84814762
|
[1] |
WIRE CONNECTOR
|
ZED
Superseded by part number: 82862801
|
| 20. |
84814763
|
[1] |
CABLE TERMINAL,1.5 - 2.5mm
|
ZED
1.5 - 2.5 MM²
|
| 21. |
84814764
|
[1] |
CABLE TERMINAL
|
ZED
|
| 22. |
84814765
|
[1] |
ADAPTER
|
ZED
|
| 23. |
84814773
|
[1] |
CONTACT HOUSING,Female, 2 Pole
|
ZED
|
| 24. |
84814774
|
[1] |
CONTACT HOUSING
|
ZED
|
| 25. |
84814862
|
[1] |
WIRE CONNECTOR
|
ZED
|
| 26. |
84814863
|
[1] |
WIRE CONNECTOR
|
ZED
|
| 27. |
84814864
|
[1] |
CABLE TERMINAL
|
ZED
|
| 28. |
84814865
|
[1] |
CABLE TERMINAL,10.00 - 16.00mm
|
ZED
|
